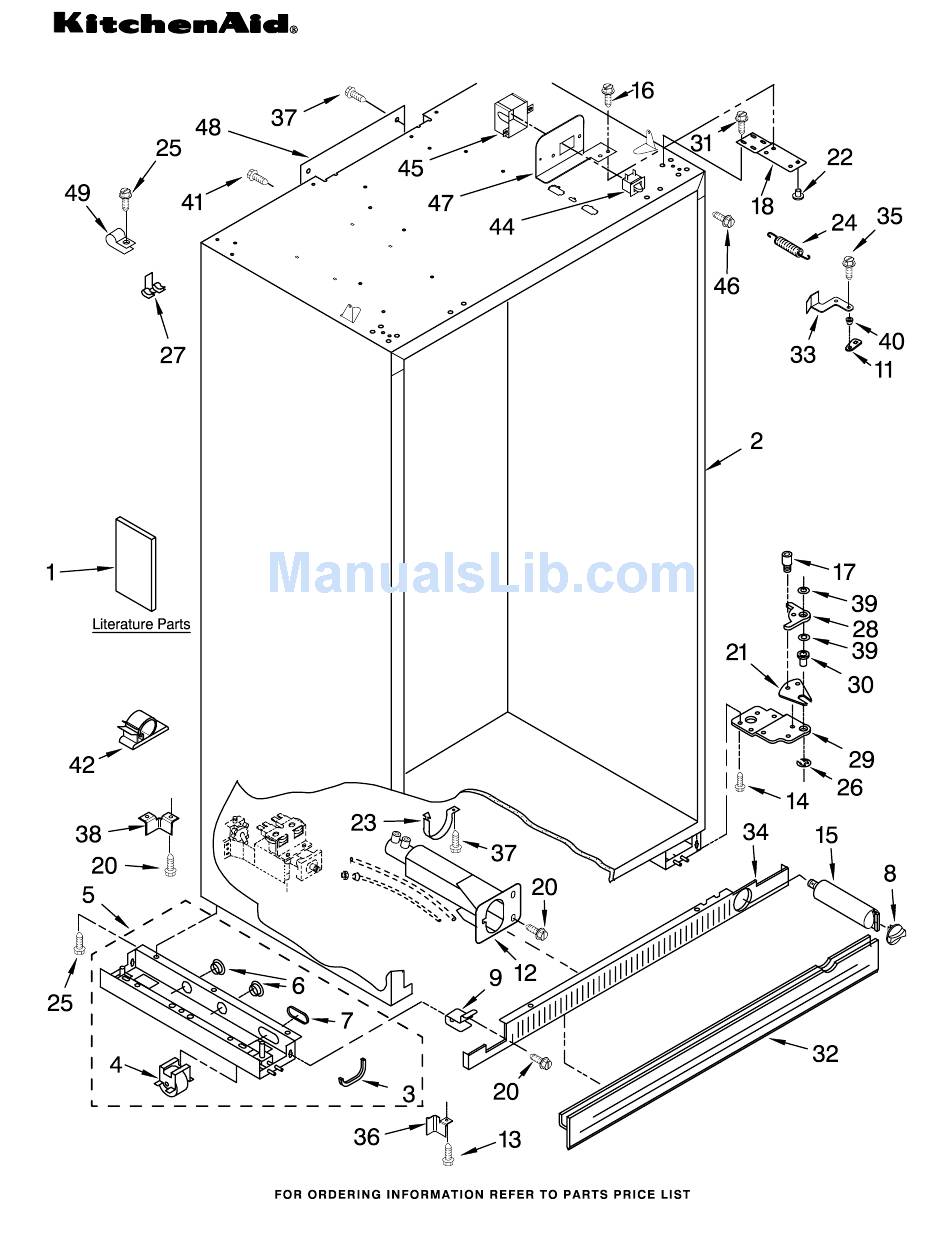

- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: KSSO42FMX01 (Etched Aluminum) 9−05 Litho In U.S.A. (mek) Part No. 8199057...
-
Page 2: Cabinet Parts
CABINET PARTS For Model: KSSO42FMX01 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2209022 Housing, Water Literature Parts 8533913 Screw Filter 2266808 Use & Care Guide Skirt−Grille, 488500 Screw 2306413 Energy Label Bottom 3400525 Screw 2306324 Service & Wiring 2209025B Black 2255709 Filter, Water Extension Arm,... - Page 3 CABINET TRIM PARTS For Model: KSSO42FMX01 (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2257688X Etched Aluminum Screw 8281250 Stainless Steel 2254725 Cabinet, Trim (Bottom) 486194 Screw 2257367 Cabinet, Trim Top Cabinet Trim (Left Side) 2257689X Etched Aluminum 2005925 Seal−Trim, Side 489464 Screw 8199057...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSO42FMX01 (Etched Aluminum) Illus. Part DESCRIPTION 2302868 Solid Shelf 8533929 Screw 2302883 Shelf, Fixed 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266934 Door, Ice 2266955 Spacer, Ice Door 2266931 Ice Bucket 2302871 Cover Shelf 8199057... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSO42FMX01 (Etched Aluminum) 8199057... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSO42FMX01 (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid Baffle, Meat Pan 2302987 Baffle, Control Assembly...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KSSO42FMX01 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2302772 Control Box 2221121 Support, Control 2162085 Socket, Light (2) 2215670 Insert, Control 2255743 Light Bulb (2) 489006 Screw 486194 Screw 2266951 Circuit Board, 2306086 Display Board, 8281185 Screw Housing Control... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSO42FMX01 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Top Grille 487415 Screw 2259420X Grille−Trim, Assembly 2187429 Wire Assembly Right Side 2259423X Etched Aluminum RC/FC Light Switch 2259441X Grille−Trim, Top 2259320 Cover, Unit 2215910 Grommet, Flexible 2259421X Grille−Trim,...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSO42FMX01 (Etched Aluminum) 8199057... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSO42FMX01 (Etched Aluminum) Illus. Part DESCRIPTION 2222592 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2302842 Meat Pan Cover Assembly 2302835 Crisper Cover Assembly 2257611 Trim, Glass 2169935 Cover 2257582 Trim, Glass Rear 2252412 Crisper Pan Slide, Meat Pan 2302955 Right Side 2302954 Left Side...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO42FMX01 (Etched Aluminum) 8199057...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO42FMX01 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2302932 Tube, Vent 2196483 Stud, Shelf (20) 2259385 Fan Motor Block, Fan Scroll 8281158 Screw 2266801 Deflector, Air 2209480 Right Evaporator, 2169142 Fan Blade 2209066 Left...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSO42FMX01 (Etched Aluminum) 8199057... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSO42FMX01 (Etched Aluminum) Illus. Part DESCRIPTION 2252330 Refrigerator Door Panel (Includes Insulation) 2259448X Trim, Screw Cover (Handle Side) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gasket, Bin 2222811 Door Gasket, Magnetic 2259365X Trim, Screw Cover...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSO42FMX01 (Etched Aluminum) 8199057... - Page 16 FREEZER DOOR PARTS For Model: KSSO42FMX01 (Etched Aluminum) Illus. Part DESCRIPTION 2252327 Freezer Door Panel (Includes Insulation) 2259448X Trim, Screw Cover (Handle Side) 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2259365X Trim, Screw Cover (Hinge Side) 2222814 Door Gasket, Magnetic Trim (Handle Side)
- Page 17 UPPER UNIT PARTS For Model: KSSO42FMX01 (Etched Aluminum) 8199057...
- Page 18 UPPER UNIT PARTS For Model: KSSO42FMX01 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2266802 Switch, Power 2224047 Inverter Box 2155774 Wire Tie Disconnect 2252363 Drier 489373 Screw, Compressor 2206036 Motor, Fan 487294 Screw, Ground Mounting (4) 2190685 Blade, Fan 2187900 Wiring Harness, 2223393 Compressor...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSO42FMX01 (Etched Aluminum) 8199057...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSO42FMX01 (Etched Aluminum) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2302929 Side Support 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2259353 Tube, Discharge 2302937 Thermistor 2257639 Clip, Thermistor 2306093 Evaporator...
-
Page 21: Icemaker Parts
ICEMAKER PARTS For Model: KSSO42FMX01 (Etched Aluminum) 8199057... - Page 22 ICEMAKER PARTS For Model: KSSO42FMX01 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2306151 Water Valve 628228 Mold & Heater 2259064 Cover, Fill Tube Mounting Bracket (Also Order 487539 Screw 542638 Silicone 489136 Screw (2) 2187715 Wire Assembly, Grease) 486194 Screw Icemaker...
