- Page 1 CABINET PARTS 48" BUILT IN For Model: KSSC48FMS01 REFRIGERATOR (Stainless Steel) Part No. 8199055 8−05 Litho In U.S.A. (mek)
-

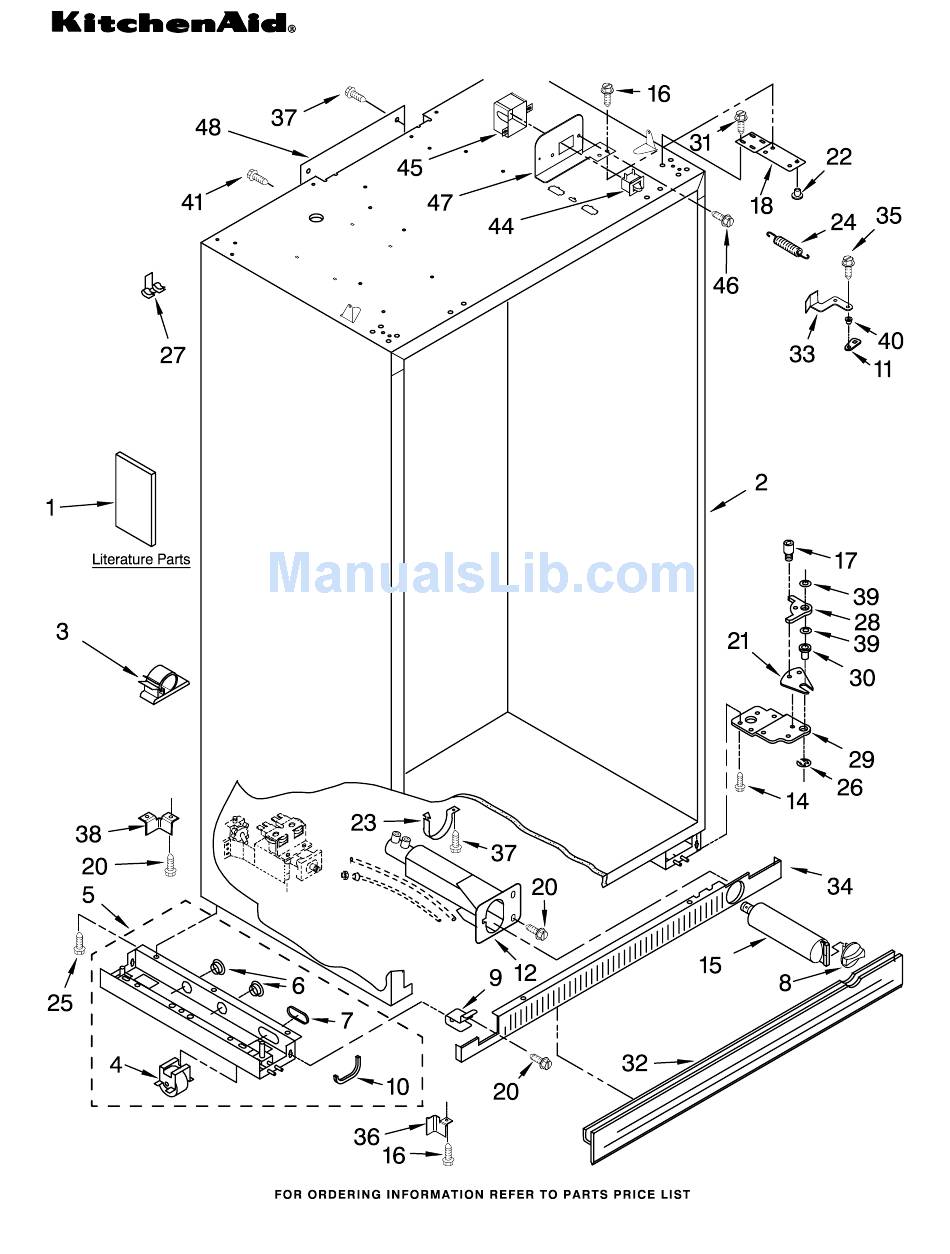

Page 2: Cabinet Parts
2004505 Freezer Side 2005006 Grommet, Wiring 2005007 Grommet, Flexible Cap, Water Filter 2186494B Black 2006442 Mounting Stud, Grill CABINET PARTS For Model: KSSC48FMS01 (Stainless Steel) Illus. Part DESCRIPTION 2005004 Grommet, Crossover Tube 2005783 Cam, Door Closer 2209022 Housing, Water Filter... - Page 3 8199055 CABINET TRIM PARTS For Model: KSSC48FMS01 (Stainless Steel) Illus. Part DESCRIPTION 2222552S Cabinet, Trim (Right Side) 1163283 Screw 2254726 Cabinet, Trim (Bottom) 486194 Screw 2257368 Cabinet, Trim Top 2222553S Cabinet Trim (Left Side) 2005925 Seal−Trim, Side 489464 Screw...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSC48FMS01 (Stainless Steel) Illus. Part DESCRIPTION 2302869 Wire, Shelf 2302872 Cover, Shelf 2302884 Shelf, Fixed 2259083 Basket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266935 Door, Ice 2266932 Bucket, Ice... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSC48FMS01 (Stainless Steel) 8199055... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSC48FMS01 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan...
-
Page 7: Control Panel Parts
8199055 CONTROL PANEL PARTS For Model: KSSC48FMS01 (Stainless Steel) Illus. Part DESCRIPTION 2302773 Control Box 2215670 Insert, Control 2302913 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2221121 Support, Control 489006 Screw (2) 2306086 Display Board, Ingredient Care Center... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC48FMS01 Illus. Part 2257412S Panel, Decorative 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2302974 Cover, Unit Front 487415 Screw 2187429 Wire Assembly 2005292 Badge, Kitchen Aid 489348 Clamp 2004333 Nut 2254759 Bracket, Louver...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSC48FMS01 (Stainless Steel) 8199055... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC48FMS01 (Stainless Steel) Illus. Part DESCRIPTION 2222593 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2302843 Meat Pan Cover Assembly 2302836 Crisper Cover Assembly 2257611 Trim, Glass Rear Side 2169935 Cover, Egg Bin 2257583 Trim, Glass Rear...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC48FMS01 (Stainless Steel) 8199055...
- Page 12 2162085 Socket, Light (2) 488937 Clamp, Nylon 2255743 Light Bulb 2302925 Bracket, Vent Tube 2182120 Scroll, Fan 2259465 Wedge, Air Duct 2302924 Tube, Vent For Model: KSSC48FMS01 (Stainless Steel) Illus. Part DESCRIPTION 2306044 Air Duct 2302851 Support, Air Duct Block, Fan Scroll...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSC48FMS01 (Stainless Steel) 8199055... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSC48FMS01 (Stainless Steel) Illus. Part DESCRIPTION 2252331 Refrigerator Door Panel (Includes Item #9) 2258951 Brace, Door Corner 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222797 Rail, Lid 2222983 Gasket, Utility 2222812 Door Gasket,...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSC48FMS01 (Stainless Steel) 8199055... - Page 16 FREEZER DOOR PARTS For Model: KSSC48FMS01 (Stainless Steel) Illus. Part DESCRIPTION 2252328 Freezer Door Panel (Includes Insulation) 2306398 Plate, Door−Handle 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222810 Door Gasket, Magnetic 2005290 Handle, Door 2306471 Spacer, Door−Skin...
- Page 17 UPPER UNIT PARTS For Model: KSSC48FMS01 (Stainless Steel) 8199055...
- Page 18 2203075 Spacer (5) 2256328 Bracket, Inverter 8281149 Screw 1157158 Screw 2259307 Condenser 943447 Grommet (4) 2187629 Wire, Jumper 487522 Screw UPPER UNIT PARTS For Model: KSSC48FMS01 (Stainless Steel) Illus. Part DESCRIPTION 2155774 Wire Tie 2252363 Drier 2206036 Motor, Fan 2190685 Blade, Fan...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSC48FMS01 (Stainless Steel) 8199055...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSC48FMS01 (Stainless Steel) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2302929 Side Support 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2259354 Tube, Discharge...
-
Page 21: Icemaker Parts
ICEMAKER PARTS For Model: KSSC48FMS01 (Stainless Steel) 8199055... - Page 22 2254709 Valve, Solenoid 2221070 Clamp, Tube 2300104 Cover, Bottom Electrical 2221231 Heat Shield 2208136 Clamp, Nylon Valve ICEMAKER PARTS For Model: KSSC48FMS01 (Stainless Steel) Illus. Part DESCRIPTION 488937 Clamp Tube 2300169 Shut Off Arm 2257538 Cover 2187683 Jumper, Fill Tube Heater 628228 Mold &...
