KitchenAid KSSC48FTS03 Parts List

KitchenAid KSSC48FTS03 Parts List

Stainless steel 48" built in refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

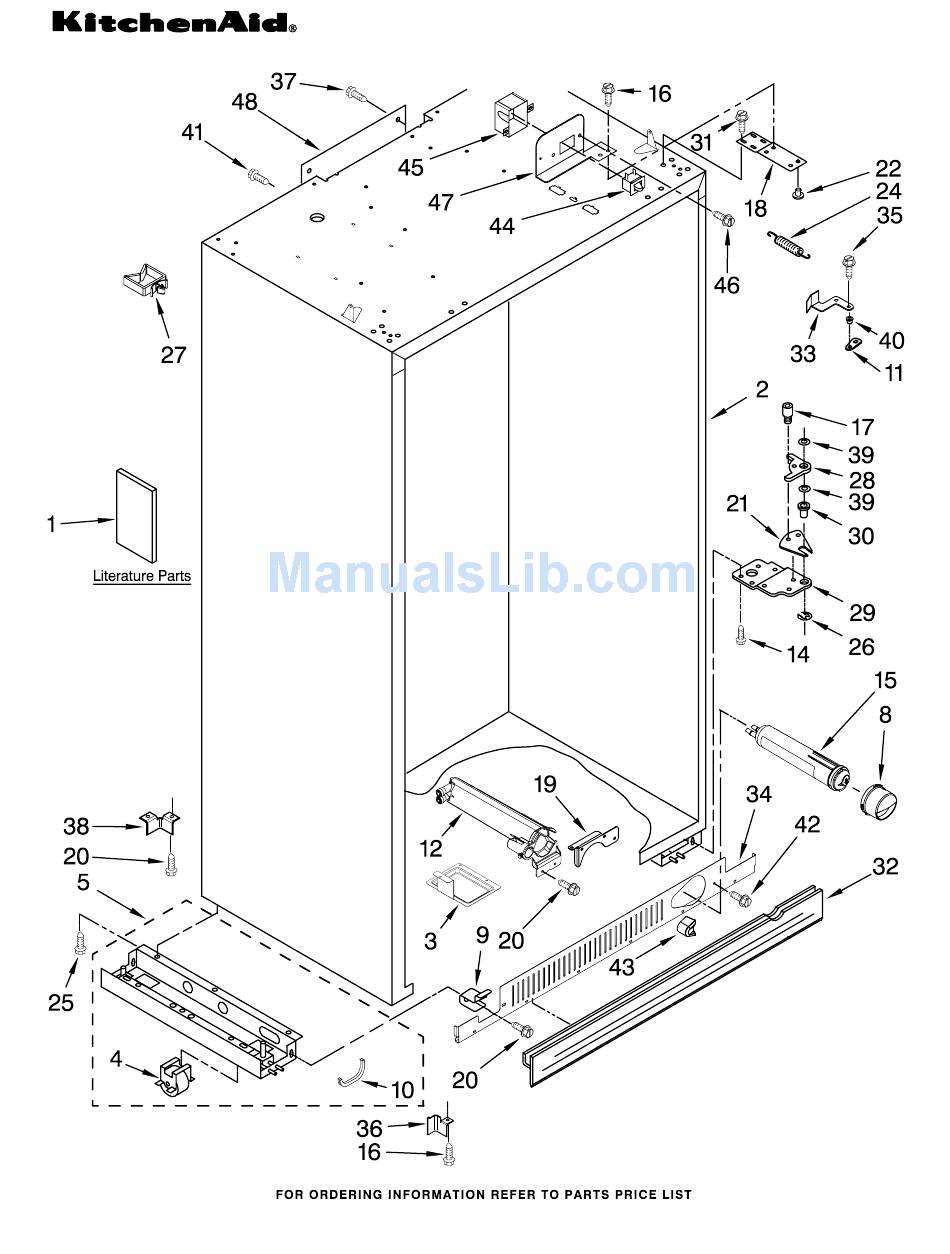

CABINET PARTS
48" BUILT IN
REFRIGERATOR
For Model: KSSC48FTS03
(Stainless Steel)
11−08 Litho In U.S.A. (jdc) (psw)
1
Part No. W10242822 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSC48FTS03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSSC48FTS03

Summary of Contents for KitchenAid KSSC48FTS03

  • Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Model: KSSC48FTS03 (Stainless Steel) 11−08 Litho In U.S.A. (jdc) (psw) Part No. W10242822 Rev. A...

  • Page 2: Cabinet Parts

    W10163491 Freezer Side Cap, Water Filter 2260518B Black 2307640 Mounting Stud, Grille 2307584 Grommet, Crossover Tube 2005783 Cam, Door Closer CABINET PARTS For Model: KSSC48FTS03 (Stainless Steel) Illus. Part DESCRIPTION 12 W10121140 Housing, Water Filter 3400525 Screw 4396841 Filter, Water...
  • Page 3 W10242822 CABINET TRIM PARTS For Model: KSSC48FTS03 (Stainless Steel) Illus. Part DESCRIPTION 1 W10132472 Cabinet, Trim (Right Side) 1163283 Screw 2316688 Cabinet, Trim (Bottom) 486194 Screw 2314018 Cabinet, Trim Top 7 W10132541 Cabinet Trim (Left Side) 8 W10121451 Nutsert (4) 2005925 Seal−Trim, Side...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: KSSC48FTS03 (Stainless Steel) Illus. Part DESCRIPTION 1 W10175906 Wire, Shelf (2) 2 W10213535 Cover, Shelf 2302884 Shelf, Fixed (2) 2259086 Basket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266935 Door, Ice...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSC48FTS03 (Stainless Steel) W10242822...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSC48FTS03 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Air Baffle...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS W10242822 For Model: KSSC48FTS03 (Stainless Steel) Illus. Part DESCRIPTION 2307587 Control Box Assy 2310164 Wire, Jumper 2324973 Bracket, Control Box 2307596 Shield, Light 487539 Screw 2317000 Clip, Control Box 2306086 Display Board, Ingredient Care Center 2223857 Socket, Light...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC48FTS03 Illus. Part 2316738S Panel, Decorative 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10185625 Cover, Unit Front 487415 Screw 7 W10167456 Wire Assembly 2317923S Nameplate 489348 Clamp 489399 Screw (5)

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSC48FTS03 (Stainless Steel) W10242822...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC48FTS03 (Stainless Steel) Illus. Part DESCRIPTION 2222593 Shelf Assy (4) 2256250 Trim, Glass Side Meat Pan 2179404 Rack, Wine 2302843 Meat Pan Cover Assembly 2302836 Crisper Cover Assembly 2257583 Trim, Glass Rear 2252413 Crisper Pan (2)
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC48FTS03 (Stainless Steel) W10242822...
  • Page 12 488500 Screw, Ground 2223857 Socket, Light (2) 488937 Clamp, Nylon 2326255 Light Bulb 2182120 Scroll, Fan 2259465 Wedge, Air Duct 2266801 Deflector, Air 2307778 Air Duct For Model: KSSC48FTS03 (Stainless Steel) Illus. Part DESCRIPTION Block, Fan Scroll 2209482 Right 2209066 Left...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSC48FTS03 (Stainless Steel) W10242822...
  • Page 14 REFRIGERATOR DOOR PARTS For Model: KSSC48FTS03 (Stainless Steel) Illus. Part DESCRIPTION 1 W10193491 Refrigerator Door (Includes #9) 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222797 Rail, Lid 2222983 Gasket, Utility 2222812 Door Gasket,...

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSC48FTS03 (Stainless Steel) W10242822...
  • Page 16 FREEZER DOOR PARTS For Model: KSSC48FTS03 (Stainless Steel) Illus. Part DESCRIPTION 1 W10193487 Freezer Door (Includes #14) 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222810 Door Gasket, Magnetic 2316868 Handle, Door 2309056 Spacer, Door−Skin...
  • Page 17 UPPER UNIT PARTS For Model: KSSC48FTS03 (Stainless Steel) W10242822...
  • Page 18 2256328 Bracket, Inverter 2317031 Bracket, Vibration Condenser 1157158 Screw 2307998 Condenser 2309431 Grommet (4) 2317030 Arm, Vibration Condenser UPPER UNIT PARTS For Model: KSSC48FTS03 (Stainless Steel) Illus. Part DESCRIPTION 2155774 Wire Tie 21 W10175593 Drier 2310207 Wire Assembly (Condenser Fan)
  • Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSC48FTS03 (Stainless Steel) W10242822...
  • Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSC48FTS03 (Stainless Steel) Illus. Part DESCRIPTION 486194 Screw 2 W10157752 Bracket, Heater Mounting 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assembly 6 W10151288 Cover, Wiring 7 W10153595 Cover, Box 8 W10121374 Tube, Discharge...

  • Page 21: Icemaker Parts

    ICEMAKER PARTS For Model: KSSC48FTS03 (Stainless Steel) W10242822...
  • Page 22 2310108 Jumper, Fill Tube Heater 2320559 Support, Valve 2208136 Clamp, Nylon Valve 488937 Clamp Tube 2221240 Heater, Fill Tube ICEMAKER PARTS For Model: KSSC48FTS03 (Stainless Steel) Illus. Part DESCRIPTION 2257538 Cover 2313990 Shut Off Arm 20 W10122527 Mold & Heater...
