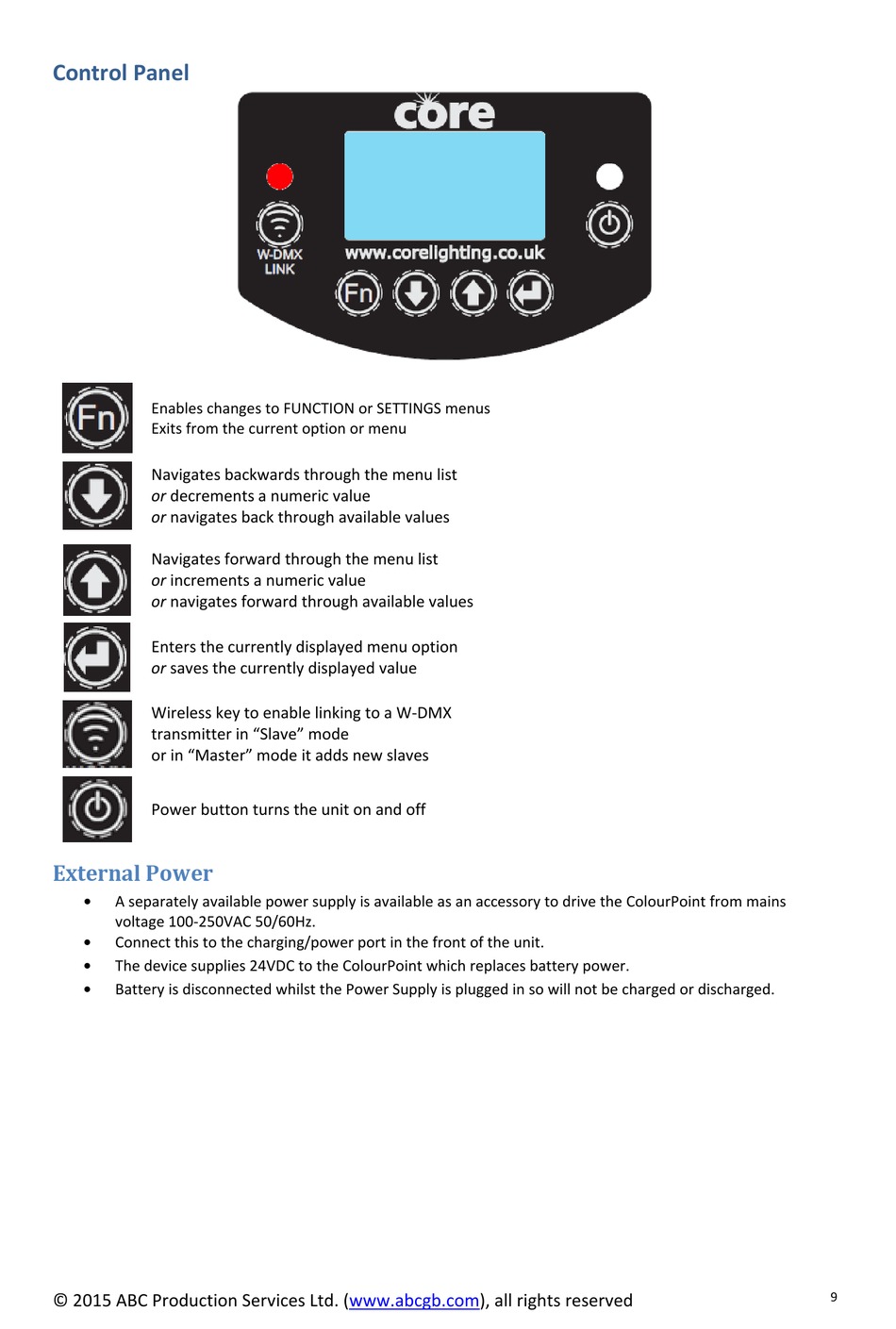

Control Panel
Enables changes to FUNCTION or SETTINGS menus
Exits from the current option or menu
Navigates backwards through the menu list
or decrements a numeric value
or navigates back through available values
Navigates forward through the menu list
or increments a numeric value
or navigates forward through available values
Enters the currently displayed menu option
or saves the currently displayed value
Wireless key to enable linking to a W‐DMX
transmitter in "Slave" mode
or in "Master" mode it adds new slaves
Power button turns the unit on and off
External Power

A separately available power supply is available as an accessory to drive the ColourPoint from mains
voltage 100‐250VAC 50/60Hz.

Connect this to the charging/power port in the front of the unit.

The device supplies 24VDC to the ColourPoint which replaces battery power.

Battery is disconnected whilst the Power Supply is plugged in so will not be charged or discharged.
