ALP-20
Surface Mount Slim LED Profile
INSTALLATION GUIDE

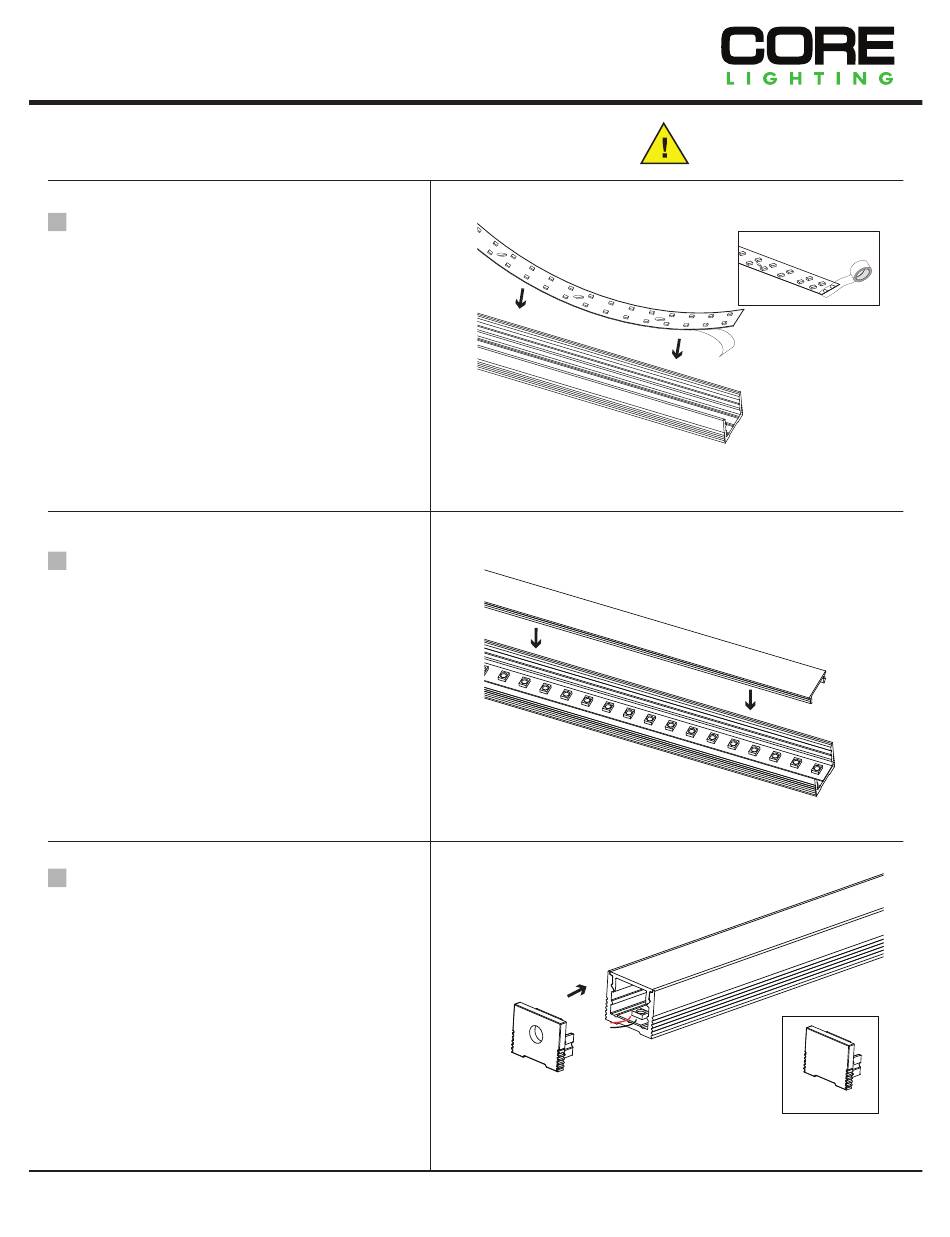

PLACE INSULATION ON BOTH ENDS OF THE LED
1
STRIP. PEEL OFF ADHESIVE BACKING AND ATTACH
ONTO
PROFILE.
MAKE
COMPLETELY ADHERED TO PROFILE.
MOUNT DIFFUSER (LENS) ONTO PROFILE. LENS
2
WILL SNAP SHUT WHEN IT IS FULLY SET INTO
PLACE.
MOUNT END CAPS. FOR LEAD WIRE GOING
3
THROUGH THE END OF THE PROFILE, RUN LEAD
WIRE THROUGH END CAP WITH HOLE. USE AN END
CAP WITHOUT A HOLE FOR LEAD WIRES GOING
THROUG BOTTOM OF PROFILE.
15024 Staff Ct., Gardena CA, 90248
info@corelightingusa.com | www.corelightingusa.com
T: 888.737.9192 | F: 888.789.4643
SURE
LED
STRIP
IS
End cap with hole
WARNING: RISK OF ELECTRICAL SHOCK
* turn off main power prior to installation
* make sure hands are dry
* never touch exposed wires
End cap
ALP20INSTALLGUIDE
|
