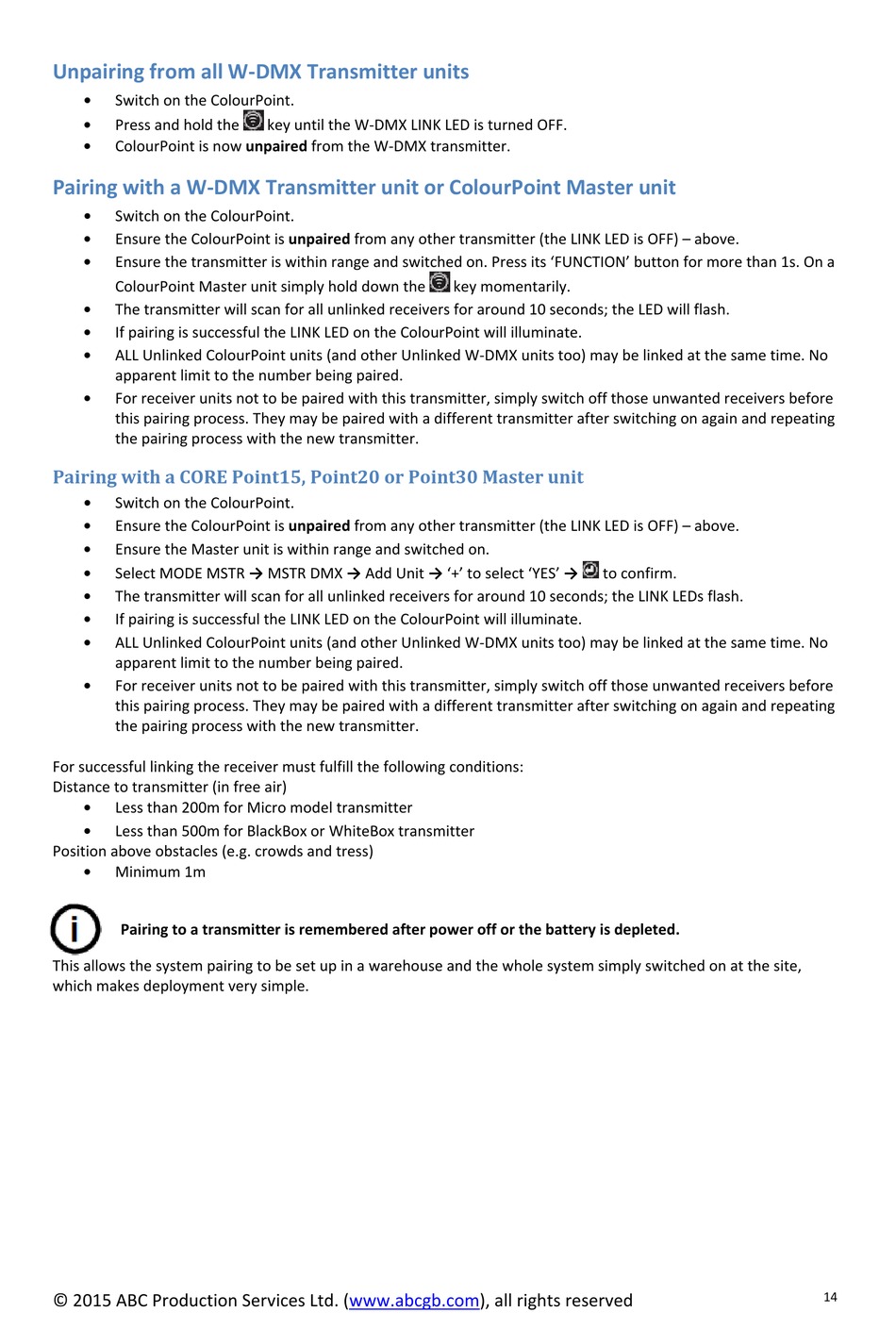

Unpairing from all W‐DMX Transmitter units

Switch on the ColourPoint.

Press and hold the

ColourPoint is now unpaired from the W‐DMX transmitter.
Pairing with a W‐DMX Transmitter unit or ColourPoint Master unit

Switch on the ColourPoint.

Ensure the ColourPoint is unpaired from any other transmitter (the LINK LED is OFF) – above.

Ensure the transmitter is within range and switched on. Press its 'FUNCTION' button for more than 1s. On a
ColourPoint Master unit simply hold down the

The transmitter will scan for all unlinked receivers for around 10 seconds; the LED will flash.

If pairing is successful the LINK LED on the ColourPoint will illuminate.

ALL Unlinked ColourPoint units (and other Unlinked W‐DMX units too) may be linked at the same time. No
apparent limit to the number being paired.

For receiver units not to be paired with this transmitter, simply switch off those unwanted receivers before
this pairing process. They may be paired with a different transmitter after switching on again and repeating
the pairing process with the new transmitter.
Pairing with a CORE Point15, Point20 or Point30 Master unit

Switch on the ColourPoint.

Ensure the ColourPoint is unpaired from any other transmitter (the LINK LED is OFF) – above.

Ensure the Master unit is within range and switched on.

Select MODE MSTR → MSTR DMX → Add Unit → '+' to select 'YES' → to confirm.

The transmitter will scan for all unlinked receivers for around 10 seconds; the LINK LEDs flash.

If pairing is successful the LINK LED on the ColourPoint will illuminate.

ALL Unlinked ColourPoint units (and other Unlinked W‐DMX units too) may be linked at the same time. No
apparent limit to the number being paired.

For receiver units not to be paired with this transmitter, simply switch off those unwanted receivers before
this pairing process. They may be paired with a different transmitter after switching on again and repeating
the pairing process with the new transmitter.
For successful linking the receiver must fulfill the following conditions:
Distance to transmitter (in free air)

Less than 200m for Micro model transmitter

Less than 500m for BlackBox or WhiteBox transmitter
Position above obstacles (e.g. crowds and tress)

Minimum 1m
Pairing to a transmitter is remembered after power off or the battery is depleted.
This allows the system pairing to be set up in a warehouse and the whole system simply switched on at the site,
which makes deployment very simple.
