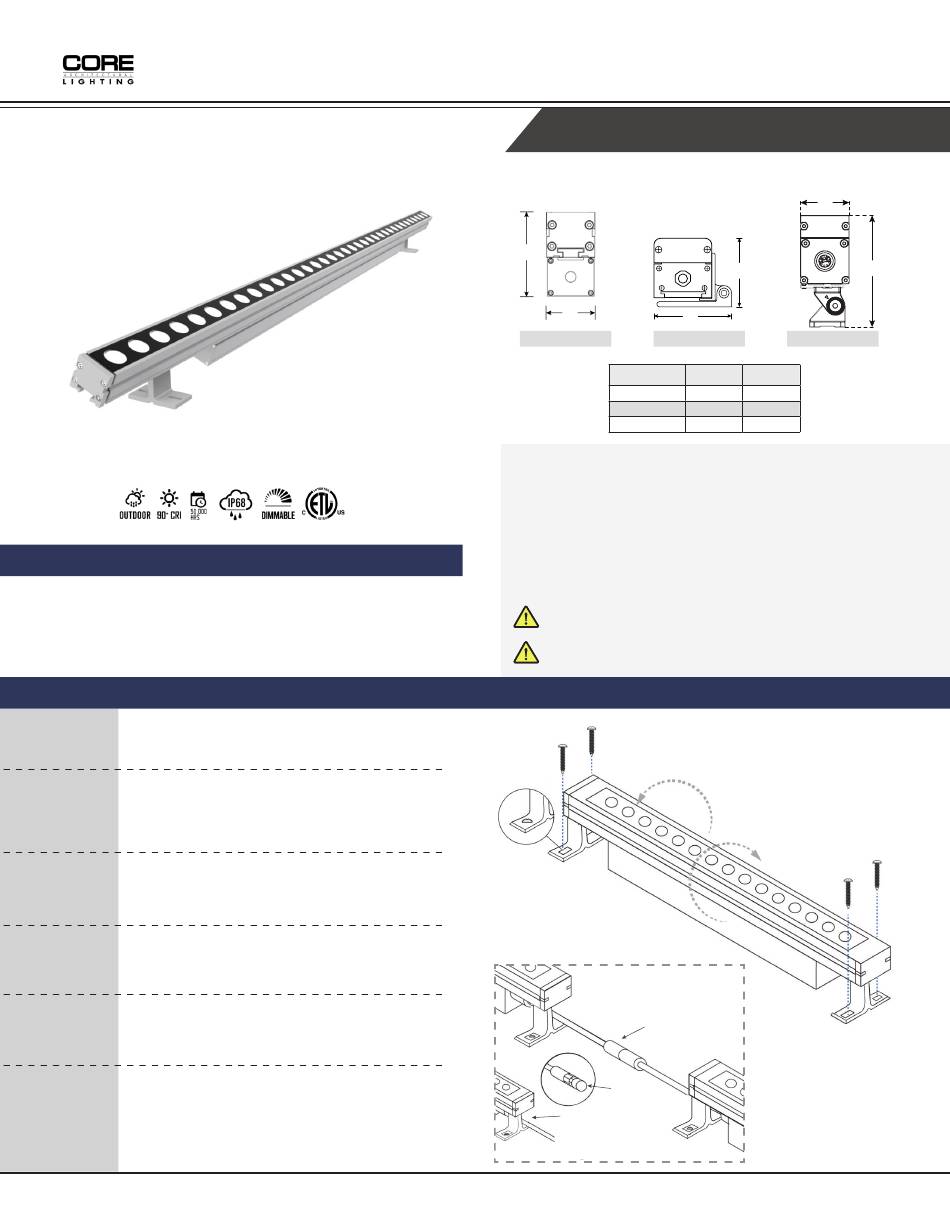

Core Lighting LWW120 Series Installation Manual

PRE-INSTALLATION
Surface Mount
Disconnect power source prior to installation.
INSTALLATION
STEP 1 Position fixture and mark the screw hole locations. Pre-drill as
needed.
Locate the marked or pre-drilled holes. Re-position fixture on
one side to expose the the holes.
STEP 2
Attach witth appropriate hardware.
Rotate fixture to opposite side to expose remaining holes.
STEP 3
Attach with appropriate hardware.
Rotate fixture back to proper position. Tighten pivot bolt to
STEP 4
secure the desired angle.
Connect each desired fixture using the provided connectors
STEP 5
and cables.
Connect the starting fixture to the source voltage line.
STEP 6
*Make sure an end cap is placed on the final, unused cable
connector.
1 5 0 W Car o b S tr ee t , Comp to n, C A 90 220 | w w w.co r el igh t i ng us a .co m | 888- 737- 9192
120V-277V HIGH PERFORMANCE LED WALL WASHER
DIMENSIONS
H
W
LWW120-SL
SAFETY
Read all instructions before installation.
These products may present a possible shock, serious injury, or death if
improperly installed.
Do not install within 10 ft or less from the nearest edge of a pool, spa, fountain,
or similar location
Product should be installed by a qualified electrician.
Product should be installed in accordance with these instructions and current electrical codes.
120V Hardwire
Connection
LWW120 SERIES
INSTALLATION GUIDE
H
W
LWW120-HO
MODEL WIDTH HEIGHT
LWW120-SL 35.8mm 67.7mm
LWW120-HO 80.5mm 70.5mm
LWW120-VHO 55mm 126mm
Connectors
Cap
W
H
LWW120-VHO
