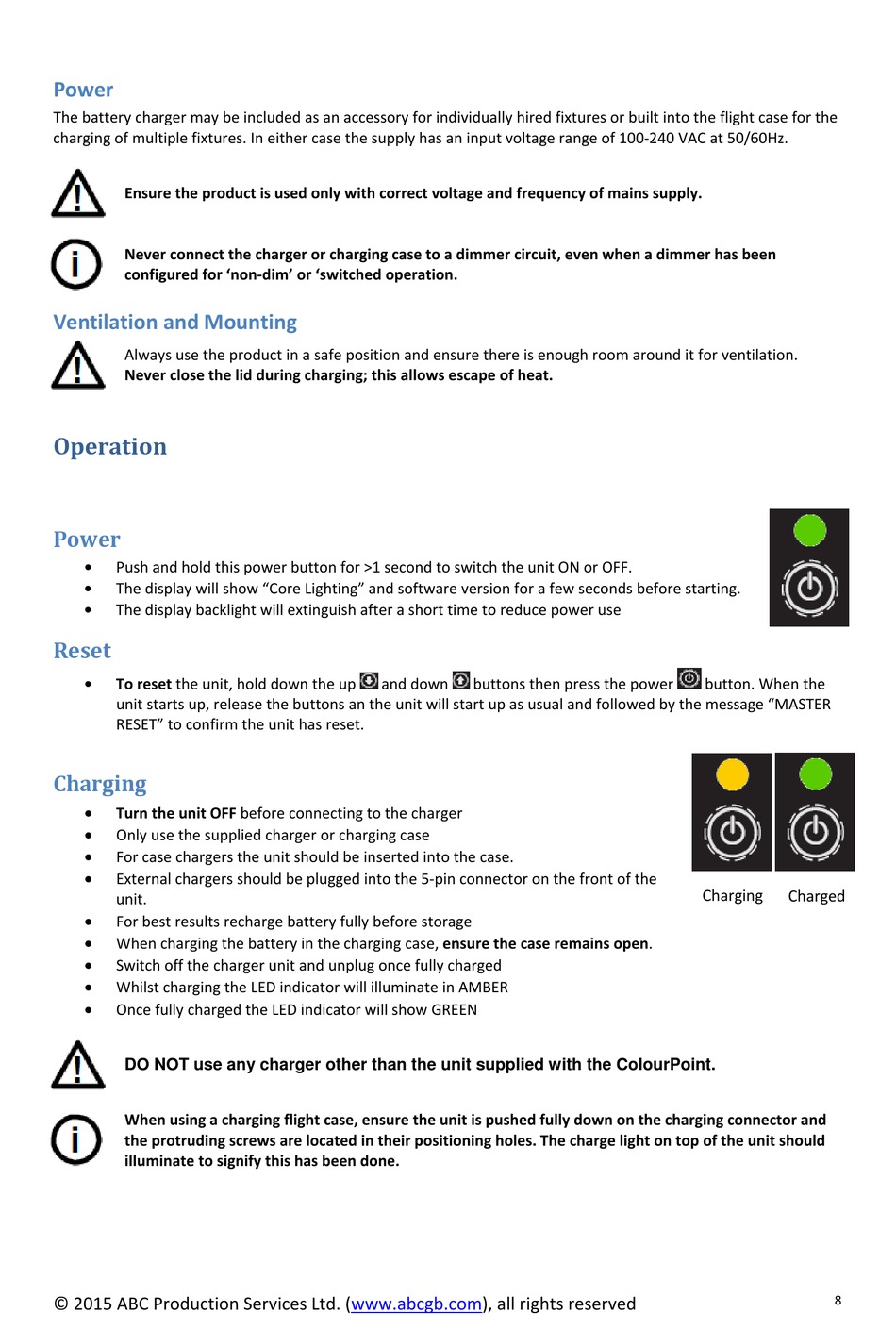

Power; Ventilation And Mounting; Operation; Reset - Core Lighting ColourPoint MK2 User Manual

Power
The battery charger may be included as an accessory for individually hired fixtures or built into the flight case for the
charging of multiple fixtures. In either case the supply has an input voltage range of 100‐240 VAC at 50/60Hz.
Ensure the product is used only with correct voltage and frequency of mains supply.
Never connect the charger or charging case to a dimmer circuit, even when a dimmer has been
configured for 'non‐dim' or 'switched operation.
Ventilation and Mounting
Always use the product in a safe position and ensure there is enough room around it for ventilation.
Never close the lid during charging; this allows escape of heat.

Operation

Power


Push and hold this power button for >1 second to switch the unit ON or OFF.

The display will show "Core Lighting" and software version for a few seconds before starting.

The display backlight will extinguish after a short time to reduce power use

Reset


To reset the unit, hold down the up
unit starts up, release the buttons an the unit will start up as usual and followed by the message "MASTER
RESET" to confirm the unit has reset.

Charging


Turn the unit OFF before connecting to the charger

Only use the supplied charger or charging case

For case chargers the unit should be inserted into the case.

External chargers should be plugged into the 5‐pin connector on the front of the
unit.

For best results recharge battery fully before storage

When charging the battery in the charging case, ensure the case remains open.

Switch off the charger unit and unplug once fully charged

Whilst charging the LED indicator will illuminate in AMBER

Once fully charged the LED indicator will show GREEN
DO NOT use any charger other than the unit supplied with the ColourPoint.
When using a charging flight case, ensure the unit is pushed fully down on the charging connector and
the protruding screws are located in their positioning holes. The charge light on top of the unit should
illuminate to signify this has been done.
© 2015 ABC Production Services Ltd. (www.abcgb.com), all rights reserved
and down buttons then press the power button. When the
Charging
Charged
