KitchenAid KSRG25FKST19 Parts List

Hide thumbs

Advertisement

Quick Links

Download this manual
Table of Contents

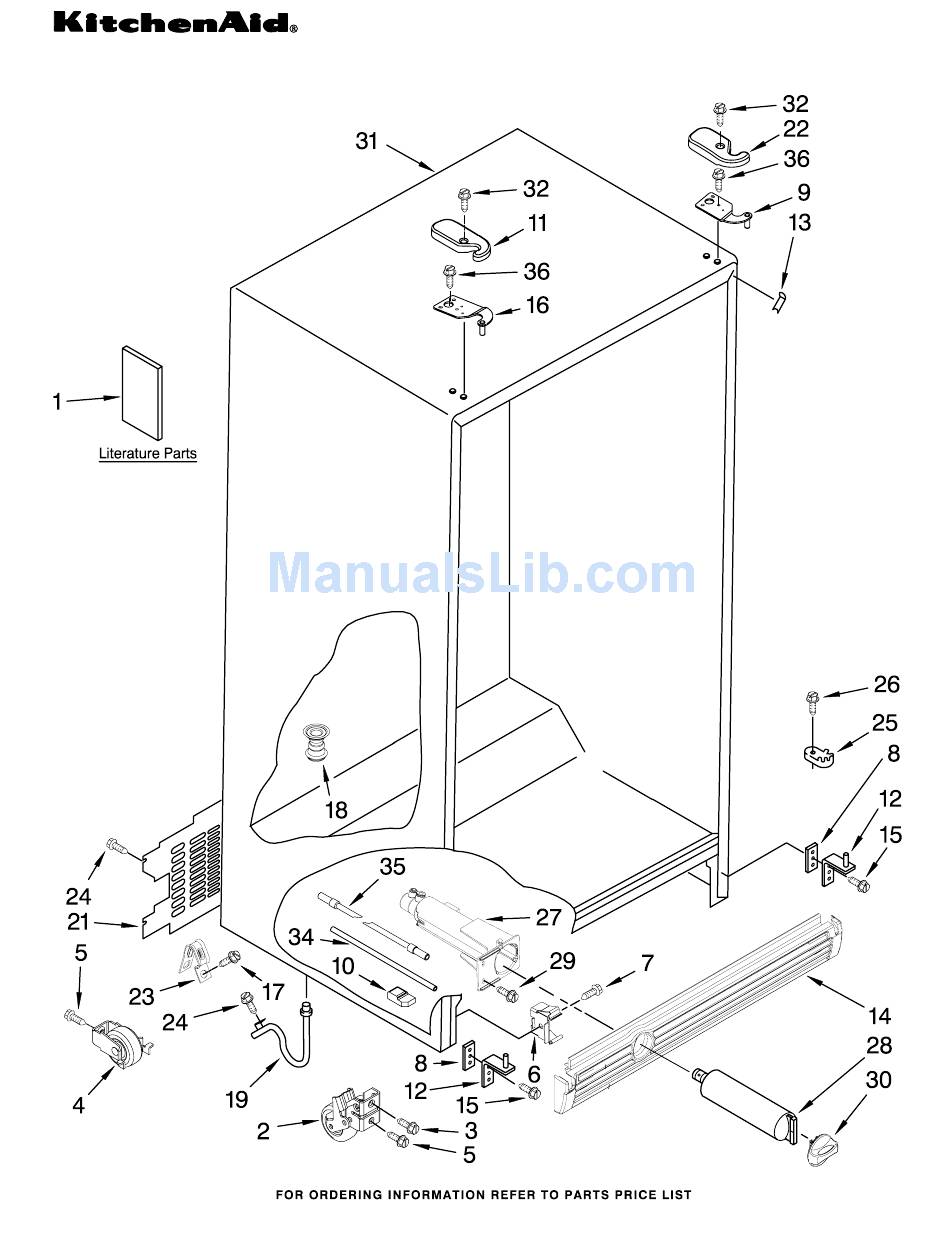

CABINET PARTS
REFRIGERATOR
For Model: KSRG25FKST19
(Stainless VCM)
04−07 Printed In U.S.A. (rrm)
Part No. W10133376 Rev.A
1

Advertisement

loading

  Related Manuals for KitchenAid KSRG25FKST19

  Summary of Contents for KitchenAid KSRG25FKST19

  • Page 1 CABINET PARTS REFRIGERATOR For Model: KSRG25FKST19 (Stainless VCM) 04−07 Printed In U.S.A. (rrm) Part No. W10133376 Rev.A...

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: KSRG25FKST19 (Stainless VCM) Illus. Part DESCRIPTION Literature Parts 2318581 Use & Care Guide 2255385 Service & Wiring Sheet 2318618 Energy Label 2220407 Modular Icemaker Service Sheet 2174748 Front Roller (2) 3400517 Screw 2196236 Roller (Rear) (2) 489427 Screw 2155013 Clip, Grille 489478 Screw...

  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSRG25FKST19 (Stainless VCM) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2255612 Escutcheon, Meat Pan Control 2301339 Slide Meat Pan Control 2257741 Louver 2256035 Bracket, Dual Crisper 2311637 Wire Harness, Dual Crisper 2319866 Ladder, Shelf (2) 11 W10004810 Screw (2) 489478 Screw 2179404 Rack, Wine &...

  • Page 4: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSRG25FKST19 (Stainless VCM) Illus. Part DESCRIPTION 2195975 Frame Assembly, Cantilever (2) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2223357 Cover, Meat Pan (Includes Items 13, 14 & 15) 2305595 Snack Pan (Includes #7) 2179243 Trim, Handle 2255144 Glass, Cover 2301484 Cover, Crisper...

  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Model: KSRG25FKST19 (Stainless VCM) W10133376...
  • Page 6 FREEZER LINER PARTS For Model: KSRG25FKST19 (Stainless VCM) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 941839 Hole Plug 3400893 Screw 940014 Hole Plug 2301190 Basket, Tall Track, Basket−Dual 2301293 Right Side 2301294 Left Side 2211746K Shelf, Slide Out Upper 2305580K Basket, Front Shelf Track 2301289 Right Side...

  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Model: KSRG25FKST19 (Stainless VCM) W10133376...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Model: KSRG25FKST19 (Stainless VCM) Illus. Part DESCRIPTION 2198573 Ice Bin 2255580 Crusher Bin 2320327 Auger 2258220 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2198602 Block, Blade 489229 Roll Pin...

  • Page 9: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSRG25FKST19 (Stainless VCM) W10133376...
  • Page 10 REFRIGERATOR DOOR PARTS For Model: KSRG25FKST19 (Stainless VCM) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2301184L Stainless−VCM 2301486 Door, Compartment 2193409K Holder, Beverage Handle 2304832SK Stainless Steel Door Gasket, Magnetic 2221313 Black 9 W10010140 Set Screw 2219698 Stud, Handle 488208 Screw 2182178 Door Closer, Upper Cam 2159124 Gasket...

  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSRG25FKST19 (Stainless VCM) W10133376...
  • Page 12 FREEZER DOOR PARTS For Model: KSRG25FKST19 (Stainless VCM) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2315733L Stainless−VCM Handle 2304832SK Stainless Steel 2219698 Stud, Handle 488208 Screw 3400012 Screw 6 W10010140 Set Screw 2171070K Shelf Bin (3) Door Gasket, Magnetic 2221314 Black...

  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Model: KSRG25FKST19 (Stainless VCM) W10133376...
  • Page 14 DISPENSER FRONT PARTS For Model: KSRG25FKST19 (Stainless VCM) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670B Black 2304317 Water Fitting Assembly (Includes Water Tube) Lever, Ice...

  • Page 15: Air Flow Parts

    AIR FLOW PARTS For Model: KSRG25FKST19 (Stainless VCM) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2313359 Duct Assy.Upper 2198580 Air Duct Freezer 2319914 Bi−Metal, Defrost 2315549 Fan Motor 2169142 Fan Blade 2304241 Gasket 2176759 Fan Grommet (2) 2310237 Harness, Fan Evaporator (Includes #6)

  • Page 16: Control Parts

    CONTROL PARTS For Model: KSRG25FKST19 (Stainless VCM) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2181741 Slide, Air Control 2216012 Control Box 1115374 Clip, Wiring 2172906 Grommet, Light Bar 2196001 Tube Barrier, 1115375 Clip, Wiring 2161466 Slide, Thermostat Thermostat 2161308 Connecting Rod 489214 Screw (3) 489084 Screw (2)

  • Page 17: Unit Parts

    UNIT PARTS For Model: KSRG25FKST19 (Stainless VCM) W10133376...
  • Page 18 UNIT PARTS For Model: KSRG25FKST19 (Stainless VCM) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2161324 Clamp 2169104 Insulation−Sound 2186495 Guard, Fan 2188874 Fan, Motor 2225834 Fan, Blade 2172840 Strap 1105523 Tray, Evaporator 3 W10121484 Condenser 489427 Screw 2217194 Heat Shield Assembly 488649 Screw Drier...

  • Page 19: Icemaker Parts

    ICEMAKER PARTS For Model: KSRG25FKST19 (Stainless VCM) W10133376...
  • Page 20 ICEMAKER PARTS For Model: KSRG25FKST19 (Stainless VCM) Illus. Part DESCRIPTION 2256096 Fitting, Water Tube 628379 Clip, Fuse 489478 Screw 2315534 Filter Valve Asm 2208136 Tube Clamp 2174358 Cover 488649 Screw 2255835 Mold & Heater Assembly (Also Order 542638 628356 Cup, Water Fill 627843 Ejector 2198598 Ice Striper 2194712 Support...
  • Page 21 OPTIONAL PARTS (NOT INCLUDED) For Model: KSRG25FKST19 (Stainless VCM) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Refinishing Material Miscellaneous Parts Not Illustrated and Optional Parts (Not Included) 799340 Enamel, Black 212643 Sealer, Gum (1 Qt. Uncut) (4 Feet) Customer Touch−Up Material 799344 Enamel, White 479502 Tape, Vinyl...
