C. LAMP
EFP 12V 100W
JCR 15V 150W
ELC 24V 250W
• Always switch off the main supply and never handle the lamp or luminaire when it
is hot.
• Do not touch the bulb with bare hands. If this does happen, clean the lamp with
denatured alcohol and wipe with a lint free cloth before installing.
• Remember always replace with the same type lamp.

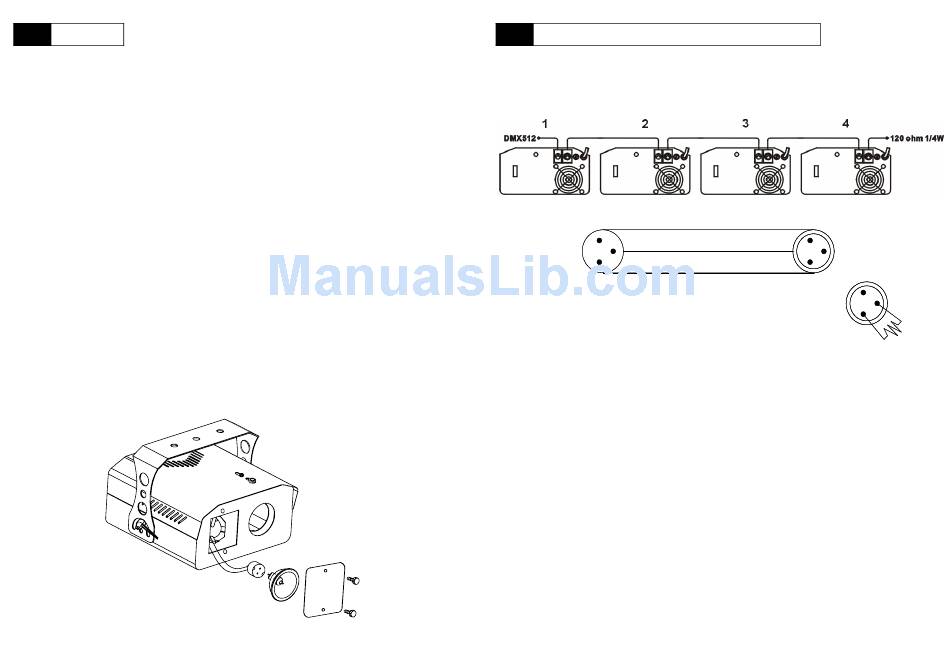

How to change the lamp
•
1. Loosen the screw on the door located on font of the unit
2. Remove the door.
3. Remove and replace the bulb.
4. Reassemble.
D.

HOW TO CONTROL THE UNIT

(1). By universal DMX controller
The DMX512 is widely used in intelligent lighting control, with a maximum of 512
channels.
1
DMX INPUT
3
2
Termination reduces signal errors and to avoid signal
transmission problems and interference. It is always
6C
advisable to connect a DMX terminal.
(Resistance 120 ohm 1/4W) between pin2 (DMX-) and
pin3 (DMX+) of the last fixture.
• A DMX512 system requires a controller, lighting equipment and cable. These are
connected together in a "daisy chain" with the terminator at the end. The cable
cannot be branched or split to a "Y" cable.
• The terminator requires a 90-120 Ohm 1/4 Watt resistor soldered between two
signal cables.
• The DMX512 uses a very high-speed signal. Inadequate or damaged cables, bad
solder joints or corroded connectors can easily distort the signal and shut down
the system. A reliable DMX512 system starts with good quality cables.
• Each lighting unit needs to have an address set to receive the data sent by the
controller. The address number is between 0-511 (usually 0 & 1 are equal to 1).
• The end of the DMX512 system should be terminated to reduce signal errors.
• 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
COMMON
1
DMX +
DMX OUTPUT
3
2
DMX -
1
3
2
