Technical Specifications
Power
AC 120V~60Hz
Fuse
20mm Glass 6.3A Fast Blow
Lamp
ELC 24V 250W
Dimension
290mm x 330mm x 380mm
Weight
12 kg
BEGLEC CVA
't Hofveld 2 – B1702 Groot-Bijgaarden
WWW.BEGLEC.COM
Innovation , Quality , Performance
AC 230/240/250V~50/60Hz
20mm Glass 5A Fast Blow

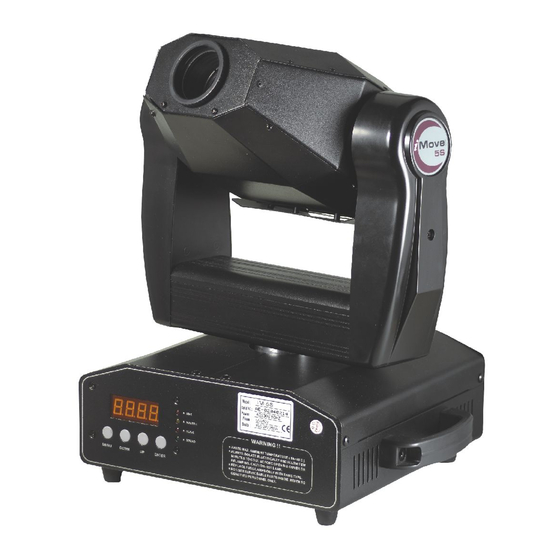

IMOVE-5S
User Guide
Professional Entertainment Technology
IMOVE-5W
Advertisement
Table of Contents
Related Manuals for BEGLEC iSolution IMOVE-5S
Summary of Contents for BEGLEC iSolution IMOVE-5S
- Page 1 20mm Glass 6.3A Fast Blow 20mm Glass 5A Fast Blow Lamp ELC 24V 250W Dimension 290mm x 330mm x 380mm Weight 12 kg BEGLEC CVA IMOVE-5S IMOVE-5W ‘t Hofveld 2 – B1702 Groot-Bijgaarden WWW.BEGLEC.COM User Guide Innovation , Quality , Performance Professional Entertainment Technology...
- Page 2 7. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
-
Page 3: Table Of Contents
G. If The pan belt is broken 1. Turn off the main power. 2. Unscrew all the screws (A) and open the base-housing cover (B). TABLE OF CONTENTS 3. Unplug all the connect wires (C) that from the arm to PC board and ignitor. 1. -
Page 4: Safety Instruction
1. Safety Instruction shock. Please read carefully the instruction, which includes important information 6. Troubleshooting about the installation, usage and maintenance.maintenance. WARNING Following are a few common problems that may occur during operation. Here are ♦ Please keep this User Guide for future consultation. If you sell the unit to another user, some suggestions for easy troubleshooting: be sure that they also receive this instruction booklet ♦... - Page 5 5.5 DMX512 Connection The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. Warning ♦ To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. ♦...
-
Page 6: Technical Specification
2. Technical Specification • Voltage：AC 120V~60Hz or 230V/240V/250V~50/60Hz • Bulb：ELC 24V 250W also • The unit is DMX512 fixture. It features full DMX512 control. It can be linked together in master/slave connection, as many as required and run by built-in program chase sequences automatically or by sound activation through an internal microphone to create an intelligent effect. - Page 7 5.4 DMX512 Configuration IM-5S Stand by Blackout the unit Strobe X/Y moving show mode Color/Gobo selection X/Y moving setting 1.Gobo/Color sync selection 1. Hold on for gobo 1.Pan position strobe ( Show 1 ~ Show 4 ) change. 2.Tilt position Function 2.Sync.
-
Page 8: Lamp
3. Lamp 4. How To Set The Unit In case of replacement of the lamp or maintenance, do not open the 4.1 Control Panel fixture within 15 minutes until the unit cools down after switching off. Lamp : ELC 24V 250W 1. -
Page 9: How To Control The Unit
5. How To Control The Unit Display Inversion You can operate the unit in three ways: It is good for you to install the unit on the floor or under ceiling. Press the MENU button up to 1. By master/slave built-in preprogram function when the is blinking on the display. - Page 10 4.2 Main Function Show Mode To select any of the given functions, press the MENU button up to when the required one is showing on the display. Select the function by ENTER button and the display will blink. Press the MENU button up to when the is showing on the display.
- Page 11 Color Mode Press the MENU button up to when the is showing on the display. Pressing ENTER button and the display will blink. Use DOWN and UP button to select the (normal) or (split color) mode. Once the mode has been selected, press the ENTER button to setup or automatically return to the main functions without any change after 8 seconds.
