Main Features - BEGLEC Magic Gobo User Manual

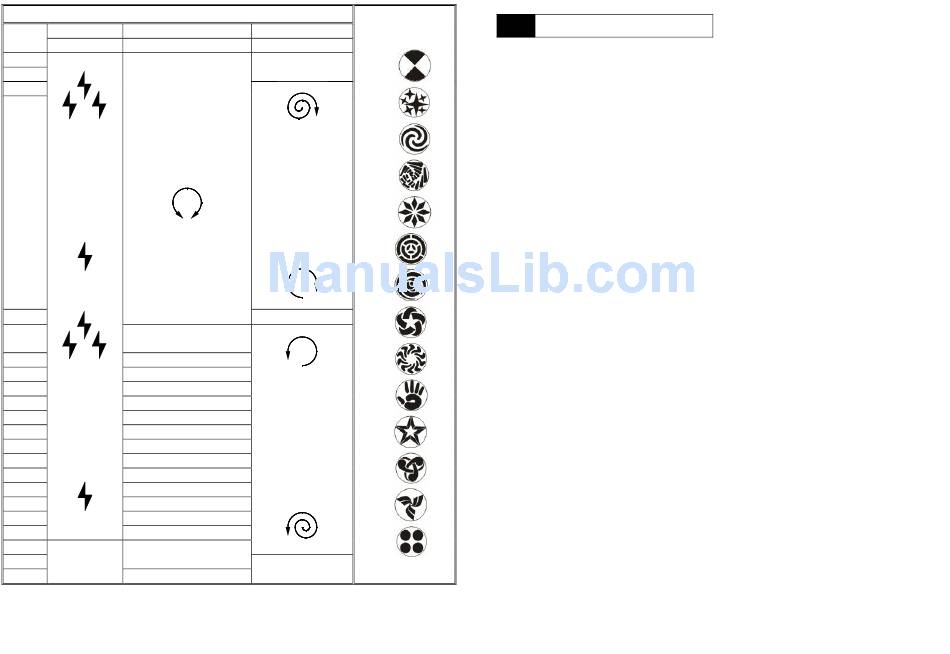

DMX512 CONFIGURATION
DMX Channel 1 Channel 2
values Shutter Gobo / Color
255 Fastest speed
Fast strobe
246
245
Slow strobe
136
Fast shaking
128 Slowest speed
Gobo 14 / Green +
120
Pink
112 Gobo 13 / White
104 Gobo 12 / Blue
96 Gobo 11 / Orange
88 Gobo 10 / Magenta
80 Gobo 9 / Pink
72 Gobo 8 / Light Blue
64 Gobo 7 / Magenta
56 Gobo 6 / Red
48 Gobo 5 / Orange
40 Gobo 4 / Green
32 Gobo 3 / Yellow
24 Gobo 2 / Blue
Slow shaking Gobo 1 / Multicolor
16
11
8 Open
Stop
0 Blackout
Gobos
Channel 3
Reflector mirror
Stop
14
13
12
11
10
9
8
Stop
7
6
5
4
3
2
1
Stop
B.

MAIN FEATURES

• Voltage : 120V 60Hz or 230/240/250V 50/60 Hz AC
• Bulb : EFP 12V 100W / JCR 15V 150W / ELC 24V 250W
• The unit is a DMX512 compatible lighting. It features full DMX512 control. One
gobo/color wheel with15 gobos plus shutter and 12 one color, 1 two colors and 1
four colors plus white, accurate focusable optics system and stepper motor with
blackout feature. Fan cooled.
• When the light receives blackout signal of DMX512, the bulb will shut down
(blackout) immediately and then the bulb will turn off 15 seconds later.
• It can be operated by DMX512 control or can be used as an individual unit without
a controller.
• It can be linked together in master/slave combination, as many units as are
5C required in 4 channels and run by built-in preprogrammed chase sequences by
sound activation through an internal microphone to create an intelligent effect.
• Please use a quality 3 pin DMX cable / XLR plug when connecting them together.
• It features different preprogrammed chase patterns.
• Dimensions : 262mm x 240mm x 130 mm / 10.31in x 9.45in x 5.12in
• Weight : 5.8 kg / 12.76 lbs
