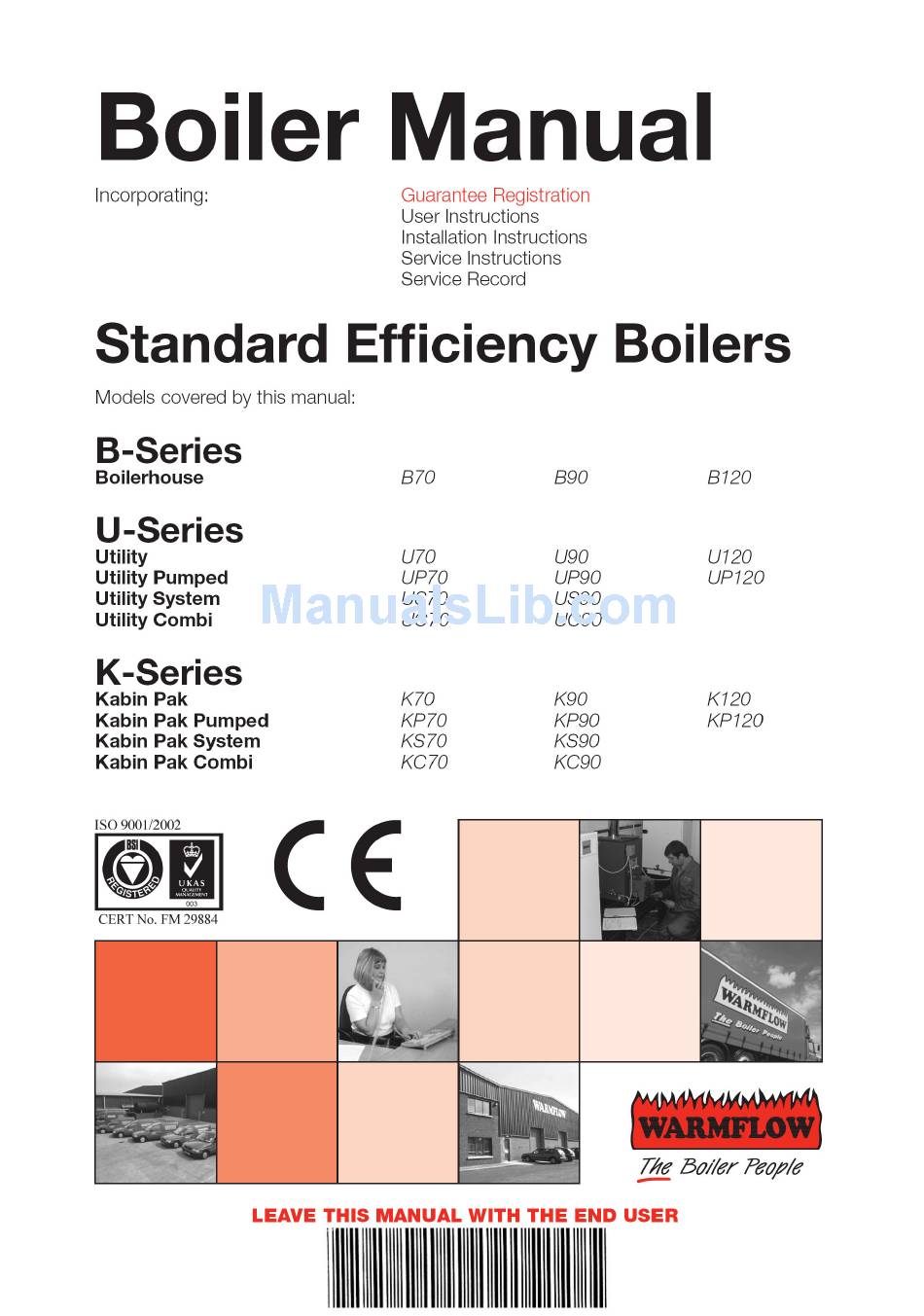

WarmFlow B-Series B70 Owner's Manual

Standard efficiency boiler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-Series B70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WarmFlow B-Series B70

Summary of Contents for WarmFlow B-Series B70

  • Page 3: Table Of Contents

    3.0 Electricity Supply & Wiring Details Dual-Safe Thermostat (Non-Combi Models) ....................33 RDB Burner Control Box ..........................33 Combi Wiring Details .............................34 Installation of a Warmflow Combi Optional Programmer (PC) ...............37 Remote Timers for Combis ..........................38 Optional Programmer (PU) for Non-Combi Models ..................39 4.0 Oil Supply One Pipe Gravity System ..........................43 Two Pipe System ............................44...

  • Page 4: User Instructions

    If the only reset the burner twice in succession. If the only reset the burner twice in succession. If the burner continues to lockout contact Warmflow or burner continues to lockout contact Warmflow or burner continues to lockout contact Warmflow or your service engineer.
  • Page 5 These switches can be replaced by the optional two channel digital programmer, instructions for use are provided in the main boiler handbook. This boiler must be serviced annually. Contact Warmflow for further details. In the event of a breakdown please contact your commissioning engineer who should then contact our service department whilst at your home, to report the fault.

  • Page 6: Combi Boiler Pre-Installation Requirements

    Where the mains water pressure is supplied via a borehole pump and accumulator the pressure variation must not affect the thermostatic mixer valve. Contact Warmflow for further details. The hardness of the mains water supply. Systems with hard water must be fitted with a suitable chemical scale preventer (eg Fernox Quantomat or Combimate).

  • Page 7: General Information . Introduction

    Regulations Section 6, Part F Northern Ireland and Part L Republic of Ireland. Warmflow standard efficiency boilers are designed for use only on fully pumped (sealed or open-vented) heating systems and to burn Class C2 kerosene and Class D gas oil. Note that with class D gas oil the flue MUST exhaust at more than 2m above the surrounding ground level.

  • Page 8: Combi General Requirements

    1.3 Combi General Requirements The boiler will have a DHW priority when both domestic hot water (DHW) and central heating (CH) are selected. So if the flow switch is closed or the heat store has not been satisfied the entire output of the boiler is directed to DHW before the boiler will switch over to CH.

  • Page 9: Components

    1.5 Components 1.5.1 B-Series Boilerhouse – Casing Components 1. Boiler Assembly with Casing 2. Service Door Cover (removable) 1.5.2 B-Series Boilerhouse (B70, B90 & B1) – Key Components 1. Heat Exchanger with Casing 2. Service Door Cover 3. Heat Exchanger Baffles 4. ‘Dual-Safe’ Thermostat 5. Service Door 6. Riello RDB 2.2 Burner 7. Flue Ring 8. Heating Flow Connection 9. Heating Return Connection Page 7...
  • Page 10 1.5.3 B-Series Boilerhouse (B120) – Key Components 1. Heat Exchanger Assembly with Casing 2. Service Door Cover 3. Secondary Exchanger Inspection Lid 4. Primary Exchanger Baffles 5. ‘Dual-Safe’ Thermostat 6. Service Door 7. Riello RDB 2.2 Burner 8. Flue Opening 9. Heating Flow Connection x 2 10. Heating Return Connection 1.5.4 U-Series Utility – Casing Components 1. Boiler Assembly 2. Top Casing (removable) 3. Rear Casing 4. Side Casing 5. Front Casing (removable) Page 8...
  • Page 11 1.5.5 U-Series Utility – Pre-Wired (U70 & U90) – Key Components 1. Heat Exchanger 2. ‘Dual-Safe’ Thermostat 3. Heat Exchanger Baffles 4. Service Door 5. Service Door Cover 6. Riello RDB 2.2 Burner 7. Flue Opening 8. Heating Flow Connection 9. Heating Return Connection 1.5.6 U-Series Utility – Pre-Wired (U120) – Key Components 1. Primary Heat Exchanger 2. Secondary Heat Exchanger 3. ‘Dual-Safe’ Thermostat 4. Secondary Exchanger Inspection Lid 5. Primary Exchanger Baffles 6. Service Door 7. Service Door Cover...
  • Page 12 1.5.7 U-Series Utility – Pumped (UP70 & UP90) – Key Components 1. Heat Exchanger 2. Pipework Assembly 3. Pressure Relief Valve 4. Auto Air Vent 5. Circulating Pump 6. ‘Dual-Safe’ Thermostat 7. Heat Exchanger Baffles 8. Service Door 9. Service Door Cover 10. Riello RDB 2.2 Burner 11. Heating Flow Connection 12. Heating Return Connection 1.5.8 U-Series Utility – Pumped (UP120) – Key Components 1. Primary Heat Exchanger 2. Secondary Heat Exchanger 3. Pipework Assembly 4. Pressure Relief Valve 5. Circulating Pump 6. Auto Air Vent 7. ‘Dual-Safe’ Thermostat 8. Secondary Exchanger Inspection Lid 9. Primary Exchanger Baffles...
  • Page 13 1.5.9 U-Series Utility – System (US70 & US90) – Key Components 1. Pumped (UP) Boiler Assembly 2. System Kit (SK1) 3. Pressure Gauge 4. Expansion Vessel 5. Filling Loop 6. Heating Flow Connection 7. Heating Return Connection 1.5.10 U-Series Utility – Combi (UC70 & UC90) – Key Components 1. Heat Exchanger 2. Heat Store 3. Pipework Assembly 4. Plate Heat Exchanger 5. Twin Head Pump 6. Service Door 7. Service Door Cover 8. Control Panel 9. Expansion Vessel 10. Riello RDB 2.2 Burner 11. Heat Exchanger Baffles 12. Flue Ring Page ...
  • Page 14 1.5.11 K-Series Kabin Pak – Casing Components 1. Boiler Assembly 2. Top Casing (removable) 3. Flue Assembly (removable) 4. Rear Flue Casing 5. Blanking Plug (removable) 6. Rear Casing (removable) 7. Side Casing 8. Front Casing (removable) Page 2...
  • Page 15 1.5.12 K-Series Kabin Pak – Pre-Wired (K70 & K90) – Key Components 1. Heat Exchanger 2. ‘Dual-Safe’ Thermostat 3. Heat Exchanger Baffles 4. Service Door 5. Service Door Cover 6. Riello RDB 2.2 Burner 7. Flue Opening 8. Heating Flow Connection 9. Heating Return Connection 1.5.13 K-Series Kabin Pak – Pre-wired (K120) – Key Components 1. Primary Heat Exchanger 2. Secondary Heat Exchanger 3. ‘Dual-Safe’ Thermostat 4. Secondary Exchanger Inspection Lid 5. Primary Exchanger Baffles 6. Service Door 7. Service Door Cover 8. Riello RDB 2.2 Burner 9. Flue Opening 10. Heating Flow Connection x 2 11. Heating Return Connection Page 3...
  • Page 16 1.5.14 K-Series Kabin Pak – Pumped (KP70 & KP90) – Key Components 1. Heat Exchanger 2. Pipework Assembly 3. Pressure Relief Valve 4. Auto Air Vent 5. Circulating Pump 6. ‘Dual-Safe’ Thermostat 7. Heat Exchanger Baffles 8. Service Door 9. Service Door Cover 10. Riello RDB 2.2 Burner 11. Heating Flow Connection 12. Heating Return Connection 1.5.15 K-Series Kabin Pak – Pumped (KP120) – Key Components 14 4 1. Primary Heat Exchanger 2. Secondary Heat Exchanger 3. Pipework Assembly 4. Pressure Relief Valve 5. Circulating Pump 6. Auto Air Vent 7. ‘Dual-Safe’ Thermostat 8. Secondary Exchanger...
  • Page 17 1.5.16 K-Series Kabin Pak – System (KS70 & KS90) – Key Components 1. Pumped (KP) Boiler Assembly 2. System Kit (SK1) 3. Pressure Gauge 4. Expansion Vessel 5. Filling Loop 6. Heating Flow Connection 7. Heating Return Connection 1.5.17 K-Series Kabin Pak – Combi (KC70 & KC90) – Key Components 1. Heat Exchanger 2. Heat Store 3. Pipework Assembly 4. Plate Heat Exchanger 5. Twin Head Pump 6. Service Door 7. Service Door Cover 8. Control Panel 9. Expansion Vessel 10. Riello RDB 2.2 Burner 11. Heat Exchanger Baffles 12. Flue Ring Page 5...
  • Page 18 1.5.18 Combi Control Panel Layout Control Mains On High Limit Tripped Burner Lockout Thermostat Lamp (Green) Lamp (Yellow) Lamp (Red) High Limit Thermostat Reset HW On/Off CH On/Off (Underneath) Switch Switch 1.5.19 Combi Pipe Layout (UC & KC Models) Central Heating Cold Water Return (22mm Copper) Mains (15mm) Domestic Hot Water (22mm) Central Heating Flow (22mm) Pressure Relief Discharge (15mm) Page 6...

  • Page 19: Technical Details

    2.0 Technical Details 2.1 Combi Sequence of Operation Flow Chart Power Timer Calling For Heat Selected Flow Switch Closed DHW Tank DHW Pump Stat Satisfied Only Runs Pump Overrun HW Limit Burner Stat Satisfied Selected Stat Satisfied Stops DHW Pump CH Pump Boiler Limit Press Only Runs Only Runs Stat Tripped Reset Button...

  • Page 20: Dimensions

    2.2 Dimensions 2.2.1 B-Series Boilerhouse (70 & 90 Output Models) MODEL B70 / B90 / B1 396 573 383 574 27 98 78 2.2.2 B-Series Boilerhouse (120 Output Model) MODEL B120 397 383 662 273 575 52 42 03 Page 8...
  • Page 21 2.2.3 U-Series Utility (70 & 90 Output Non-Combi Models) MODEL U70 & U90 600 43 865 7 5 583 04 04 54 42 34 666 50 86 9 UP70 & UP90 600 43 865 7 5 583 04 04 54 42 34 666 50 86 9 86 2 2 560 75 US70 & US90 600 43 865 7 5 583 04 04 54 42 34 666 50 86 9 86 2 2 560 75 2.2.4 U-Series Utility (120 Output Models)
  • Page 22 2.2.5 U-Series Utility (UC Models) MODEL UC70 & UC90 595 865 600 54 04 5 9 674 766 34 207 388 04 97 2.2.6 K-Series Kabin Pak (K, KP & KS Models) MODEL K70 & K90 43 900 40 40 20 705 50 50 60 93 773 67 90 7 KP70 & KP90 700 43 900 40 40 20 705 50 50 60 93 773 67 90 7...
  • Page 23 2.2.7 K-Series Kabin Pak (120 Output Models) MODEL K120 43 900 40 67 7 705 50 40 773 60 20 50 KP120 700 43 900 40 67 7 705 50 40 773 60 20 50 2.2.8 K-Series Kabin Pak Base Tray (K, KP & KS Models) Page 2...
  • Page 24 2.2.9 K-Series Kabin Pak (KC Models) MODEL KC70 & KC90 600 900 700 773 95 60 67 67 7 705 50 50 20 209 396 2.2.10 K-Series Kabin Pak Base Tray (KC Models) Page 22...

  • Page 25: Flue Options & Dimensions

    Note that with Class D gas oil the flue MUST exhaust at more than 2m above the surrounding ground level. The low-level flue supplied as standard with all Kabin Pak models is NOT suitable for Class D gas oil. Alternative options are available – please contact Warmflow. 2.3.1 ‘Easy Fit’ Low Level Balanced Flue Ø125...

  • Page 26: Technical Data

    0.82 Gas Oil Settings Nozzle make Danfoss 60°S Danfoss 60°S — 0.55 size Pump — 2.0 .0 .0 .0 .0 Contact Warmflow Pressure — for diesel settings Max CO — 2.0 2.0 2.0 2.0 2.0 Approx Fuel litres/h — .72 2.30 2.30 2.53...
  • Page 27 0.82 Gas Oil Settings Nozzle make Danfoss 60°S Danfoss 60°S — 0.55 size Pump — 2.0 .0 .0 .0 .0 Contact Warmflow Pressure — for diesel settings Max CO — 2.0 2.0 2.0 2.0 2.0 Approx Fuel litres/h — .72 2.30 2.30 2.53...
  • Page 28 0.82 Gas Oil Settings Nozzle make Danfoss 60°S Danfoss 60°S — 0.55 size Pump — 2.0 .0 .0 .0 .0 Contact Warmflow Pressure — for diesel settings Max CO — 2.0 2.0 2.0 2.0 2.0 Approx Fuel litres/h — .72 2.30 2.30 2.53...
  • Page 29 2.4.4 U-Series Utility – System (US) MODEL US70 US90 17.0 22.8 Nominal 4.0 20.5 20.5 26.4 Heat Output Btu/hr 48,000 58,000 70,000 70,000 78,000 90,000 Nominal 5.3 18.4 24.4 Heat Input Btu/hr 52,50 62,600 75,000 75,000 83,175 95,550 Burner RDB 2.2 5-2 RDB 2.2 2-26 Head TSH T2SH...
  • Page 30 2.4.5 U-Series Utility – Combi (UC) MODEL UC70 UC90 Nominal 4.0 17.0 20.5 20.5 22.8 26.4 Heat Output Btu/hr 48,000 58,000 70,000 70,000 78,000 90,000 Nominal 5.3 18.4 24.4 Heat Input Btu/hr 52,50 62,600 75,000 75,000 83,175 95,550 Burner RDB 2.2 5-2 RDB 2.2 2-26 Head TSH T2SH...
  • Page 31 Gas Oil Settings (see note below) Nozzle make Danfoss 60°S Danfoss 60°S — 0.55 size Pump — 2.0 .0 .0 .0 .0 Contact Warmflow for diesel settings. Pressure — Max CO — 2.0 2.0 2.0 2.0 2.0 Also, see note below. Approx Fuel litres/h —...
  • Page 32 Gas Oil Settings (see note below) Nozzle make Danfoss 60°S Danfoss 60°S — 0.55 size Pump — 2.0 .0 .0 .0 .0 Contact Warmflow for diesel settings. Pressure — Max CO — 2.0 2.0 2.0 2.0 2.0 Also, see note below. Approx Fuel litres/h —...
  • Page 33 Note: With Class D gas oil the flue MUST exhaust at more than 2m above the surrounding ground level. The low-level flue supplied as standard with all Kabin Pak models is NOT suitable for Class D gas oil. Alternative options are available – please contact Warmflow. Page 3...
  • Page 34 Note: With Class D gas oil the flue MUST exhaust at more than 2m above the surrounding ground level. The low-level flue supplied as standard with all Kabin Pak models is NOT suitable for Class D gas oil. Alternative options are available – please contact Warmflow. Page 32...

  • Page 35: Electricity Supply & Wiring Details

    3.0 Electricity Supply & Wiring Details 220 – 240V. PH, 50 Hz The boiler/burner and other external electrical equipment should be wired with heat resistant cable via a fused double pole isolating switch which should be fitted with a 5 amp fuse. The appliance must be effectively earthed and all external wiring should comply with current IEE Regulations.

  • Page 36: Combi Wiring Details

    3.3 Combi Wiring Details 3.3.1 Wiring Diagram Page 34...
  • Page 37 3.3.2 Wiring Schematic Page 35...
  • Page 38 3.3.3 Fitting a Room Thermostat to a Combi ROOM THERMOSTAT Remove the purple wire from no 5 and no 28 on the PCB and wire the thermostat as shown. The room thermostat should be located where it is not subjected to extraneous heat gains, direct sunlight or draughts. 3.3.4 Fitting Frost Protection to a Combi PIPE THERMOSTAT FROST THERMOSTAT...

  • Page 39: Installation Of A Warmflow Combi Optional Programmer (Pc)

    3.4 Installation of a Warmflow Combi Optional Programmer (PC1) Disconnect the electrical supply. Drop down control box front (2 screws). Disconnect the 6 pin plug from the CH/HW on/off switched. With a sharp knife cut out the outline of the panel knockout through the facia label from the front of the panel.

  • Page 40: Remote Timers For Combis

    3.5 Remote Timers for Combis 3.5.1 Installation of a remote two channel programmer (option 1) Connecting the programmer in this manner will bypass the CH and HW on/ off switches on the boiler control panel. A separate connection to the boiler 3 pin mains plug is NOT required. Inside the boiler control panel, remove the purple and white wires connecting terminals 5 and 3 on the terminal block with terminals 9 and 28 on the PCB.

  • Page 41: Optional Programmer (Pu) For Non-Combi Models

    3.6 Optional Programmer (PU1) for Non-Combi Models 3.6.1 Programmer Control Box Wiring Diagram 3.6.2 General Requirements The optional programmer as supplied will supply power to the pump and burner via the central heating channel. When connecting to external controls, eg ‘Y’ plan or ‘S’ plan it will be necessary to remove the loop between 3 and 2 on the programmer terminal block.
  • Page 42 3.6.3 Programmer Installation Disconnect electrical supply. Drop down control box front (2 screws). Secure control box to the horizontal casing bracket (2 screws) and right hand side ( screw). Connect the thermostat, circulating pump and the mains supply to the leads on the rear of the control box.
  • Page 43 3.6.4 Honeywell ‘Y’ Plan – Independent CH & DHW (Fully Pumped Only) Note: Before fitting programmer remove loop between 3 and 2 on the terminal boiler control panel terminal block. Page 4...
  • Page 44 3.6.5 Honeywell ‘S’ Plan – Independent CH & DHW (Fully Pumped Only) Note: Before fitting programmer remove loop between 3 and 2 on the terminal boiler control panel terminal block. Page 42...

  • Page 45: Oil Supply

    4.0 Oil Supply Oil Tank Steel tanks constructed to BS799 : PART 5 should be painted on the outside only and mounted on piers to prevent corrosion. Plastic oil tanks are also available and can be suitable for installation at ground level. However, oil should never be stored in translucent plastic containers.

  • Page 46: Two Pipe System

    4.2 Two Pipe System Total Maximum Pipe Length (m) Head H(m) ID 8mm ID 10mm 4.3 De-aerator System For maximum pipe length and lift contact de-aerator manufacturer. Page 44...

  • Page 47: One Pipe Lift System

    4.4 One Pipe Lift System Note: The pump vacuum should not exceed a maximum of 0.4 bar. Above this gas is released from the oil thus leading to burner lock out. Total Maximum Pipe Length (m) Head H(m) ID 8mm ID 10mm Page 45...

  • Page 48: Flues

    5.0 Flues 5.1 Installation of Flues Easy Fit Low Level Balanced Flue (BF-R) Easy Fit High Level Balanced Flue (HLBF) Page 46...
  • Page 49 5.1.1 Installation of a Low Level Balanced Flue (BF-R) Make a suitable sized hole in the wall for the flue. For the dimensions of the boiler, see the Dimensions Section of this manual. For the dimensions of the flue system, see the Flue Kits & Dimensions Section of this manual. Note: The cavities around the opening must be sealed and protected by a non- combustible sleeve.

  • Page 50: Conventional Flues

    5.2 Conventional Flues TERRACOTA POT Considered good practice but is not a guarantee of The flue system should be designed overcoming down drafts in accordance with local bye-laws Cowls and pots that and the Building Regulations. Draught may restrict the flue should not be used stabilisers are not recommended for oil fired boilers.
  • Page 51 MINIMUM DISTANCES TO TERMINALS IN MILLIMETRES AS MEASURED FROM THE TOP OF THE CHIMNEY OR THE RIM OF A LOW LEVEL DISCHARGE OPENING Directly below an opening, air brick, opening window etc. Horizontally to an opening, air brick, opening window etc. Below a gutter, eaves or balcony with protection. Below a gutter or a balcony without protection. From vertical sanitary pipework. From an internal or external corner or surface or boundary alongside the terminal.

  • Page 52: Air Supply For Combustion & Ventilation

    6.0 Air Supply for Combustion & Ventilation (see BS5410) 6.1 Open Flue Boilers When the boiler is sited in a cellar where the only access for combustion and ventilation air is at high level then the combustion air should be ducted to low level. Combustion Air Supply Boiler in Room Boiler in Compartment 6.2 Balanced Flue Boilers – Boilers in a Compartment Air Supply for Ventilation...

  • Page 53: Installation Requirements

    7.0 Installation Requirements The boiler installation must be in compliance with BS540 : PART  and the Building Regulations. 7.1 General Requirements 7.1.1 Hearth The boiler hearth temperature is between 50°C and 85°C and should be stood on a rigid, non-porous, non-combustible base, which is not softened by warmth, to comply with the Building Regulations.

  • Page 54: Sealed Systems

    7.2 Sealed Systems 7.2.1 Expansion Vessel Refer to BS7074: PART  and BS5449 for details of expansion vessel sizing. The values given in the table below are for total system volumes which include the primary water capacity of the boiler which can be found in the Technical Data section of this manual.

  • Page 55: Combi Domestic Hot Water

    Although many of the DHW components are designed to resist lime scale formation, in areas of hard water it may still be necessary to fit an inline chemical water softener. For further information contact Warmflow and your local water company. 7.3.3 Hot Water Pipework To ensure economic use, the pipe runs between the boiler and the taps should be as short as possible and insulated to reduce heat loss.

  • Page 56: Burners

    8.0 Burners 8.1 RDB Burner 1. Pump 5. Air Damper Adjustment Screw 2. Control Box 6. Air Tube Connection (Supplied with BF Kit) 3. Reset Button with Lock-Out Lamp 7. Pump Pressure Adjustment Screw 4. Flange with Insulating Gasket 8. Pressure Gauge Port 8.2 Oil Pump The burner is supplied for use with a one pipe system. For use on a two pipe system, it is necessary to remove the return port plug and fit a small by-pass plug as shown.

  • Page 57: Electrode Setting

    8.3 Electrode Setting When removing or replacing the nozzle, move the electrodes forward to avoid the risk of damage. The electrodes are slackened by unscrewing the brass post that passes from the electrode holder out of the side of the burner. When work is complete, ensure the electrodes are reset as shown and secured by tightening the brass post. 8.4 Burner Start-Up Cycle Normal Lock-out due to failure to light Thermostat Motor Ignition Transformer Valve Flame Lock-Out Lamp ~ 12s ~ 12s ~ 5s 8.5 Air Damper Adjustment The air damper is set in factory. This regulation is purely indicative. Each installation however, has its own working conditions: actual nozzle output;...

  • Page 58: Commissioning & Servicing

    9.2 Servicing 9.2.1 General Requirements It is recommended that the appliance is serviced annually by a Warmflow or an OFTEC registered service technician in accordance with the recommendations laid out in OFTEC’s technical information book 2 – ‘Pressure Jet Appliances –...

  • Page 59: Burner Fault Finding

    10.0 Burner Fault Finding 10.1 Riello RDB Page 57...

  • Page 60: Combi Fault Finding . Central Heating

    11.0 Combi Fault Finding 11.1 Central Heating Switch on power, set selectors for CH on and DHW off. Set all controls to call for heat. Check all valves are open and Does the Do radiators pump is working, check pressure, burner fire? get hot? check all air is vented.

  • Page 61: Domestic Hot Water

    11.2 Domestic Hot Water Switch on power, set selectors to CH off and DHW on. Is there continuity Is DHW pump Check wiring, replace across connection 20 working? tank thermostat. and 21 on the PCB? Is there continuity Check wiring, replace across 25 and 27? relay, replace PCB.

  • Page 62: Optional Boiler Mounted Digital Timer

    12.0 Optional Boiler Mounted Digital Timer 12.1 Operating Instructions 12.1.1 After Installation When you first install the Cr2032 battery (by removing the clear plastic strip from the rear of the timer) you must press the ‘RESET’ button, the LCD display will display fully for 3 seconds. Then LCD display will change to ‘5:2d’. You can press DAY button to select ‘7d’, ‘24H’...
  • Page 63 12.1.2 Built in Programme For convenience, the timer module has a built in programme, however, it can be easily adjusted (see section 2.5 To Change the Programmes). The timer offers 3 options for both CH and HW programme period. OFF: Off all the time. AUTO: To run your time schedule for period one or two or three each day.
  • Page 64 12.1.5 To Set Programme Period Press and hold DAY button and press MIN until the correct programme period is displayed. Set Day Programme Period 1 On/Off Mon – Fri Mon – Fri Time Schedule Time Schedule Switching CH/CH1 HW/CH2 CH/CH1 HW/CH2 PERIOD  ON 06:30 06:30 07:30 07:30 PERIOD  OFF 22:30 22:30...
  • Page 65 12.1.8 Manual Select Press SELECT to toggle through ON / AUTO / OFF modes as indicated by the timer status. ON mode turns on the timer. OFF mode turns off the timer. AUTO mode runs the set programme. 12.1.9 Manual Select This function is only applicable when your timer is set on AUTO mode. You can temporarily override the normal switching times by pressing the ADV key.

  • Page 66: Spares

    13.0 Spares 13.1 RDB 2.2 Spares No CODE 3514157 3514257 3514557 DESCRIPTION No CODE 3514157 3514257 3514557 DESCRIPTION 300852 • • • Gasket 5 3000439 • • • Pump Seal 3006384 • • • Flange 6 3008654 • • • Pump 300255 •...

  • Page 67: Pipe Spares

    13.2 Pipe Spares UP70, UP90, US70 & US90 Models Pump Flow Pipe 3015 From Boiler to Pump 3016 Expansion Vessel Pressure Hose 3020 KP70, KP90, KS70 & KS90 Models Pump Flow Pipe 3015 From Boiler to Pump 3017 Expansion Vessel Pressure Hose 3020 UP20 & KP20 Models From Boiler to Pump Pump Flow Pipe 3355 3015 Page 65...
  • Page 68 13.2 Pipe Spares cont’d UC70, UC90, KC70 & KC90 Models From Boiler to Gate Valve From Gate CH Flow from Pump 3097 Valve to Pump 3100 3098 Return from both CH & Expansion Vessel Plate Heat Exchanger Pressure Hose 3219 3020 From Heat Store to From Flowswitch to Mixing From Plate Heat Plate Heat Exchanger Valve & Plate Heat Exchanger Exchanger to Mixing Valve 1997 1992 1994 DHW Flow from Mixing Valve From Strainer to Flowswitch & Filling Loop 3101 3099 Page 66...

  • Page 69: Short Parts List - Boiler

    13.3 Short Parts List – Boiler Part Description Code Flow Switch 476 Tank & Boiler Control Thermostat 23 Boiler Limit Thermostat (Combi Models) Tank Limit Thermostat 226 Pump Overrun Thermostat 308 Plate Heat Exchanger Twin Head Pump 230 5/60 Pump (for replacement head) 3 Pole Relay 827 Auto Air Vent C/W Check Valve Pressure Relief Valve...

  • Page 70: Your Guarantee, Terms & Conditions

    Warmflow against defective parts and faulty workmanship, for period of 2 months Warmflow will accept no liability for the from the date of installation, providing the cost of repairs resulting from incorrect boiler is installed and commissioned in...

  • Page 71: Commissioning/Service Record

    Boiler Serial No |__|__|__|__|__|__|__|__| In order that your boiler gives you many years of economical trouble free use and to validate the warranty, this boiler must be commissioned upon installation and serviced annually. Contact Warmflow for an approved engineer within your area.
  • Page 72 Notes Page 70...
  • Page 73 Notes Page 7...
  • Page 74 Notes Page 72...
