WarmFlow WOOD Quick Start User Manual

Pellet boiler
Hide thumbs

Advertisement

Quick Links

Download this manual
WOOD
PELLET BOILER
Q U I C K S TA RT U SER G UID E

Advertisement

loading
Need help?

Need help?

Do you have a question about the WOOD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WarmFlow WOOD

Summary of Contents for WarmFlow WOOD

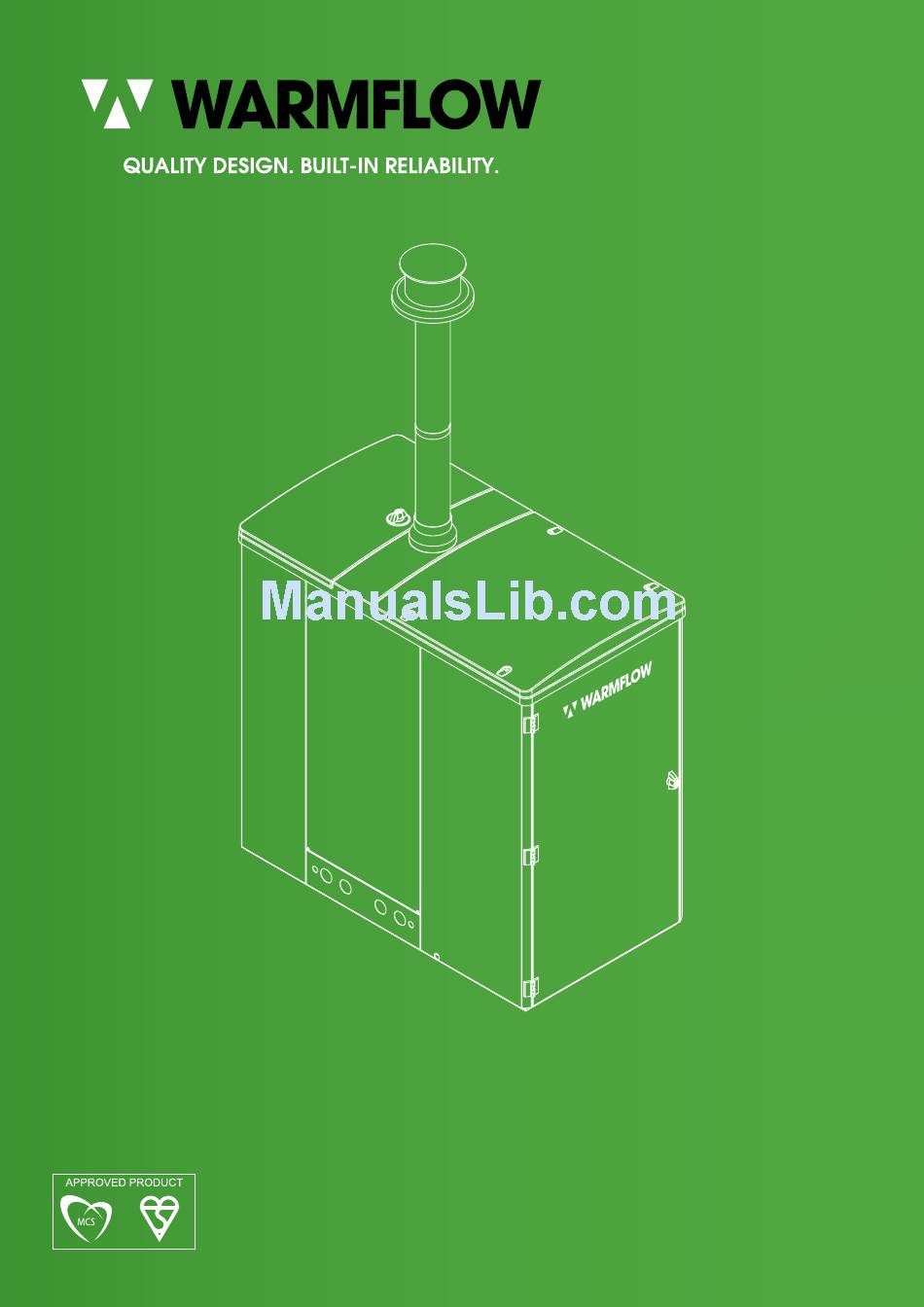

  • Page 1 WOOD PELLET BOILER Q U I C K S TA RT U SER G UID E...
  • Page 2 INTRODUCTION TO THIS GUIDE Thank you for purchasing a Warmflow wood pellet boiler. Your biomass boiler may operate differently compared to other heating appliances you may be accustomed to. This quick guide will familiarise you with some of the basic...

  • Page 3: Getting To Know Your Boiler

    Getting to know your boiler Flue terminal Pellet hopper door Service lid Interlock door release Combustion door Front casing door...
  • Page 4 Controller...

  • Page 5: Controller Keys

    Menu Enter Escape Down The Warmflow Wood Pellet Controller is a simple, intuitive and easy-to- use system with six simple buttons to help you navigate through the menus. Alarm - This key can be used to display a list of active alerts and alarms from any menu page.

  • Page 6: Boiler Status

    Boiler Status The home screen provides an at a glance overview of the boiler status. Under normal operating conditions three ticks will be displayed. However, the home screen may also display various combinations of ticks, alerts and error icons. Boiler Fuel Clean Boiler operating...
  • Page 7 Main Menu - The main menu (accessed via the menu key) can be scrolled using the up and down keys and will allow you to navigate the menu. Alarms - If there are no active alarms or alerts you will see the screen above.
  • Page 8 You may have to make a few changes to your time clock settings when you switch to a wood pellet boiler. When the signal for heat is sent the boiler begins a process to light a flame before any heat is generated.
  • Page 9 How to fill your boiler You will need: • En Plus A1 Wood Pellets Time to complete MINUTES...
  • Page 10 What pellets can I use? The Warmflow Wood Pellet boiler has been designed for use with only EN Plus A1 wood pellets. Please visit LOOK www.pelletcouncil.org.uk FOR THIS for a register of wood BADGE pellet providers. Wood pellets need to be stored in a suitable, dry environment.
  • Page 11 How do I know when to add more pellets? You will be alerted by the boiler controller when the pellet level is running low. An alert icon will display on the home screen, the alarm button will flash red and a ‘Pellet Level Low’ message will be displayed when the alarm key is pressed.
  • Page 12 DID YOU KNOW: CAUTION: The hopper has Sharp Objects room for 120Kg of pellets, plenty to keep your boiler stocked up and home warm. Step 1: Go to the boiler, open the pellet hopper door and insert the Safety Stay Bar. Upon opening the hopper door you will see the safety grate covering the hopper.
  • Page 13 When complete refer to the controller to ensure the boiler is ready for use. TOP TIP: Make sure you keep the wood pellets and hopper compartment dry. Avoid filling if it is raining.
  • Page 14 How to clean your boiler You will need: • Safety gloves • Dustpan and brush Time to complete MINUTES...
  • Page 15 Why clean your boiler? Cleaning your boiler regularly helps ensure it can burn cleanly and efficiently. It also prolongs the life of the boiler and helps ensure smooth operation. DID YOU KNOW: The length of time between cleans will depend on how often it is used.
  • Page 16 When do I need to clean my boiler? The boiler will let you know when it needs to be cleaned. Similar to the low fuel alert, an alert icon will display on the home screen, the alarm button will flash red and an alert message will be displayed when the alarm key is pressed.
  • Page 17 How to clean your boiler Step 1: Before you clean the boiler you need to put it into clean mode. This sequence will guide you through the cleaning process, step-by-step. 1 Press the ‘Prg’ (Menu) button on the controller 2 Select the ‘Cleaning’ DID YOU KNOW: If you don’t clean option...
  • Page 18 Step 2: On the screen that appears you will see a bar indicating progress through the shutdown sequence if your boiler is still warm. As the boiler cools the bar will allow you to keep an eye on progress. Once the shutdown procedure has completed the screen will update and move you to the next step.
  • Page 19 Step 3: When the shutdown procedure has completed the controller will let you know that it’s “Ready to clean”. When this message is DID YOU KNOW: displayed, assemble the During the clean sequence the tools required for cleaning interlock door and make your way to the won’t open until boiler.
  • Page 20 Step 4: Open the front casing door. Once opened you should see the interlock release button located in the centre of the panel. The green light should be illuminated indicating the door is ready to open. If not please return to the controller and check that the screen indicates the boiler is ready to be cleaned.
  • Page 21 Step 5: Ensure the combustion door handle is pushed down fully, press and hold the interlock release button then lift the combustion door handle upward. Pull the combustion door outwards revealing the combustion pot and ash pan. Ash pan CAUTION: Hot Surfaces Burner pot Burner pot shelf...
  • Page 22 Step 7: Remove the pot by undoing the toggle latch on each side of the pot. Remove any ash and debris and ensure the air flow holes are clear of obstruction. Air flow holes Toggle latch CAUTION: Hot Surfaces...
  • Page 23 Step 8: Remove the ash pan from its compartment and dispose of waste in line with local regulations. While the ash pan is removed for emptying, clean both the ash pan and pot compartments of any ash build up. Ash pan compartment compartment CAUTION:...
  • Page 24 Step 9: When both compartments have been cleaned, replace the empty ash pan and burner pot. Ensure that the pot is correctly located on the pot shelf. Secure using the toggle latches. Close the combustion door and ensure the combustion door handle is pushed down firmly.
  • Page 25 Step 10: Return to the controller, you should see that the screen has advanced to a message asking you to confirm that the pot and pan are clean and in-place. Press the enter key to confirm that the ash pan and combustion pot have been cleaned and put in place.
  • Page 26 Servicing Why you need it serviced • Ensure safe and efficient burning • Help prolong the life of your boiler...
  • Page 27 To have your wood pellet boiler serviced please contact Warmflow for a list of your nearest approved service agents.
  • Page 28 GROUND Head Office (NI) Warmflow T. 048 9262 1515 Lissue Industrial Estate F. 048 9262 0869 Moira Road, Lisburn E. sales@warmflow.co.uk BT28 2RF T. 028 9262 1515 T. 01952 607750 F. 028 9262 0869 F. 01952 603983 E. sales@warmflow.co.uk E. salesgb@warmflow.co.uk...
