Back Panel I/O Connectors

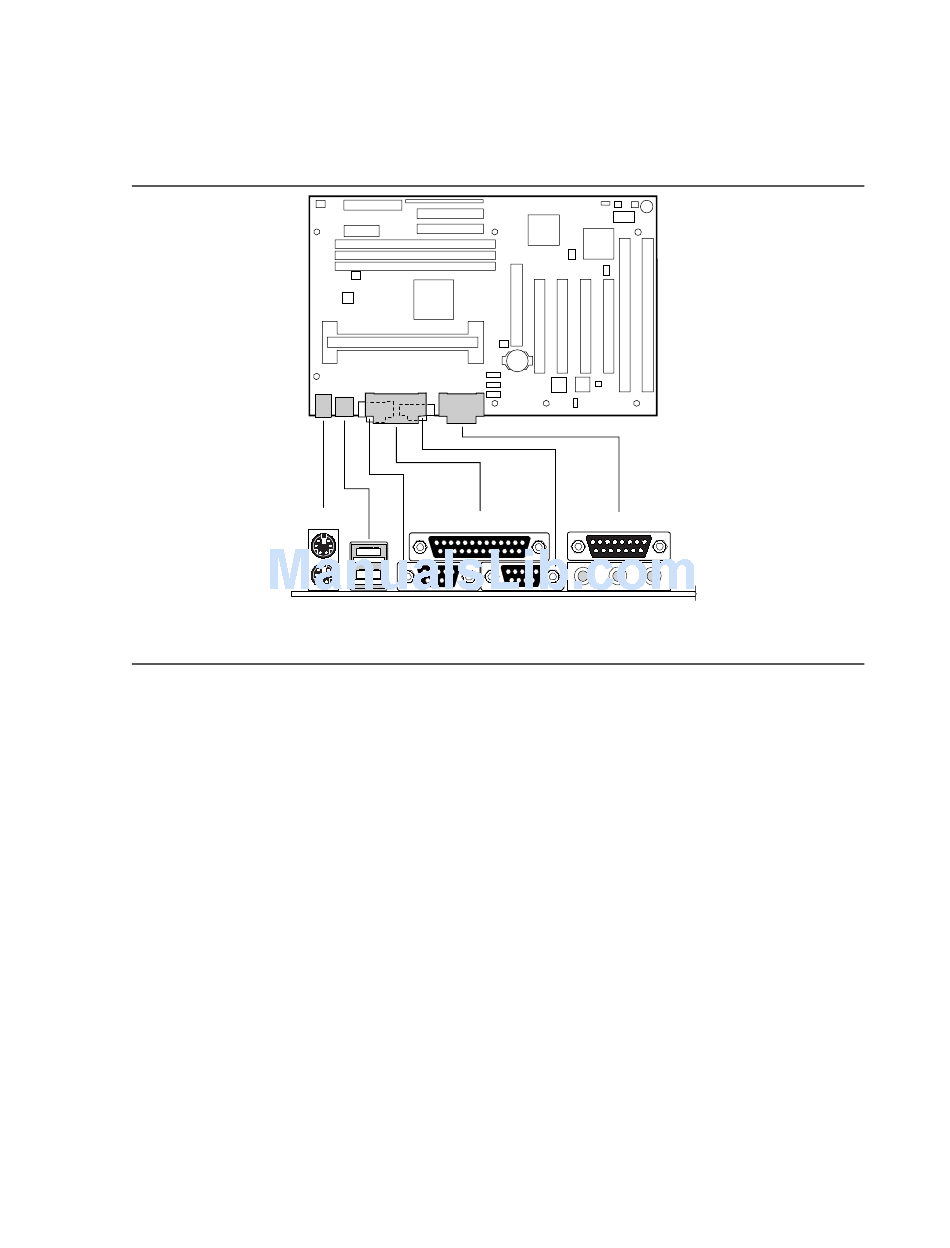

Figure 2 shows the back panel connectors on the motherboard.
†
A PS/2 connector (mouse or keyboard)
B Parallel port connector
C MIDI/game port connector (optional)
D PS/2 connector (mouse or keyboard)
E USB connectors
A
B
D F
E
Figure 2. Back Panel I/O Connectors
AL440LX Motherboard Product Guide
C
G H J
I
OM06235
F Serial port 1 connector
G Serial port 2 connector
H Audio Line Out jack (optional)
I Audio Line In jack (optional)
J Audio Mic In jack (optional)
