Installing the Motherboard
3. Carefully rock the tool back and forth until the heatsink support base disengages from the holes
in the motherboard (Figure 9). There is an audible click when the base disengages from the
motherboard.
4. Remove the tool and the heatsink support base from the motherboard.

Upgrading the Processor

Refer to the boxed Intel Pentium II processor documentation for installation instructions.
18

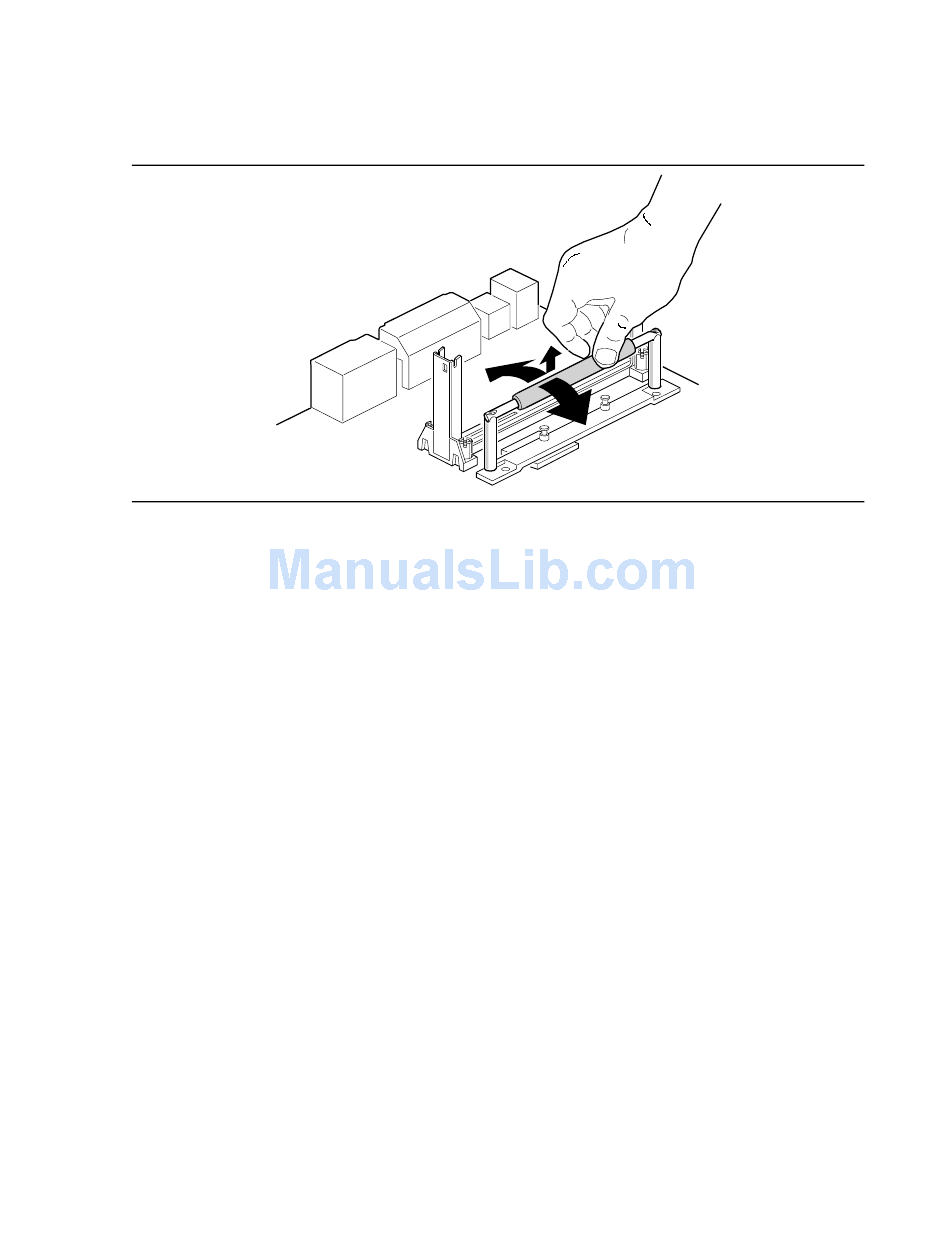

Figure 9. Using the Heatsink Support Base Removal Tool
OM06233
