" Sony Super HAD II CCD
1
3
3.6mm lens
480 TV lines
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.
EV-1125-N3BQ (NTSC)
EV-1125-P3BQ (PAL)

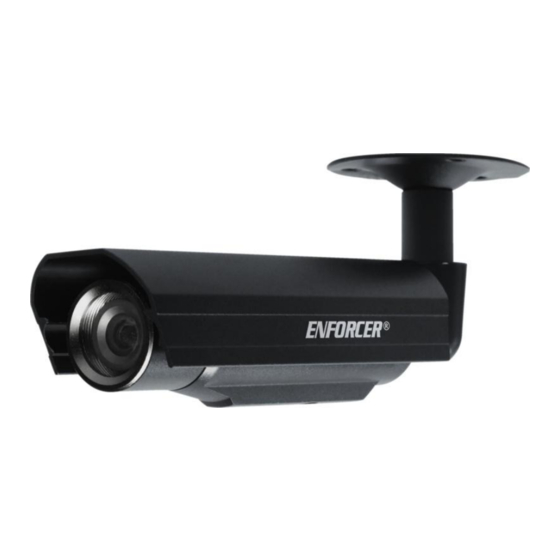

Mini Bullet Camera
Manual
Weatherproof (IP66)
12VDC Operation
Low current draw: 150mA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER EV-1125-N3BQ
Summary of Contents for ENFORCER EV-1125-N3BQ
- Page 1 EV-1125-N3BQ (NTSC) EV-1125-P3BQ (PAL) Mini Bullet Camera Manual Weatherproof (IP66) ” Sony Super HAD II CCD 3.6mm lens 12VDC Operation 480 TV lines Low current draw: 150mA Note: Products with model numbers that end with “Q” or that have a round green “Q” sticker are RoHS compliant.
-
Page 2: Specifications
ENFORCER Mini Bullet Camera Specifications: Model # EV-1125-N3BQ EV-1125-P3BQ Type Bullet Camera ” Sony Super HAD II Color CCD Resolution 480 TV lines Pickup elements 768 x 494 pixels 752 x 582 pixels Video output format NTSC Video output 1.0Vp-p composite video, 75Ω... - Page 3 ENFORCER Mini Bullet Camera Overview: Alternate Mounting Method Remove the base from the bottom by twisting the bracket screw. Attach the base to the back of the camera. Sunshield Female BNC connector Camera Bracket screw Mounting bracket DC plug with...
-
Page 4: Troubleshooting
ENFORCER Mini Bullet Camera Troubleshooting Check that the camera is powered up. Check that the power supply’s polarity is correct. The screen is blank. Check that the monitor is powered up. Check that the video cable connecting the camera to the monitor is connected properly.
