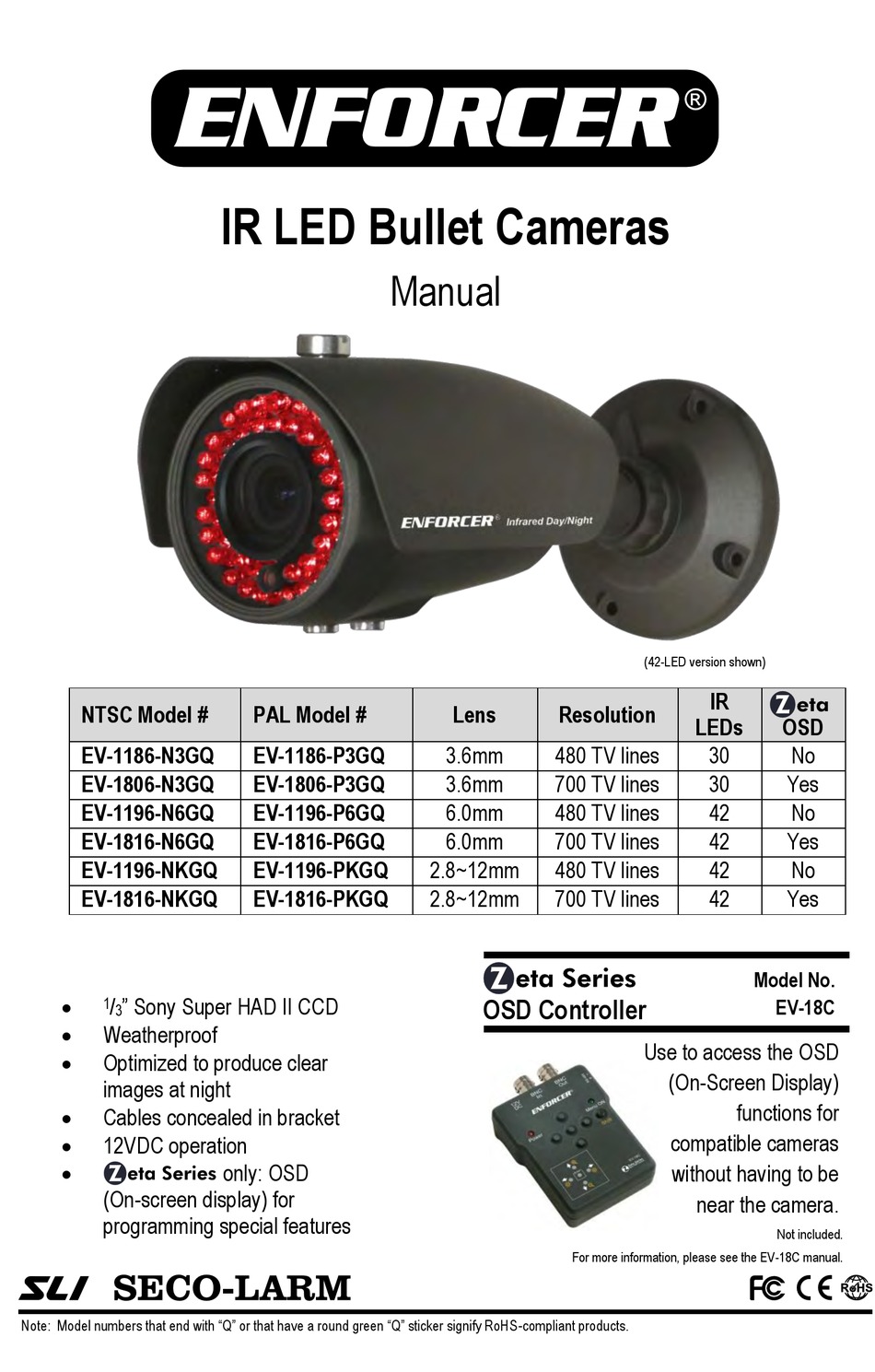

ENFORCER EV-1186-N3GQ Manual

NTSC Model #
EV-1186-N3GQ
EV-1806-N3GQ
EV-1196-N6GQ
EV-1816-N6GQ
EV-1196-NKGQ
EV-1816-NKGQ

/ " Sony Super HAD II CCD
1
3

Weatherproof

Optimized to produce clear
images at night

Cables concealed in bracket

12VDC operation

(On-screen display) for
programming special features
Note: Model numbers that end with "Q" or that have a round green "Q" sticker signify RoHS-compliant products.
IR LED Bullet Cameras
PAL Model #
EV-1186-P3GQ
EV-1806-P3GQ
EV-1196-P6GQ
EV-1816-P6GQ
EV-1196-PKGQ
EV-1816-PKGQ
only: OSD
Manual
Lens
3.6mm 480 TV lines
700 TV lines
3.6mm
6.0mm 480 TV lines
700 TV lines
6.0mm
2.8~12mm 480 TV lines
700 TV lines
2.8~12mm
OSD Controller

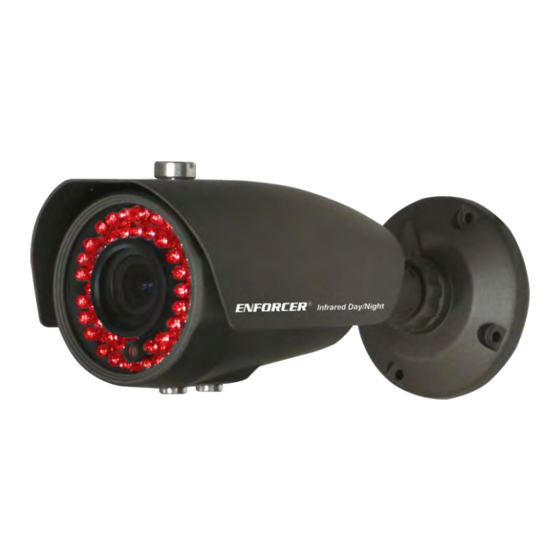

(42-LED version shown)
IR
Resolution
LEDs
30
30
42
42
42
42
Use to access the OSD
(On-Screen Display)
compatible cameras
without having to be
near the camera.
For more information, please see the EV-18C manual.
OSD
No
Yes
No
Yes
No
Yes
Model No.
EV-18C
functions for
Not included.
