ENFORCER EV-1223C12 Manual

ENFORCER CCD D C
OME AMERA
TROUBLE SHOOTING
The screen is blank • Check that the dome camera is powered up.
• Check that the monitor is powered up.
• Check that the video cable connecting the camera to the monitor is connected properly.
• Clean the lens (using a soft, clean cloth).
The screen image is dim
• Check that the light source is adequate.
• Clean the dome (using a soft, clean cloth).
• Adjust the monitor's contrast knob.
The screen image has poor contrast
• Change the position of the camera
The screen image flickers • Change the position of the camera
The screen image is distorted
• Change the position of the camera
The camera case is hot
• Check that the correct power supply is in use.
IMPORTANT
Users and installers of this product are responsible for ensuring this product complies with all national, state, and local laws
and statutes related to monitoring and recording audio and video signals. SECO-LARM will not be held responsible for the use
of this product in violation of any current laws or statutes.
WARNING
Stop using the camera if you see a malfunction like smoke or unusual heat, as it could cause fire or electric shock. Do not modify this
!
device, as there are no field-serviceable components inside.
This product was designed for indoor use only. Mounting outdoors or exposure to rain or moisture could cause a dangerous electric shock,
!
damage the device, and void the warranty. Do not modify this device, as there are no field-serviceable components inside.
FCC COMPLIANCE STATEMENT
Information to the user: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service
for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM's obligation is limited to the repair
or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair, or
alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment
is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser's exclusive remedy, shall be limited to replacement or repair only, at SECO-LARM's
option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damages of any
kind to the purchaser or anyone else.
NOTICE
The information and specifications printed in this manual are current at the time of publication. However, the SECO-LARM policy is
one of continual development and improvement. For this reason, SECO-LARM reserves the right to change specifications without
notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2006 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in part,
without the written permission of SECO-LARM.
SECO-LARM SECO-LARM SECO-LARM SECO-LARM SECO-LARM U.S.A., Inc. U.S.A., Inc. U.S.A., Inc. U.S.A., Inc. U.S.A., Inc.
®
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326
Manual
File:DT/DTP/MiEV1223C12_06B.PMD
Website: www.seco-larm.com
E-mail: sales@seco-larm.com
ENFORCER

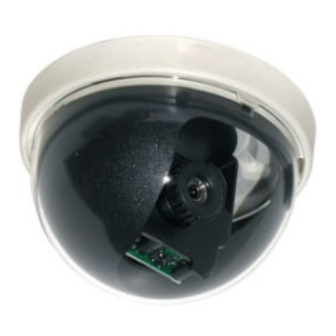

1/3" CCD Color Dome Camera
Model
Number
EV-1223C12
EV-122C-2
EV-1253C12
EV-125C-2
1/3" CCD B/W Dome Camera
Model
Number
EV-122B-4
EV-125B-4
*
All viewing angles are approximate
