- Page 1 CABINET PARTS 36" BOTTOM MOUNT BUILT IN REFRIGERATOR For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 6−03 Litho In U.S.A. (tpm) Part No. 8198081...
-

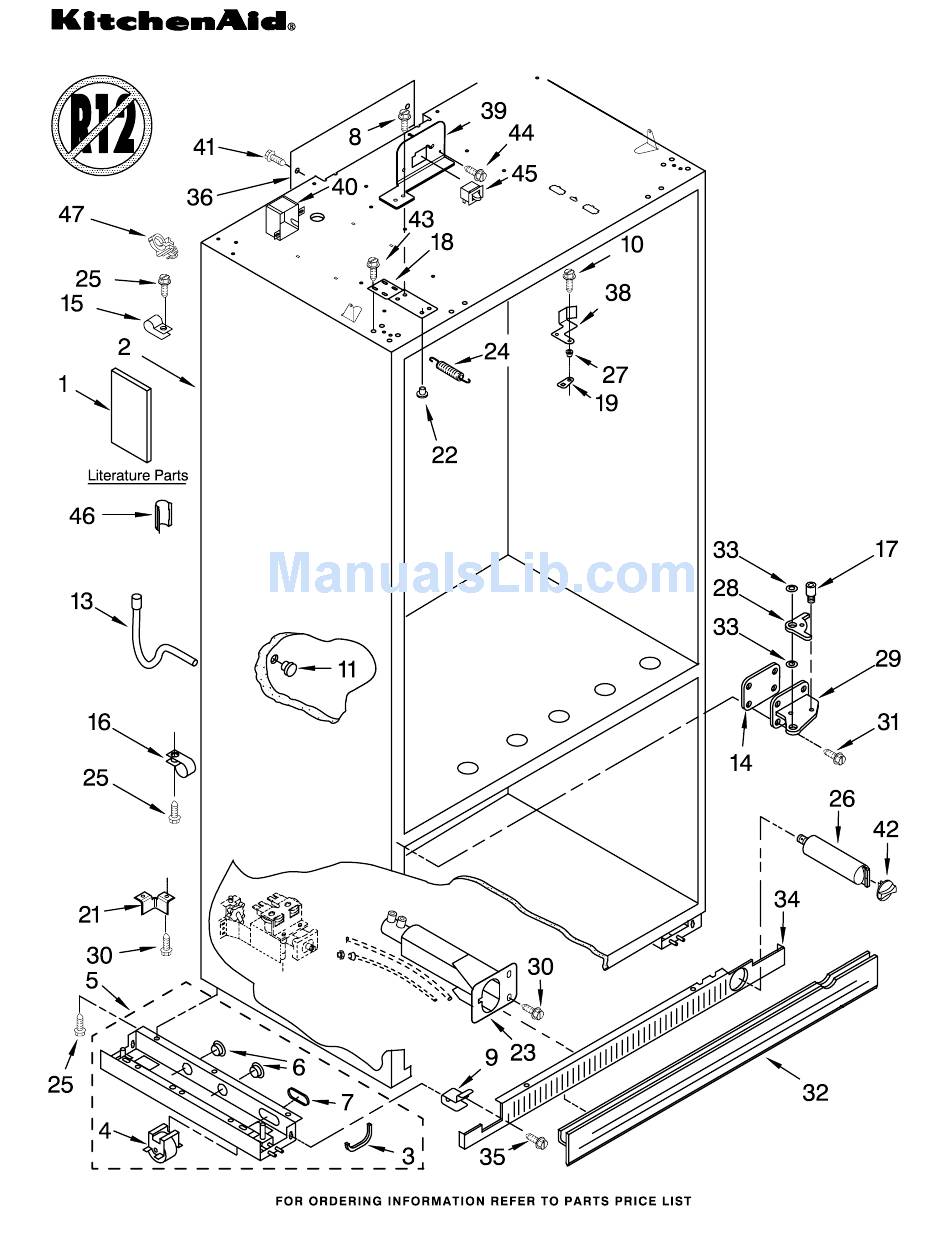

Page 2: Cabinet Parts
For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 Illus. Part DESCRIPTION Literature Parts LIT2254715 Use & Care Guide LIT2221286 Energy Label LIT2254723 Service & Wiring Sheet LIT628370 Modular Icemaker Service Sheet LIT2215852 Installation Instructions Cabinet (Not A Serviceable Part) 2005004 Grommet, Tube Crossover 1112023 Roller, Front &... - Page 3 CABINET AND BREAKER TRIM PARTS For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 8198081 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim Right Side 2215919B Black 2215919T Biscuit 2215919W White 8201535 Etched Aluminum 1163283 Screw 2254724 Cabinet, Trim (Bottom) 486194 Screw...
- Page 4 TOP GRILLE AND UNIT COVER PARTS For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 Illus. Part DESCRIPTION Top Grille Assembly 2215973W White 2215973B Black 2215973T Biscuit 2215973 Etched Aluminum 2209490 Cover, Unit 2215830 Back Panel 2209492 Guard, Wiring 487415 Screw 2187423 Wire Assembly 2215678 Baffle−Air,...
- Page 5 LINER PARTS For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 8198081...
- Page 6 For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 Illus. Part DESCRIPTION Liner, Refrigerator (Not Servicable) Liner,Freezer (Not Servicable) 2215610 Cover, Heat Exchanger 2215827 Diffuser Cap, Left Side 2005931 Diffuser Cap, Right Side 2171846 Release Valve 487539 Screw, 8−15 x 1/2 486194 Screw...
-
Page 7: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 8198081... - Page 8 REFRIGERATOR SHELF PARTS For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 Illus. Part DESCRIPTION Slide, Freezer Basket 2221278 Right Side 2221279 Left Side 9751808 Screw, 8−15 x 1.00 8281158 Screw, 8−18 x 1.375 Spacer, Crisper 2005138 Right Side 2005139 Left Side 2179404 Rack, Wine...
- Page 9 FREEZER DOOR AND BASKET PARTS For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 8198081...
- Page 10 FREEZER DOOR AND BASKET PARTS For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 (Black) (Biscuit) Illus. Part 2188601 Freezer Door 2204525 Divider, Basket 2207429 Clamp, Divider 2207415 Nut, Crimp 488649 Screw 2006331 Black 2006330 Biscuit 2006328 White 2006327 Etched Aluminum 2006304 Black...
-
Page 11: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 8198081... - Page 12 REFRIGERATOR DOOR PARTS For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 Illus. Part DESCRIPTION 2188600 Refrigerator Door (Includes Item 9) Cover−Trim, Handle 2006341 Black 2006340 Biscuit 2006338 White 2006337 Etched Aluminum 2005171 Hinge Assembly, 2004520 Spacer−Hinge, 489282 Screw, 10−32 x 3/4 2003985 Hinge Assembly,...
- Page 13 UPPER UNIT PARTS For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 8198081...
- Page 14 For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 Illus. Part DESCRIPTION 2209324 Inverter Box 489373 Screw, Compressor Mounting (4) 2208937 Compressor (Includes Items 6, 9 & 21) (Also Order 876765 Tube Kit) 2199929 Housing, Control Board 2215641 Bracket, Fan Motor 1100826 Grommet, Mounting...
- Page 15 LOWER UNIT AND TUBE PARTS For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 8198081...
- Page 16 LOWER UNIT AND TUBE PARTS For Models: KBLS36FKB01, KBLS36FKT01, KBLS36FKW01, KBLS36FKX01 (Black) (Biscuit) Illus. Part 486194 Screw 2209035 Suction Tube 2207486 Heater, Defrost 2209454 Tube, Connect 2209451 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2204543 Support, Heater...
-
