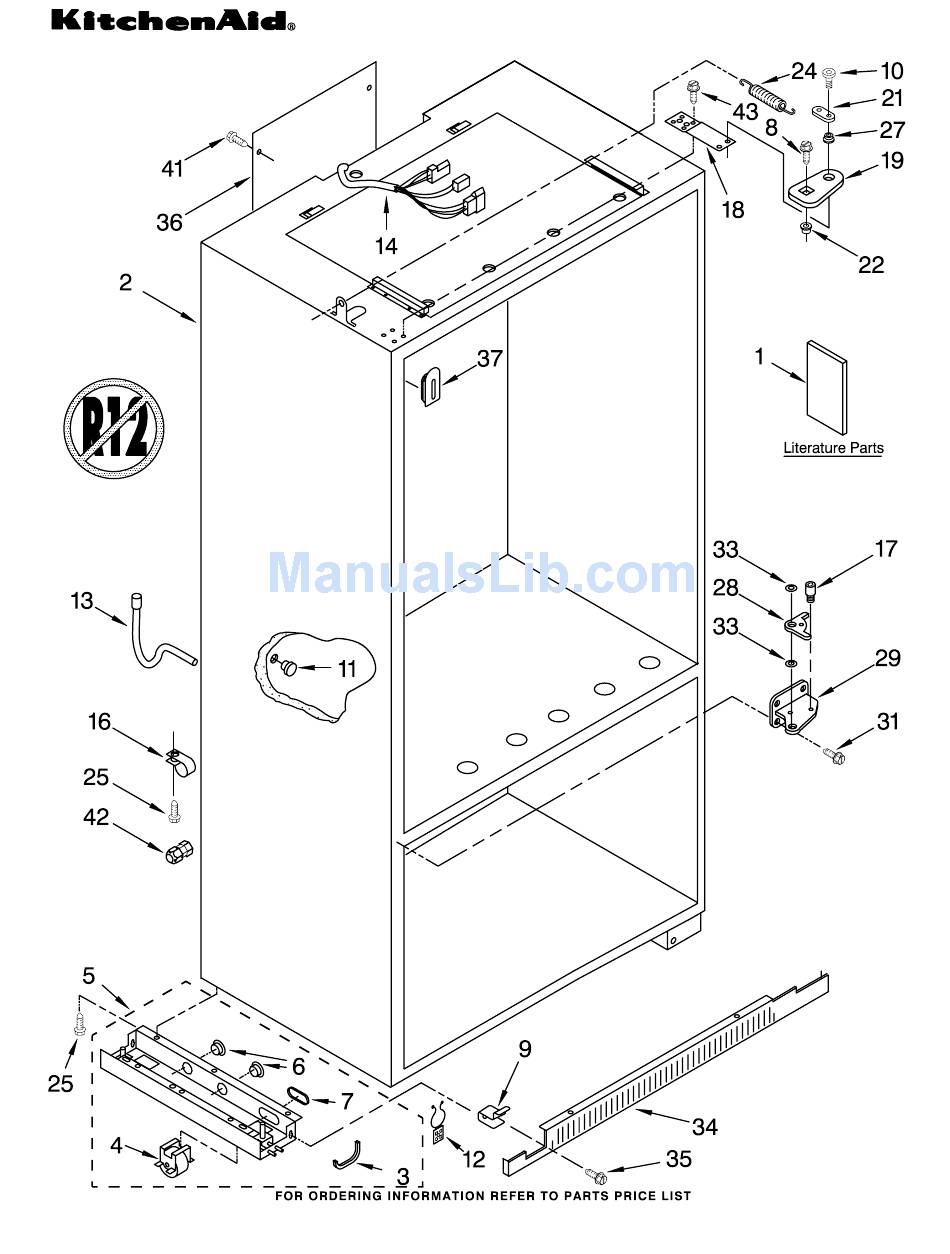

- Page 1 CABINET PARTS 36" BOTTOM MOUNT BUILT IN REFRIGERATOR For Models: KBLS36MHW00, KBLS36MHX00 5-99 Litho In U.S.A. (mek) Part No. 4398376...
- Page 2 2005004 Grommet, Tube Crossover 1112023 Roller, Front & Rear (4) Support, Leveler Assembly 2004506 Refrigerator Side 2004505 Freezer Side 2005006 Grommet, Wiring CABINET PARTS For Models: KBLS36MHW00, KBLS36MHX00 Illus. Part DESCRIPTION 2005007 Grommet, Flexible 2001297 Screw 2006442 Mounting Bracket, Grill 2005921 Screw...
- Page 3 CABINET AND BREAKER TRIM PARTS 4398376 For Models: KBLS36MHW00, KBLS36MHX00 Illus. Part DESCRIPTION Cabinet, Trim Right Side 2006210 White 2006209 Aluminum 2003857 Screw 1163283 Screw 487246 Repair, Screw 2004536 Cabinet, Trim (Bottom) 486194 Screw 2003645 Cabinet, Trim Top 2005786 Breaker Trim...
- Page 4 TOP GRILLE AND UNIT COVER PARTS For Models: KBLS36MHW00, KBLS36MHX00 Illus. Part DESCRIPTION Top Grille Assembly 2006165 White 2006159 Aluminum 2005549 Cover, Unit 488649 Screw 2002484 Grille, Bracket 2001415 Screw Trim-Lower, Panel 2006168 White 2006164 Aluminum 2005534 Guard, Compressor Wiring...
- Page 5 LINER PARTS For Models: KBLS36MHW00, KBLS36MHX00 4398376...
- Page 6 LINER PARTS For Models: KBLS36MHW00, KBLS36MHX00 Illus. Part DESCRIPTION Liner, Refrigerator (Not Servicable) Liner,Freezer (Not Servicable) 2005775 Wiring Channel Side 2005932 Diffuser Cap, Left Side 2005931 Diffuser Cap, Right Side 2171846 Release Valve 487539 Screw, 8-15 x .500 486194 Screw...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Models: KBLS36MHW00, KBLS36MHX00 4398376... - Page 8 CONTROL PANEL PARTS For Models: KBLS36MHW00, KBLS36MHX00 Illus. Part DESCRIPTION 2005489 Control Panel 2005940 Overlay, Control Panel 2005585 Circuit Board 2005414 Slide, Control 2172906 Grommet, Light Fiber 1118894 Switch, Rocker Arm 2005935 Heat Shield, Lamp 489260 Screw (3) 2179920 Fiber Optic...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KBLS36MHW00, KBLS36MHX00 4398376... - Page 10 486194 Screw 2005987 Support, Crisper Shelf (2) 2006454 Rail, Deli Center 2005571 Shelf (4) 2005429 Air Damper, Deli 2005151 Rail-Rear, Deli For Models: KBLS36MHW00, KBLS36MHX00 Illus. Part DESCRIPTION 2005152 Glass Shelf, Deli 2005153 Rail-Front, Deli 2005415 Control Knob, Deli 2006235 Screw, 10-16 x .375...
- Page 11 FREEZER DOOR AND BASKET PARTS For Models: KBLS36MHW00, KBLS36MHX00 4398376...
- Page 12 FREEZER DOOR AND BASKET PARTS For Models: KBLS36MHW00, KBLS36MHX00 Illus. Part DESCRIPTION 2204532 Freezer Door Panel (Includes Item 9) 2204525 Divider, Basket 2207429 Clamp, Divider 2207415 Nut, Crimp 488649 Screw Cover-Trim, Handle 2006328 White 2006327 Aluminum Trim-Door, Side 2005869 White...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KBLS36MHW00, KBLS36MHX00 4398376... - Page 14 2006337 Aluminum 2005171 Hinge Assembly, 2004520 Spacer-Hinge, 3400060 Screw, 10-32 x .750 2003985 Hinge Assembly, Bottom Corner Trim 2006270 White 2207457 Aluminum For Models: KBLS36MHW00, KBLS36MHX00 Illus. Part DESCRIPTION Trim-Door, Side 2005860 White 2005859 Aluminum 2005174 Door Gasket, Magnetic 487052 Screw, 8 - 15 x .500...
- Page 15 UPPER UNIT PARTS For Models: KBLS36MHW00, KBLS36MHX00 4398376...
- Page 16 486899 Screw 487869 Screw 2003392 Condenser 943447 Grommet (4) 1113019 Clamp (4) 487522 Screw 851095 Wire Tie (2) UPPER UNIT PARTS For Models: KBLS36MHW00, KBLS36MHX00 Illus. Part DESCRIPTION 2164492 Drier 2169135 Motor, Fan 1108179 Blade, Fan 2003169 Orifice, Fan 489099 Screw (3)
- Page 17 LOWER UNIT AND TUBE PARTS For Models: KBLS36MHW00, KBLS36MHX00 4398376...
- Page 18 LOWER UNIT AND TUBE PARTS For Models: KBLS36MHW00, KBLS36MHX00 Illus. Part DESCRIPTION 2006343 Defrost Bi-Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2005577 Condenser Inlet Tube 2005576 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater 2005908 Shield, Drain Pan...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KBLS36MHW00, KBLS36MHX00 4398376... - Page 20 ICEMAKER PARTS For Models: KBLS36MHW00, KBLS36MHX00 Illus. Part DESCRIPTION 841707 Insert, Tube 628379 Clip, Fuse 2005009 Water Inlet Tube Assembly 1106508 Seal Gasket 2154472 Connector 2003791 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire 2005038 Plug, Water Valve 489348 Clamp, Nylon...
