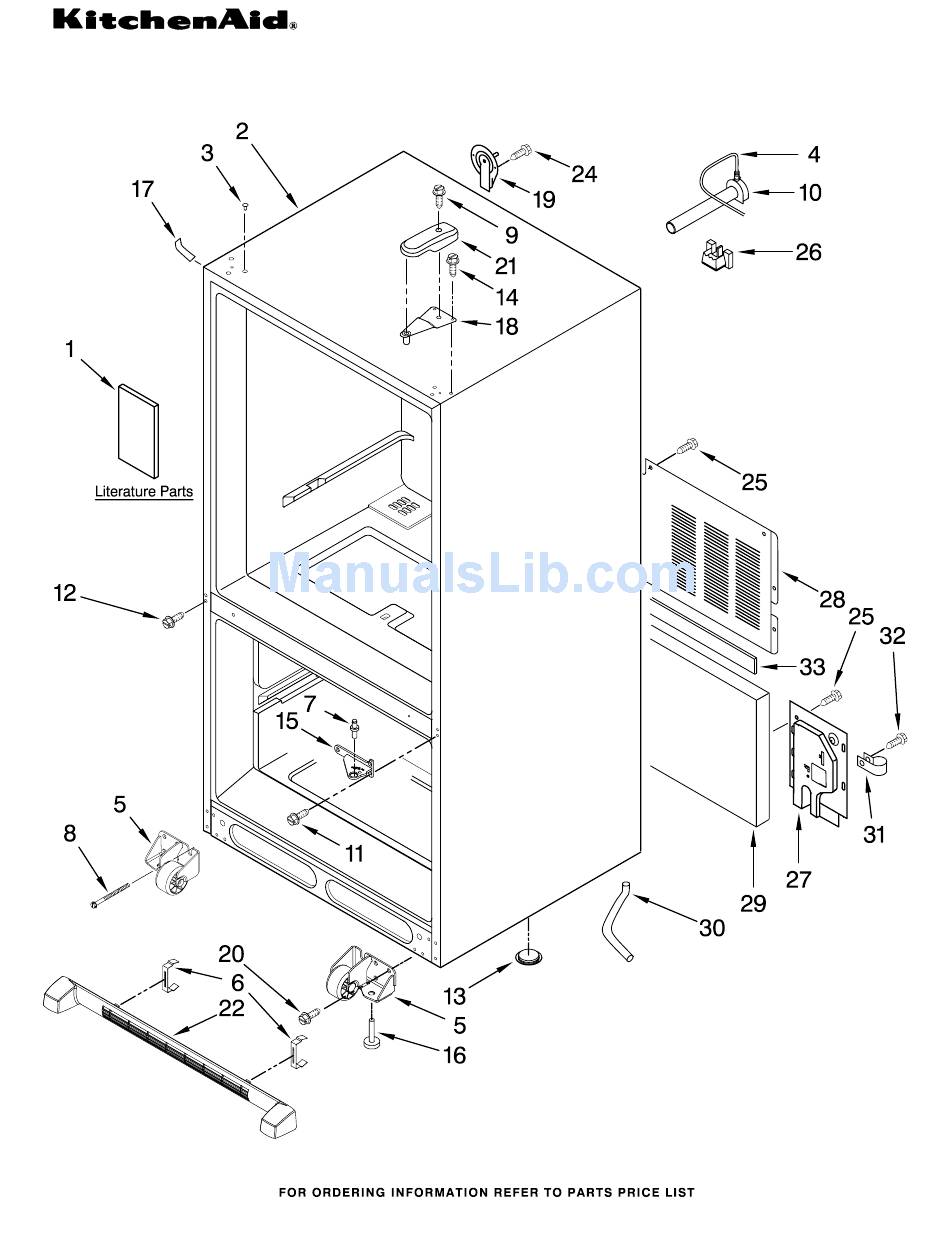

CABINET PARTS
REFRIGERATOR
For Model: KBLS20ETSS01
(Stainless Steel)
3−08 Litho In U.S.A. (CJJ)
Part No. W10184105 Rev. B
1

Advertisement

loading

  Also See for KitchenAid KBLS20ETSS11

  Related Manuals for KitchenAid KBLS20ETSS11

  Summary of Contents for KitchenAid KBLS20ETSS11

  • Page 1 CABINET PARTS REFRIGERATOR For Model: KBLS20ETSS01 (Stainless Steel) 3−08 Litho In U.S.A. (CJJ) Part No. W10184105 Rev. B...
  • Page 2: Cabinet Parts

    CABINET PARTS For Model: KBLS20ETSS01 (Stainless Steel) Illus. Part DESCRIPTION Literature Parts W10137649 Owners Manual W10136377 Energy Tag 67006616 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) 67001131 Black B5705307 Tube, Plastic 67002227 Roller Foot W10130460 LH W10130459 RH 12627302 Clip, Grille 67006642 Pin, Center Hinge 67006611 Bolt, Adjusting...
  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KBLS20ETSS01 (Stainless Steel) W10184105...
  • Page 4 REFRIGERATOR LINER PARTS For Model: KBLS20ETSS01 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) Y67003896 Bracket, Control and Lights 67005628 Overlay 67005444 Housing, Electronic Control 67005397 Electronic Control C3680310 Switch, Light 67003897 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light (2)
  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Model: KBLS20ETSS01 (Stainless Steel) W10184105...
  • Page 6 FREEZER LINER PARTS For Model: KBLS20ETSS01 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 12002497 Gear (2) (Includes RH & LH) 67003905 Cover, Light 67004017 Shaft Y12570701 Socket, Light 67006737 Screw A0282812 Bulb, Light 67001035 Housing, Frz. Light 67005873 Cover, Evaporator 67006425 Screw Bracket, Door...
  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KBLS20ETSS01 (Stainless Steel) W10184105...
  • Page 8 REFRIGERATOR DOOR PARTS For Model: KBLS20ETSS01 (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (w/ Insulation) W10184149 Stainless Steel Plug, Vent 67004838 Black 67003819 Door, Compartment 67001279 Tray, Dairy 67005724 Bucket (1) (Short) Nameplate W10046610 Grey Plug, Vent 67004838 Black Gasket, Door...
  • Page 9: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KBLS20ETSS01 (Stainless Steel) W10184105...
  • Page 10 FREEZER DOOR PARTS For Model: KBLS20ETSS01 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (w/ Insulation) W10184150 Stainless Steel Handle, Door 2319727S Stainless Steel 67006113 Mount, Handle Gasket, Door W10131754 Black 67002935 Screw Plug, Vent (2) 67004838 Black W10184105...
  • Page 11: Shelf Parts

    SHELF PARTS For Model: KBLS20ETSS01 (Stainless Steel) W10184105...
  • Page 12 SHELF PARTS For Model: KBLS20ETSS01 (Stainless Steel) Illus. Part DESCRIPTION 67003037 Ladder, Side 67006400 Screw (6) 67003036 Ladder, Center 67006360 Screw (2) Track, Pantry 67005862 Left 67005860 Right 67005676 Shelf, Glide (4) 67006655 Glass, Crisper 67006185 Frame, Crisper 67005930 Lid Assembly Pantry 67005864 Slide, Humidity Control...
  • Page 13: Unit Parts

    UNIT PARTS For Model: KBLS20ETSS01 (Stainless Steel) W10184105...
  • Page 14 Illus. Part DESCRIPTION 67006432 Screw (3) 2 W10162928 Blade, Fan 67005889 Basepan 67006425 Screw (2) 67004954 Screw (3) 8201555 Compressor 7 W10119857 Harness, Evap. Heater 67007175 Drain Pan 61004743 Grommet (3) 67002493 Evaporator Heater 67005562 Capacitor 67005561 Overload/Relay (Capacitor Incl.) 61003210 Gasket 14 W10165425 Thermostat 15 W10137529 Grommet (4)
  • Page 15: Icemaker Parts

    ICEMAKER PARTS For Model: KBLS20ETSS01 (Stainless Steel) W10184105...
  • Page 16 ICEMAKER PARTS For Model: KBLS20ETSS01 (Stainless Steel) Illus. Part DESCRIPTION Mold & Heater Assembly (Not Available Order D7824706Q) 67004028 Arm, Shutoff 628356 Cup, Fill 627843 Ejector 2182124 Ice Stripper 2195914 Support & Motor Assembly 2315522 Retainer, Thermostat Thermostat (Not Available Order D7824706Q) 681249 Screw (2) 67001255 Pan, Ice...
  • Page 17 OPTIONAL PARTS (NOT INCLUDED) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350939 Black 350942 Primer, White Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
