KitchenAid KBLS20ETSS00 Parts List

Hide thumbs

Advertisement

Quick Links

CABINET PARTS
REFRIGERATOR
For Model: KBLS20ETSS00
(Stainless Steel)
8−07 Litho In U.S.A. (tpm)
1
Part No. W10144705 Rev.B

Advertisement

loading

  Related Manuals for KitchenAid KBLS20ETSS00

  Summary of Contents for KitchenAid KBLS20ETSS00

  • Page 1 CABINET PARTS REFRIGERATOR For Model: KBLS20ETSS00 (Stainless Steel) 8−07 Litho In U.S.A. (tpm) Part No. W10144705 Rev.B...

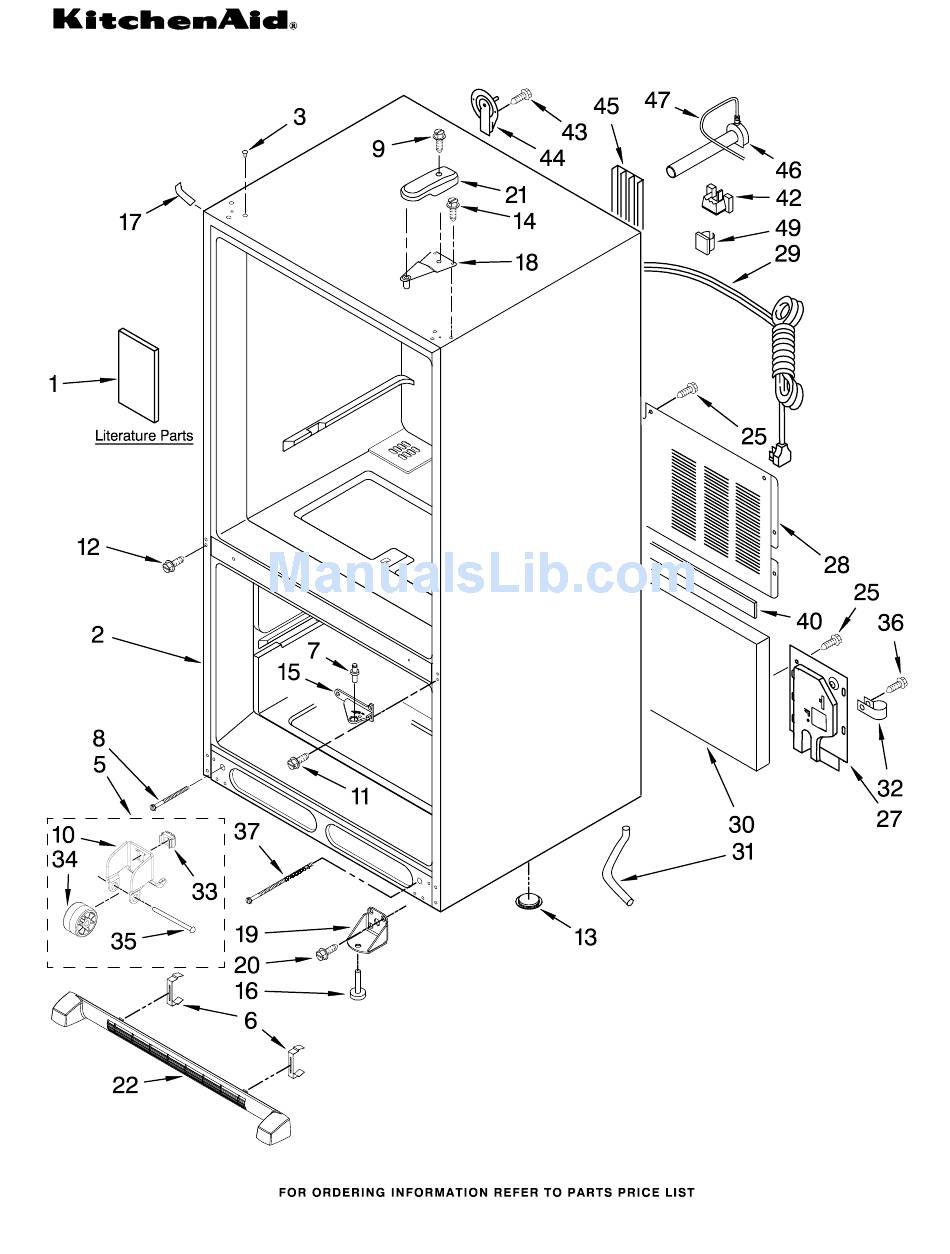

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: KBLS20ETSS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION A3076901 Plug, Button 28 12575101ED Cover, Unit Literature Parts 67006303 Screw 67007121 Power Cord W10136388 Owners Manual Hinge, Center 67003796 Insulation, Sound W10136377 Energy Tag 67007043 Black 67006616 Tech Sheet 67001066 Tube, Drain...
  • Page 3: Freezer Liner Parts

    FREEZER LINER PARTS For Model: KBLS20ETSS00 (Stainless Steel) W10144705...
  • Page 4 FREEZER LINER PARTS For Model: KBLS20ETSS00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 12002497 Gear (2) (Includes RH & LH) 67003905 Cover, Light 67004017 Shaft 8170839 Socket, Light 67006737 Screw A0282812 Bulb, Light 67001035 Housing, Frz. Light 67005873 Cover, Evaporator 67006425 Screw Bracket, Door...
  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KBLS20ETSS00 (Stainless Steel) W10144705...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KBLS20ETSS00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) Y67003896 Bracket, Control and Lights 67005628 Overlay 67005444 Housing, Electronic Control 67005397 Electronic Control C3680310 Switch, Light 67003897 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light (2) 8170839 Socket, Light (2) 67003900 Insert, Damper Cover...
  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KBLS20ETSS00 (Stainless Steel) W10144705...
  • Page 8 REFRIGERATOR DOOR PARTS For Model: KBLS20ETSS00 (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (w/ Insulation) W10136662 Stainless Steel Plug, Vent 67001131 Black 67003819 Door, Compartment 67001279 Tray, Dairy 67005724 Bin, Shelf (1) (Medium) Plug, Handle Hole 67001131 Black Gasket, Door Magnetic W10133881 Black Handle, Door...
  • Page 9: Unit Parts

    UNIT PARTS For Model: KBLS20ETSS00 (Stainless Steel) W10144705...
  • Page 10 UNIT PARTS For Model: KBLS20ETSS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12002041 Evaporator 67006425 Screw Following Parts Not Illustrated 67004952 Blade, Fan and Optional Parts Not Included 67001084 Right Side 67005889 Base 67001083 Left Side 67006433 Screw 67004432 Motor, Fan 67004954 Screw...
  • Page 11: Shelf Parts

    SHELF PARTS For Model: KBLS20ETSS00 (Stainless Steel) W10144705...
  • Page 12 SHELF PARTS For Model: KBLS20ETSS00 (Stainless Steel) Illus. Part DESCRIPTION 67003037 Ladder, Side 67006400 Screw 67003036 Ladder, Center 67006360 Screw Track, Pantry 67005862 Left 67005860 Right 67005676 Shelf, Glide (4) 67006655 Glass, Crisper 67006185 Frame, Crisper 67001057 Support, Center Crisper Drawer 67005864 Slide, Humidity Control 67006287 Screw...
  • Page 13: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KBLS20ETSS00 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (w/ Insulation) W10136412 Stainless Steel Handle, Door 2319727S Stainless Steel Gasket, Door W10131754 Black 67002935 Screw Plug, Vent (2) 67004838 Black 67006408 Screw 67004790 Stud, Handle W10144705...
  • Page 14: Icemaker Parts

    ICEMAKER PARTS For Model: KBLS20ETSS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006662 Screw Thermostat Mold & Heater 67004710 Cover (Not Available Assembly Module Assembly Order D7824706Q) (Not Available 681249 Screw (2) (Not Available Order D7824706Q) 67006531 Pan, Ice Order D7824706Q) 67004028 Arm, Shutoff...
  • Page 15 OPTIONAL PARTS (NOT INCLUDED) For Model: KBLS20ETSS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous TORX SCREW WRENCH PAINT, TOUCH−UP (1/2oz.) 1117510 Torx Key 72017 White 212643 Sealer, Gum 72032 Black (4 Feet) 479502 Tape, Vinyl ICE MAKER FIELD INSTALLABLE (3/4 x 108")
