- Page 1 CABINET PARTS REFRIGERATOR For Models: KBRS22KTWH00, KBRS22KTBL00, KBRS22KTSS00, KBLS22KTSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) 7−07 Litho In U.S.A. (tpm) Part No. W10144701 Rev. B...
-

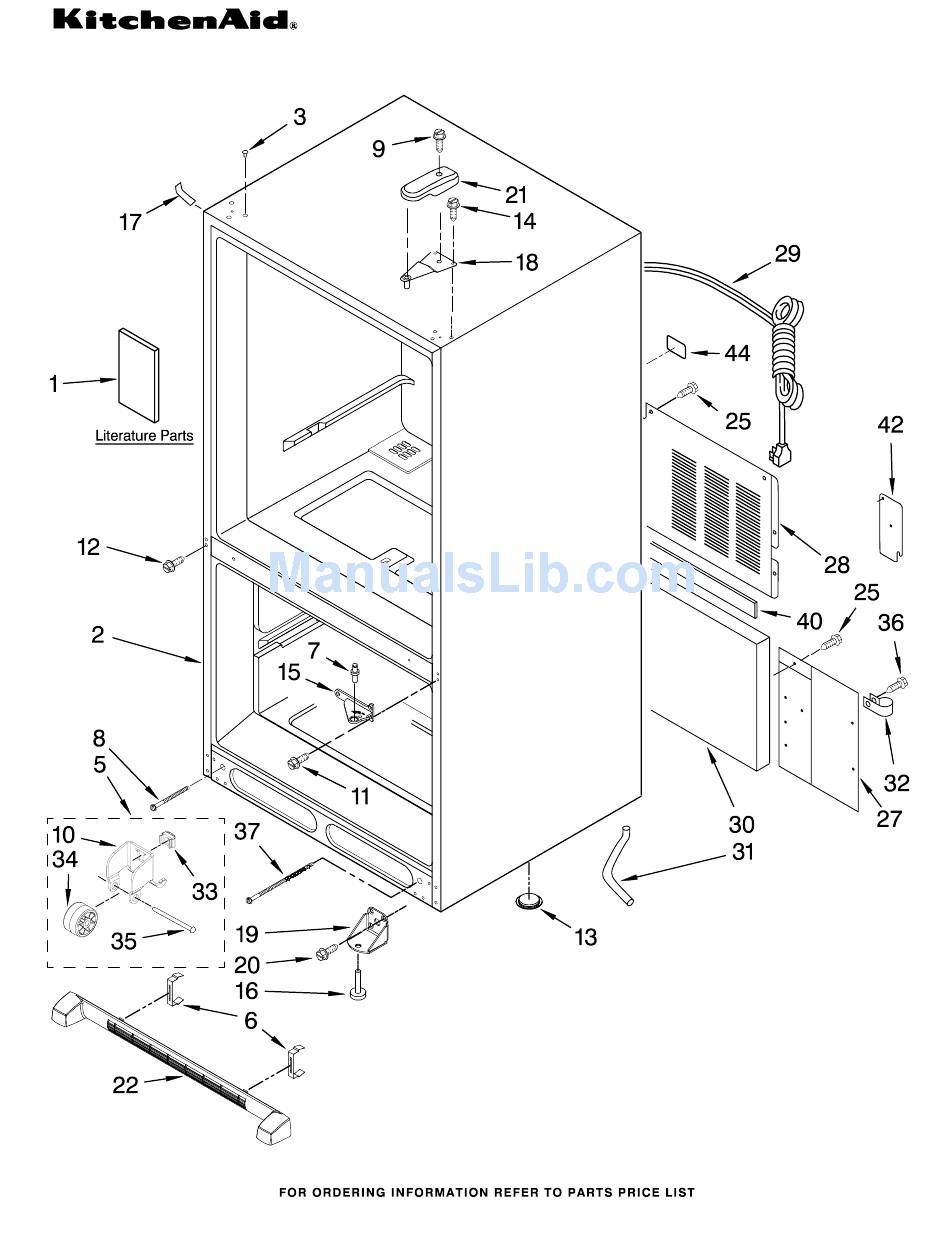

Page 2: Cabinet Parts
CABINET PARTS For Models: KBRS22KTWH00, KBRS22KTBL00, KBRS22KTSS00, KBLS22KTSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Grille Assembly 67006473 Screw W10136388 Owners Manual A3076901 Plug, Button (Includes Clips) W10123818 Energy Tag 67006303 Screw 67007004 White 67006616 Tech Sheet... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: KBRS22KTWH00, KBRS22KTBL00, KBRS22KTSS00, KBLS22KTSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10144701... - Page 4 FREEZER LINER PARTS For Models: KBRS22KTWH00, KBRS22KTBL00, KBRS22KTSS00, KBLS22KTSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 12002497 Gear (2) (Includes RH & LH) 67003905 Cover, Light 67004261 Shaft 8170839 Socket, Light 67006737 Screw A0282812 Bulb, Light 67001035 Housing, Frz.
-
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KBRS22KTWH00, KBRS22KTBL00, KBRS22KTSS00, KBLS22KTSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10144701... - Page 6 REFRIGERATOR LINER PARTS For Models: KBRS22KTWH00, KBRS22KTBL00, KBRS22KTSS00, KBLS22KTSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) Y67003896 Bracket, Control and Lights 67005628 Overlay 67005444 Housing, Electronic Control 67005397 Electronic Control C3680310 Switch, Light 67003897 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light (2)
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KBRS22KTWH00, KBRS22KTBL00, KBRS22KTSS00, KBLS22KTSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10144701... - Page 8 REFRIGERATOR DOOR PARTS For Models: KBRS22KTWH00, KBRS22KTBL00, KBRS22KTSS00, KBLS22KTSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part DESCRIPTION Refrigerator Door (w/ Insulation) 67004777 White 67004775 Black W10136949 Stainless Steel−RH W10136950 Stainless Steel−LH Plug, Vent 67001130 White 67001131 Black 67003819 Door, Compartment 67001279 Tray, Dairy 67005672 Bin, Shelf (3) (Medium)
-
Page 9: Unit Parts
UNIT PARTS For Models: KBRS22KTWH00, KBRS22KTBL00, KBRS22KTSS00, KBLS22KTSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10144701... - Page 10 UNIT PARTS For Models: KBRS22KTWH00, KBRS22KTBL00, KBRS22KTSS00, KBLS22KTSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67001080 Tray, Drip 67006425 Screw 67005719 Spacer, HV Box Following Parts Not Illustrated 67004952 Blade, Fan 12001919 Evaporator 67005744 Base and Optional Parts Not Included 67006433 Screw...
-
Page 11: Shelf Parts
SHELF PARTS For Models: KBRS22KTWH00, KBRS22KTBL00, KBRS22KTSS00, KBLS22KTSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) W10144701... - Page 12 SHELF PARTS For Models: KBRS22KTWH00, KBRS22KTBL00, KBRS22KTSS00, KBLS22KTSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part DESCRIPTION 67001317 Ladder, Side 67006400 Screw 67001073 Ladder, Center 67006360 Screw 67005730 Shelf, Fixed (2) 67005731 Shelf, Glide (2) 67006878 Glass, Crisper 67001056 Frame, Crisper 67001057 Support, Center Crisper Drawer 67005864 Slide,...
-
Page 13: Freezer Door Parts
FREEZER DOOR PARTS For Models: KBRS22KTWH00, KBRS22KTBL00, KBRS22KTSS00, KBLS22KTSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Freezer Door Handle, Door 67002935 Screw (w/ Insulation) 2319727W White Plug, Vent (2) 67004783 White 2319727B Black 10712401 White 67004781 Black 2319727S Stainless Steel... - Page 14 OPTIONAL PARTS (NOT INCLUDED) For Models: KBRS22KTWH00, KBRS22KTBL00, KBRS22KTSS00, KBLS22KTSS00 (White) (Black) (Stainless Steel−RH) (Stainless Steel−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, TOUCH−UP (1/2oz.) PAINT, BULK (1 qt.) TORX SCREW WRENCH OPTIONAL PARTS 1117510 Torx Key 799344 White (Uncut) 72017 White 799340 Black (Uncut)
