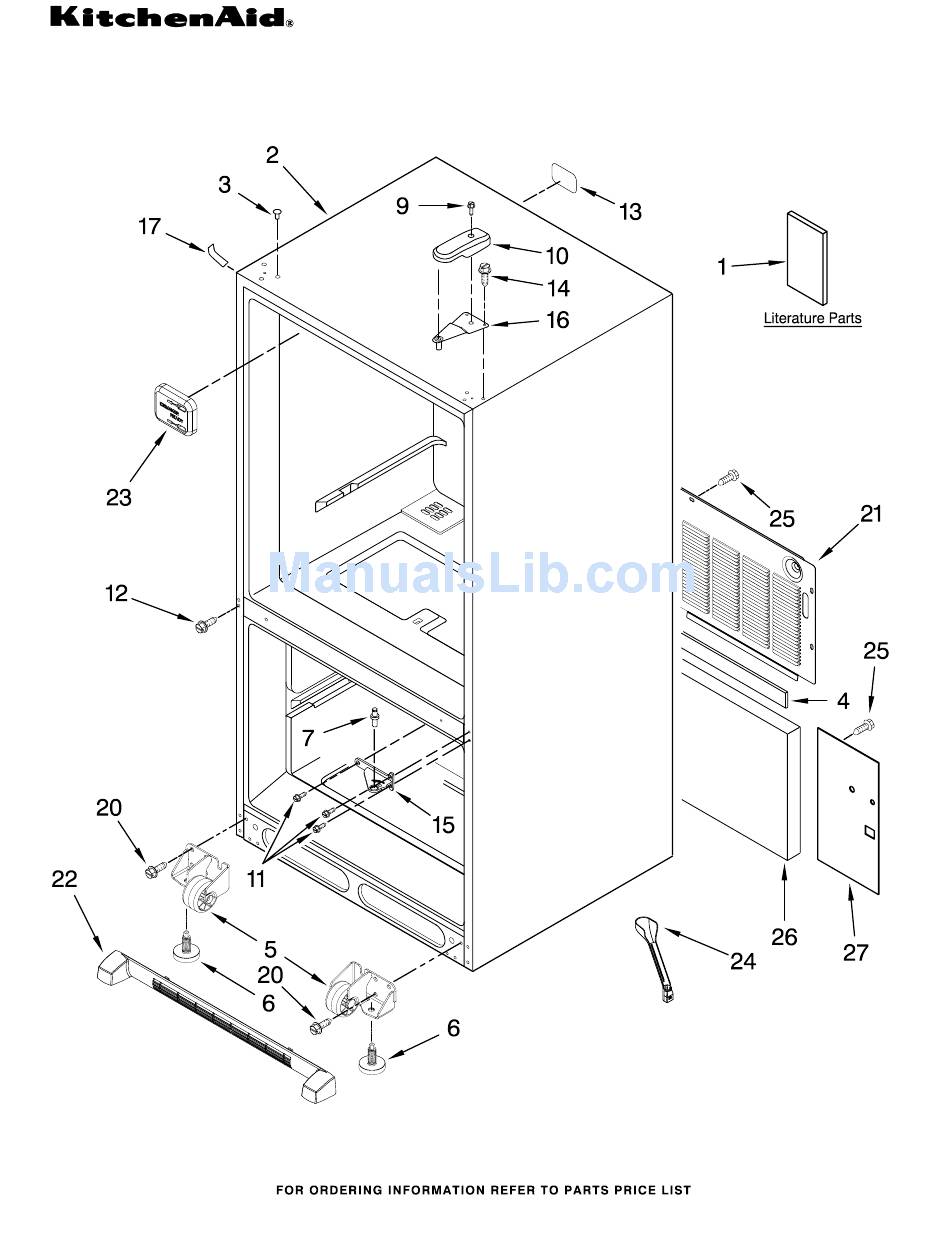

CABINET PARTS
REFRIGERATOR
For Models: KBRS22KWMS4, KBLS22KWMS4
(Stainless−RH) (Stainless−LH)
7−10 Litho In U.S.A. (rrm)(bay)
Part No. W10343021 Rev.A
1

Advertisement

loading

  Related Manuals for KitchenAid KBRS22KWMS

  Summary of Contents for KitchenAid KBRS22KWMS

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KBRS22KWMS4, KBLS22KWMS4 (Stainless−RH) (Stainless−LH) 7−10 Litho In U.S.A. (rrm)(bay) Part No. W10343021 Rev.A...
  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KBRS22KWMS4, KBLS22KWMS4 (Stainless−RH) (Stainless−LH) Illus. Part DESCRIPTION Literature Parts W10137649 Use & Care Guide W10297638 Energy Guide W10308611 Tech Sheet Cabinet (Not a Serviceable Part) Plug, Button (3) M0310731 Black B5759655 Gasket Roller Foot Assembly W10275850 Left W10275849 Right 6 W10141622 Foot Brake 10351006 Pin, Center Hinge...
  • Page 3: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KBRS22KWMS4, KBLS22KWMS4 (Stainless−RH) (Stainless−LH) W10343021...
  • Page 4 FREEZER LINER PARTS For Models: KBRS22KWMS4, KBLS22KWMS4 (Stainless−RH) (Stainless−LH) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) A3189392 Gasket, Foam 12002497 Gear−L & R) 5 12812902WD Shaft 12570701V Socket, Light 12990521 Screw (8) 2255743N Bulb, Light 10 W10277466 Foil−FZ Light 11 W10308415 Cover, Evaporator 12990511 Screw (4) Bracket, Door...
  • Page 5: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KBRS22KWMS4, KBLS22KWMS4 (Stainless−RH) (Stainless−LH) Illus. Part DESCRIPTION Door, Freezer 13092274S Stainless Handle, Door W10314517N Stainless 13001201 Mount, Handle Gasket, Door W10180623 Apollo Grey 5 W10290759 Screw W10343021...
  • Page 6: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KBRS22KWMS4, KBLS22KWMS4 (Stainless−RH) (Stainless−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Liner (Not A 12806501 Cover, Light 15 W10196393 Control, Damper Serviceable Part) 12806601V Housing, Light (Includes Harness) 12806301 Bracket, Control 2255743N Bulb, Light (2) and Lights 12570701V Socket, Light (2) 3 W10207257 Overlay...
  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KBRS22KWMS4, KBLS22KWMS4 (Stainless−RH) (Stainless−LH) W10343021...
  • Page 8 REFRIGERATOR DOOR PARTS For Models: KBRS22KWMS4, KBLS22KWMS4 (Stainless−RH) (Stainless−LH) Illus. Part DESCRIPTION Door, Refrigerator 13107526S Stainless−RH 13107524S Stainless−LH 2 W10290759 Screw (2) 3 12804701SP Door, Dairy 4 12369502SP Tray, Dairy 5 W10119841 Bucket, Medium (3) Gasket, Door W10180621 Apollo Grey Handle, Door W10314517N Stainless Gripper, Bucket...
  • Page 9: Unit Parts

    UNIT PARTS For Models: KBRS22KWMS4, KBLS22KWMS4 (Stainless−RH) (Stainless−LH) W10343021...
  • Page 10 UNIT PARTS For Models: KBRS22KWMS4, KBLS22KWMS4 (Stainless−RH) (Stainless−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12992301 Screw Following Parts Not Illustrated 12990701 Screw 12825803 Blade, Fan 12726402 Evaporator and Optional Parts Not Included 3 W10210983 Basepan 12990511 Screw 12225702 Right Side 978025 Valve, Access 2264017 Capacitor...
  • Page 11: Shelf Parts

    SHELF PARTS For Models: KBRS22KWMS4, KBLS22KWMS4 (Stainless−RH) (Stainless−LH) W10343021...
  • Page 12 SHELF PARTS For Models: KBRS22KWMS4, KBLS22KWMS4 (Stainless−RH) (Stainless−LH) Illus. Part DESCRIPTION 12530701N Rail, Center Crisper 2 W10231483 Trim, Crisper 3 12530805SP Slide, Humidity Control (2) 4 W10169950 Basket, Freezer (Upper) 5 W10150038 Basket, Freezer (Lower) 12463310V Shelf, Glide Out (2) 7 W10215666 Screw 8 W10205416 Divider, Lower Basket...
  • Page 13: Optional Parts

    OPTIONAL PARTS For Models: KBRS22KWMS4, KBLS22KWMS4 (Stainless−RH) (Stainless−LH) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION ICE MAKER PAINT, BULK (1 qt.) TORX SCREW WRENCH FIELD INSTALLABLE 1117510 Torx Key W10261234 IC13B 799344 White (Uncut) 799344 Black (Uncut) PAINT, TOUCH−UP (1/2oz.) 4392900 Biscuit (Uncut) ACCESSORIES 72017 White...
