Evolution EvoSaw180HD Original Instructions Manual

Advertisement

SAW
180HD
Original Instructions
Written in UK English
V1
Date Published: 01 / 04 / 2014
EN
ES
FR
TR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EvoSaw180HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Evolution EvoSaw180HD

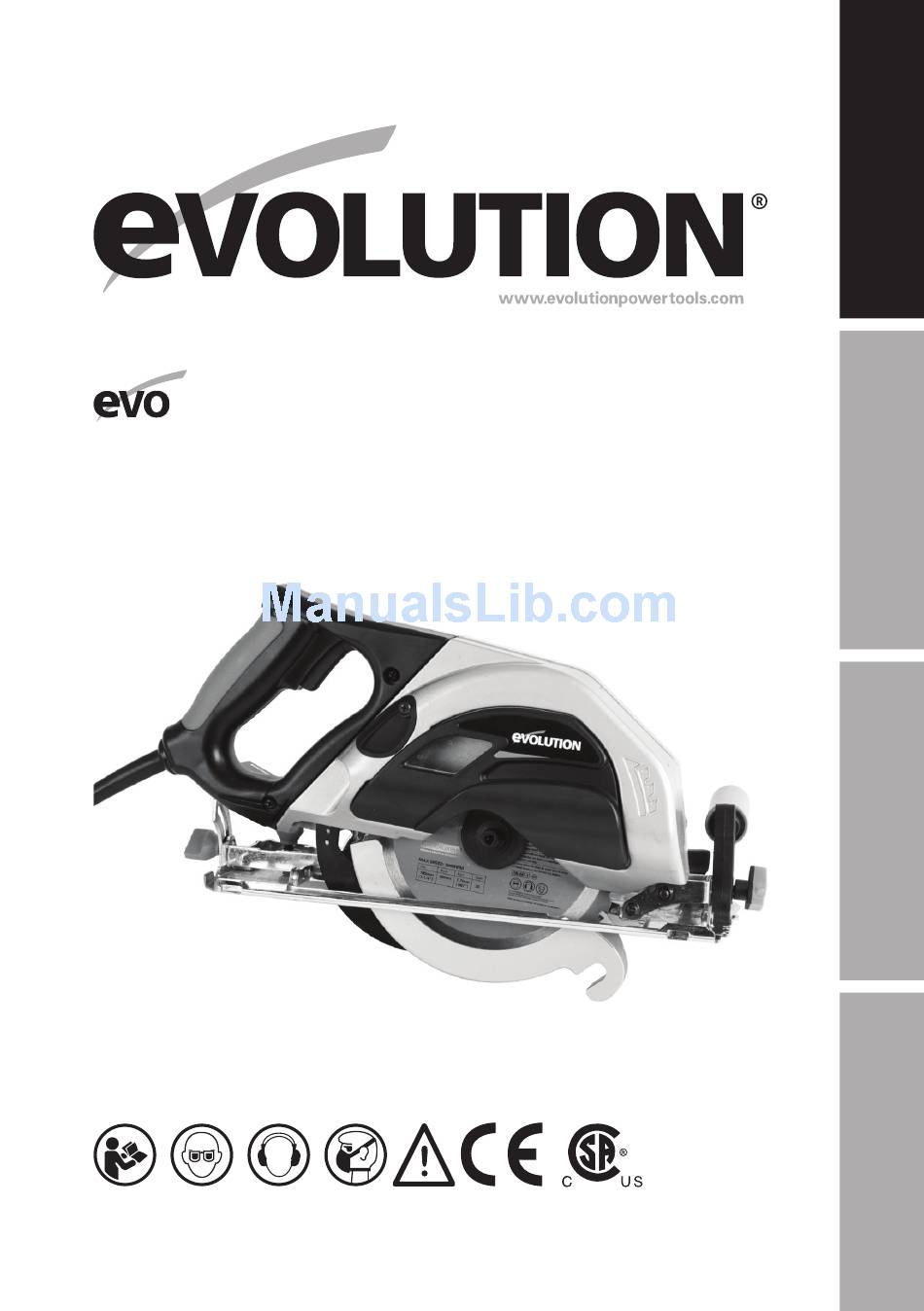

  • Page 1 180HD Original Instructions Written in UK English Date Published: 01 / 04 / 2014...
  • Page 3: English

    ENGLISH Original Instructions...
  • Page 4: Table Of Contents

    www.evolutionpowertools.com TABLE OF CONTENTS English Page 2 Español Página 22 Français Page 44 Türk Sayfa 64 INTrOduCTION Guarantee Page 5 Machine Specifications Page 6 Vibration Page 7 Labels and Symbols Page 7 Intended use of this Power Tool Page 8 Prohibited use of this Power Tool Page 8 SAFETY PrECAuTIONS...
  • Page 5 In no event shall you to validate your machine’s guarantee period via Evolution’s website by entering your Evolution Power Tools be liable for loss or details and thus ensure prompt service if ever damage resulting directly or indirectly from the use of our merchandise or from any other needed.
  • Page 6: Machine Specifications

    www.evolutionpowertools.com SPECIFICATIONS CuTTING CAPACITY METrIC IMPErIAL Mild Steel Box Section (at 90 56mm 2-1/4” Mild Steel Box Section (at 45 35mm 1-3/8” Maximum Cutting Thickness (Mild Steel Plate) 1/4” Maximum Wall Thickness 1/8” MAChINE METrIC IMPErIAL Motor (UK/EU) 230-240V ~ 50Hz 1100W Motor (UK) 110v ~ 50/60Hz 1100W...
  • Page 7: Vibration

    Do not operate this machine • The measurement and assessment of if warning and/or instruction labels are missing or damaged. Contact Evolution human exposure to hand-transmitted vibration in the workplace is given in: Power Tools for replacement labels.
  • Page 8: Intended Use Of This Power Tool

    This product is a Steel Cutting Volts Hand Held Circular Saw and has been designed to be used with special Evolution blades. Only use blades designed for use in Amperes this machine and/or those recommended specifically by Evolution Power Tools Ltd.
  • Page 9: Electrical Safety

    www.evolutionpowertools.com ELECTrICAL SAFETY 1) General Power Tool Safety warnings [work area safety] This machine is fitted with the correct a) Keep work area clean and well lit. moulded plug and mains lead for the designated market. If the mains lead or the Cluttered or dark areas invite accidents.
  • Page 10 www.evolutionpowertools.com 3) General Power Tool Safety warnings 4) General Power Tool Safety warnings [Personal Safety]. [Power tool use and care]. a) Stay alert, watch what you are doing a) do not force the power tool. use the and use common sense when operating correct power tool for your application.
  • Page 11: Additional Safety Instructions

    www.evolutionpowertools.com 5) General Power Tool wArNING: the operation of any power Safety warnings [Service] tool can result in foreign objects being thrown towards your eyes, which could result in a) have your power tool serviced by severe eye damage. Before beginning power a qualified repair person using only tool operation, always wear safety goggles identical replacement parts.
  • Page 12 www.evolutionpowertools.com Causes and operator d) Support large panels to minimise the risk of blade pinching and kickback. Large prevention of kickback: Kickback is a sudden reaction to a pinched, panels tend to sag under their own weight. bound or misaligned saw blade, causing an Supports must be placed under the panel on uncontrolled saw to lift up and out of the both sides, near the line of cut and near the...
  • Page 13: Getting Started Unpacking

    In addition to the standard items supplied the RPM of the machine. with this machine the following accessories are also available from the Evolution online wArNING: If any parts are missing, shop at www.evolutionpowertools.com do not operate your machine until the missing or from your local retailer.
  • Page 14: Machine Overview

    www.evolutionpowertools.com MAChINE OVErVIEw 1. ON/OFF TrIGGEr SwITCh 2. AuXILIArY FrONT hANdLE 3. dISChArGE EXhAuST POrT 4. LOwEr BLAdE GuArd 5. FITTEd BLAdE IN SITu...
  • Page 15: Assembly And Preparation

    INSTALLING/rEMOVING A BLAdE Fig. 1 wArNING: Only use genuine Evolution blades which are designed for this machine. Ensure that the maximum speed of the blade is compatible with the machine. Only perform this operation with the machine disconnected from the power supply.
  • Page 16 www.evolutionpowertools.com • Ensure that the direction of rotation arrows printed on the blade match the direction of rotation arrow found on the chip collector. (Fig. 4) • Reinstall the outer drive flange and the arbor socket headed screw. • Engage the arbor lock and tighten the arbor socket headed screw securely using the hex key. • Replace the chip collector and securely tighten the two thumb screws. • Check that the arbor lock is fully released by manually Fig. 4 rotating the blade. • Check the operation of the lower blade guard.
  • Page 17: Operating Instructions

    www.evolutionpowertools.com Adjustment of the Cutting depth Release the lever lock (Fig. 7) to adjust to the required cutting depth. In most cases the depth should be set at maximum unless there are obstructions below the work surface. Note: Always check to see if there are any obstructions below the work surface that could influence the setting of the cutting depth.
  • Page 18 www.evolutionpowertools.com Chip Collector This machine is fitted with a Chip Collector to capture metal chips. The Chip Collector cover plate is provided with a transparent ‘window’ so that the operator can see the contents and empty when necessary. wArNING: The Chip Collector is very efficient and must be checked and emptied at regular intervals.
  • Page 19 www.evolutionpowertools.com CuTTING AdVICE wArNING: The operator should wear all relevant PPE (Personal Protection Equipment) necessary for the job at hand. This could include safety glasses, dust masks, safety shoes, etc. The operator should always be aware of the position and routing of the power cable.
  • Page 20: Maintenance

    www.evolutionpowertools.com MAINTENANCE BruSh ChECKING ANd/Or rEPLACEMENT wArNING: Any maintenance must be • Disconnect the machine from the power carried out with the machine switched off supply. and disconnected from the mains/battery • Place the machine on a level, secure surface. power supply. • Unscrew and remove the two (2) brush retaining cap screws from the motor housing. Check that all safety features and guards are • Withdraw the brushes.
  • Page 21: Declaration Of Conformity

    In accordance with EN ISO 17050-1:2004 The manufacturer of the product covered by this declaration is: Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR. The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below.
  • Page 22: Español

    Evolution Power Tools Ltd Evolution Power Tools LLC Venture One 8363 Research Drive Longacre Close Davenport Holbrook Industrial Estate Iowa Sheffield 52806 S20 3FR +44 (0)114 251 1022 866-EVO-TOOL エボリューション Evolution Power Tools Ltd パワーツール株式会社 61 Avenue Lafontaine 〒544-0031 33560 大阪府大阪市生野区...

This manual is also suitable for:

Evosaw 180hd
