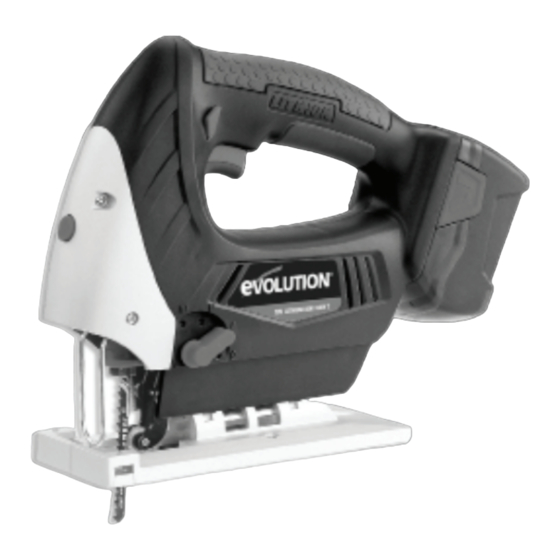

18v Li-ion BATTERY JigsAw
UK: Original Instructions
02
Read instructions before operating this tool.
FR: Instructions D'origine
15
Lisez le mode d'emploi avant d'utiliser cet outil.
18v LiThium-ion BATTERY
1.5 Ah | 27 Wh
WARNING
'CLASS 9'
Do noT LoAD oR TRAnsPoRT
PACKAgE iF DAmAgED!
A flammability hazard may exist if the package or battery cell is damaged.
musT BE hAnDLED wiTh CARE!
Lithium-Ion batteries are classified as
'Class 9 Miscellaneous Dangerous Substances & Articles'.
For more information, please call Evolution on +44 (0)114 251 1022.
Cell made in China.
Published Date - 19/ 07/ 2012
FRAGILE
IF DAMAGED
www.evolutionpowertools.com
®
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Evolution EN 60745-1/A11:2010
Summary of Contents for Evolution EN 60745-1/A11:2010
- Page 1 A flammability hazard may exist if the package or battery cell is damaged. musT BE hAnDLED wiTh CARE! Lithium-Ion batteries are classified as ‘Class 9 Miscellaneous Dangerous Substances & Articles’. For more information, please call Evolution on +44 (0)114 251 1022. Cell made in China. Published Date - 19/ 07/ 2012 www.evolutionpowertools.com...
- Page 2 TABLE OF CONTENTS EC - DECLARATION OF CONFORMITY EC - Declaration of Conformity We, the importer Important Information Evolution Power Tools Ltd. Venture One 12 Month Limited Warranty Longacre Close Sheffield General Safety Rules S20 3FR Additional Specific Safety Rules...
- Page 3 0870 609 2297 fitness or to waive any of the foregoing terms Technical Helpline USA 1-866-EVO-TOOL of sale and none shall be binding on Evolution Power Tools. Questions relating to this limited warranty should be directed to the EVOLUTION 18V LI-ION BATTERY JIGSAW company’s head office, or call the appropriate...
- Page 4 Get into the habit of checking that adjusting ADDITIONAL SAFETY RULES keys and spanners have been removed from FOR YOUR EVOLUTION JIGSAW the machine before turning it on. 17. Avoid unintentional starting. Ensure switch 1. Do not expose to rain or water.
- Page 5 5. Recharge the battery only with the SAFETY RULES FOR YOU charger specified by the manufacturer. A EVOLUTION BATTERY CHARGER charger that is suitable for one type of battery pack may create a risk of fire when used with WARNING: READ AND UNDERSTAND another battery pack.
- Page 6 / or instruction labels are missing allowed to play with, this machine. or damaged. Contact Evolution Power Tools for replacement labels. CARE OF YOUR PURE BATTERY PACK Note: All or some of the following symbols 1.
-
Page 7: Machine Overview
18v Li-ion BATTERY JigsAw Machine Overview 8. BATTERY PACK LOCKING TAB 1. KEYLESS COLLET CHUCK 9. FOOTPLATE 2. BLADE GUARD 10. LASER GUIDE ON/OFF SWITCH 3. SWITCH SAFETY LOCK SLIDE BUTTON 4. SOFT GRIP HANDLE 11. ORBITAL ACTION CONTROL SELECTOR 5. - Page 8 The green LED will illuminate. parts of the operating cycle, such as the times • Slide the Evolution 18V battery pack into the the tool is switched off, when it is running idle, docking port of the charger. It will only fit in in addition to trigger time) one way round.
- Page 9 18v Li-ion BATTERY JigsAw • Firmly slide the battery pack down into the WARNING: When battery becomes charger to ensure terminal connection. The discharged due to prolonged use or exposure battery locking tabs should positively to direct sunlight or heat, always allow the engage the charger.
- Page 10 • To remove the Battery Pack, simply press the two locking tabs with your finger and FIG: 3 thumb and slide the Battery Pack from the handle. 3. INSTALLING OR REMOVING A BLADE (Fig. 2) FIG: 2 Removal: Note: A recently used blade can be very hot.
- Page 11 Do not use the Laser Guide if the material to be cut is reflective. Any repairs to the laser must be entrusted to Evolution Power Tools or their appointed agent. The laser module must not be replaced with a laser of a different type.
- Page 12 down. Position 1 is the least aggressive of • Adjust the speed of the blade as necessary the orbital cutting actions, with position 3 to achieve optimum cutting performance. being the most aggressive. • Use the Laser guide if necessary, but only The Table below gives some typical examples on non-reflective materials.
- Page 13 There are no user general straight cutting. With angled cutting serviceable parts in your Evolution Jigsaw, or it is very important to allow the saw blade Evolution 18v Charger.
- Page 14 18v Li-ion BATTERY JigsAw www.evolutionpowertools.com...
- Page 15 NOTES: www.evolutionpowertools.com...
- Page 16 18v Li-ion BATTERY JigsAw NOTES: www.evolutionpowertools.com...
- Page 17 A flammability hazard may exist if the package or battery cell is damaged. musT BE hAnDLED wiTh CARE! Lithium-Ion batteries are classified as ‘Class 9 Miscellaneous Dangerous Substances & Articles’. For more information, please call Evolution on +44 (0)114 251 1022. Cell made in China.
