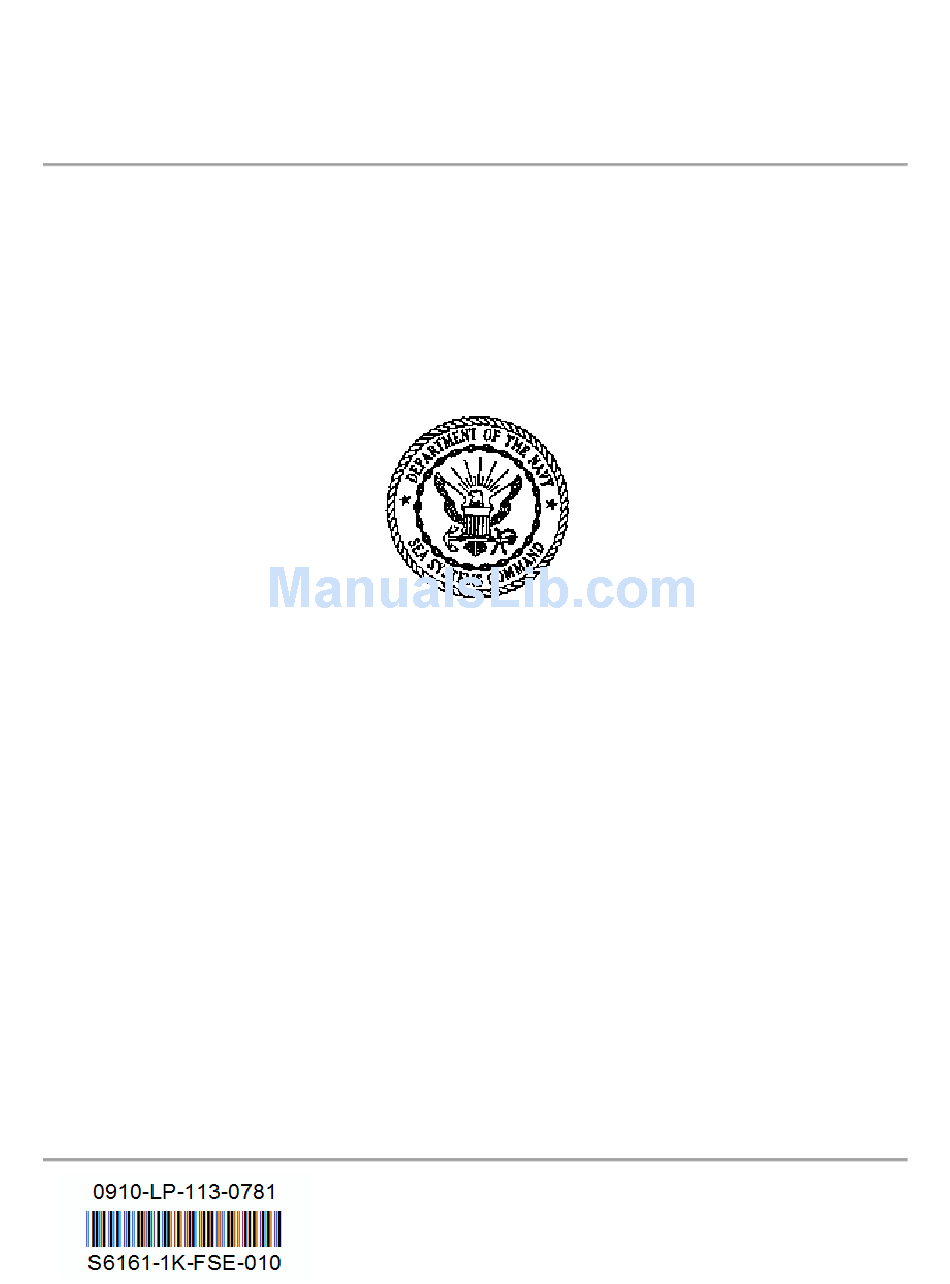

INSTRUCTION MANUAL FOR
GLOBE MIXER MODEL SP-25
N00024-11-C-2111
GLOBE FOOD EQUIPMENT COMPANY
2153 DRYDEN RD.
DAYTON, OH 45439
DISTRIBUTION STATEMENT B: DISTRIBUTION AUTHORIZED TO U.S. GOVERNMENT AGENCIES
ONLY. PROPRIETARY INFORMATION: APRIL 2013. OTHER REQUESTS SHALL BE REFERRED TO
COMNAVSEASYSCOM 07L. NO SECONDARY DISTRIBUTION AUTHORIZED WITHOUT WRITTEN
APPROVAL OF THE APPLICABLE COMNAVSEASYSCOM PROGRAM MANAGEMENT OFFICE.
WARNING- THIS DOCUMENT CONTAINS TECHNICAL DATA WHOSE EXPORT IS RESTRICTED BY
THE ARMS EXPORT CONTROL ACT (TITLE 22, U.S.C., SEC 2751, ET. SEQ.) OR THE EXPORT
ADMINISTRATION ACT OF 1979, AS AMENDED, TITLE 50, U.S.C. APP. 2401 ET. SEQ. VIOLATIONS OF
THESE EXPORT LAWS ARE SUBJECT TO SEVERE CRIMINAL PENALTIES. DISSEMINATE IN
ACCORDANCE WITH PROVISIONS OF OPNAVINST 5510.161.
DESTRUCTION NOTICE- DESTROY BY ANY METHOD THAT WILL PREVENT DISCLOSURE OF
CONTENTS OR RECONSTRUCTION OF THE DOCUMENT.
PUBLISHED BY DIRECTION OF COMMANDER, NAVAL SEA SYSTEMS COMMAND
APRIL 29, 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Globe SP10

  • Page 1 S6161-1K-FSE-010 0910-LP-113-0781 INSTRUCTION MANUAL FOR GLOBE MIXER MODEL SP-25 N00024-11-C-2111 GLOBE FOOD EQUIPMENT COMPANY 2153 DRYDEN RD. DAYTON, OH 45439 DISTRIBUTION STATEMENT B: DISTRIBUTION AUTHORIZED TO U.S. GOVERNMENT AGENCIES ONLY. PROPRIETARY INFORMATION: APRIL 2013. OTHER REQUESTS SHALL BE REFERRED TO COMNAVSEASYSCOM 07L.
  • Page 2 APPROVAL AND PROCUREMENT RECORD APPROVAL DATA FOR: S6161-1K-FSE-010 TITLE OF MANUAL: Instruction Manual for Globe Mixer Model SP-25 APPROVAL AUTHORITY: Groton, CT Design Agent, Electric Boat Corporation, dtd April 29, 2013. CONTRACT SHIP QUANTITY QUANTITY BUILDING NUMBER APPLICABILITY YARD MANUALS...
  • Page 3 Record of Alterations This manual reflects alterations occurring after April 29, 2013 as a result of the following: CHANGE NO. DEFICIENCY DESCRIPTION...
  • Page 4   Safety Summary GENERAL The following general environmental, safety, and occupational health (ESOH) notices supplement the specific warnings and cautions appearing elsewhere in this manual. They are recommended precautions that must be understood and applied during operation and maintenance of the equipment covered herein. Should situations arise that are not covered in the general or specific safety precautions, the commanding officer or other authority will issue orders as necessary to cover the situation.
  • Page 5   INDUSTRIAL HYGIENE Personnel must observe industrial hygiene requirements. Review requirements for appropriate engineering controls and personal protective equipment (PPE) with the ship's safety officer, or the maintaining activity's Industrial Hygiene department, to determine appropriate personal protective equipment and waste handling procedures. CONSUMABLE MATERIALS Consumable materials (cleaners, etc) are potential submarine atmosphere contaminants and may be toxic to personnel.
  • Page 6: Table Of Contents

    S6161-1K-FSE-010 Table of Contents Part 1 Instruction Manual for Globe Mixers Models SP10, SP20, SP25, SP30, SP30P, SP40, SP60, SP62P, AND SP80PL Part 2 Electrical Diagram SP25 PLANETARY MIXER 120V Single Phase Part 3 Parts Catalog MIXERS MODEL: SP25 & SPC25 Part 4 Globe Food Equipment Co.
  • Page 7: Instruction Manual For Globe Mixers

    Part 1 Instruction Manual for Globe Mixers Models SP10, SP20, SP25, SP30, SP30P, SP40, SP60, SP62P, and SP80PL...
  • Page 8 Model #: Serial #: Model SP20 Instruction Manual for Globe Mixers Models SP10, SP20, SP25, SP30, SP30P, SP40, SP60, SP62P and SP80PL For Service on Your Mixer: 1. Visit our website at www.globeslicers.com (select the Parts / Support drop down). 2. Or call the Globe Service Department at 937-299-8625 and ask for contact information for your local service company. Visit our website for information on additional products available from Globe. www.globeslicers.com Slicers, Mixers, Countertop Cooking Equipment, Meat Choppers & Scales...
  • Page 10 CAPACITY CHART ..............................16 TROUBLESHOOTING ............................17-18 LIMITED MIXER WARRANTY ...........................20 GLOBE FOOD EQUIPMENT COMPANY 2153 DRYDEN RD. DAYTON, OH 45439 PHONE: 937-299-5493 TOLL FREE: 800-347-5423 FAX: 937-299-4147 E-MAIL: globeinfo@globeslicers.com WEBSITE: www.globeslicers.com © Globe Food Equipment Company, 2011 VR2A_10_2011 SP60P/SP80PL_UPDATES Printed in the U.S.A. 10-4-2011...
  • Page 11: Attention Owners And Operators

    Attention Owners and Operators Globe’s equipment is designed to provide safe and productive processing of food products as long as the equipment is used in accordance with the instructions in this manual and is properly maintained. Unless the operator is adequately trained and supervised there is a possibility of serious injury. Owners of this equipment bear the responsibility to make certain that this equipment is used properly and safely, and to strictly follow all of the instructions contained in this manual and the requirements of local, state or federal law. Owners should not permit anyone to touch this equipment unless they are 18 years of age or older, are adequately trained and supervised, and have read and understood this manual. Owners should also ensure that no customers, visitors or other unauthorized personnel come in contact with this equipment. Please remember that Globe cannot anticipate every circumstance or environment in which its equipment will be operated. It is the responsibility of the owner and the operator to remain alert to any hazards posed by the function of this equipment. If you are ever uncertain about a particular task or the proper method of operating this equipment, ask your supervisor. This manual contains a number of precautions to follow to help promote safe use of this equipment. Throughout the manual you will see additional warnings to help alert you to potential hazards. Warnings affecting your personal safety are indicated by: Warnings related to possible damage to the equipment are indicated by: Globe has put several warning labels in the English language on its mixers. French labels are also available and can replace the English labels at the owner’s discretion. If the warning labels or this manual are misplaced, damaged, or illegible, or if you require additional copies, please contact your nearest representative or Globe directly for these items at no charge.
  • Page 12: Key Components Of The Mixer

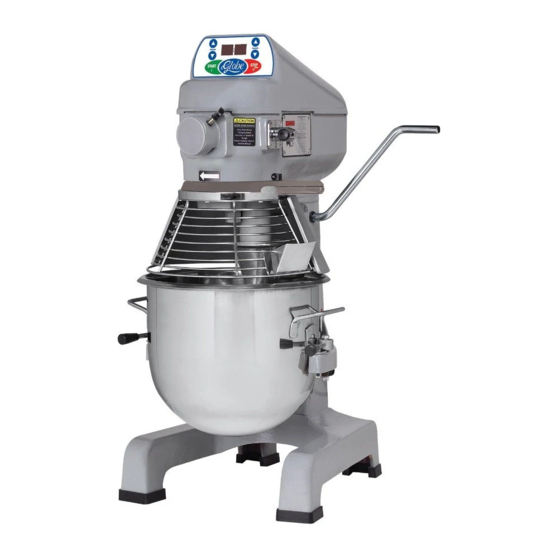

    Key Components of the Mixer Stop Button Timer Start Button Attachment Hub Thumbscrew Attachment Hub Bowl Lift Lever Planetary Grease Fitting Bowl Guard Handle Planetary Shaft Bowl Handle Bowl Lift Wheel (Models SP40 and Bowl Clamp SP60) Power Bowl Lift, Mode & Timer Controls SP20 FRONT VIEW (Models SP62P and SP80PL) Gear Oil Meter (Models SP62P and SP80PL) Speed Control Splash Guard Bowl Guard Built in Ingredient Chute Bowl Bowl Cradle Bowl Slides Power Cord Rubber Feet SP20 SIDE VIEW Page 5...
  • Page 13 • Clearance for operating controls, installing and removing agitators, bowl, or attachments. • Sufficient space for adding ingredients during mixing periods. • Ensure rear ventilation outlet of mixer is not blocked. 5. Use at least two other people to tilt the unit and install the rubber feet. 6. A bolt down template and bolts are available for the SP10, SP20, or SP25. Contact Globe if needed. 7. Inspect the mixer to ensure all parts have been provided (i.e. bowl, beater, whip, and dough hook). The SP62P only has a bowl, dough hook, and bowl truck. 8. Read the electrical information found on the data plate located at the rear of the machine. The incoming power should match the rating on the data plate. CONNECTING TO ELECTRICAL POWER Cord Connected Units: This machine is provided with a three-prong grounding plug. The outlet that this plug is connected to must be properly grounded. If the receptacle is not the proper grounding type, contact an electrician.
  • Page 14: Operating Instructions

    50% chance your 3 phase mixer is properly rotating if you are using it on 3 phase power. 1. Make sure there is not a mixing tool on the mixer shaft and the bowl is empty. 2. Put the speed lever on one speed and turn the unit on. 3. Make sure the large, gray planetary casting is going in the direction of the arrow on the mixer as you stand in front of the mixer (clockwise). (Do not pay attention to the shaft rotation.) If it is traveling in the wrong direction, have a licensed electrician switch the electrical connection and retest. 9. Complete the warranty card and mail it to Globe or register online at www.globeslicers.com/warranty.asp. 10. Clean the mixer prior to using it. Follow the cleaning instructions starting on page 14. NOTE: It is normal for the factory to apply a generous amount of grease in and on the machine. Excess grease (brown in color) will be on all metal surfaces (e.g. top portion of bowl guard, speed control, bowl clamps, bowl lift lever, and attachment hub thumbscrew). Excess high-pressured grease (brownish-black) may also be found on the planetary shaft and some drippings may be found in the bowl. Operating Instructions TO AVOID SERIOUS PERSONAL INJURY: •...
  • Page 15 Operating Instructions 2. To rotate the bowl guard to its open position, grasp the separated handles on the bowl guard and move them, together as one, clockwise to open/rotate the bowl guard. To close the bowl guard, grasp the separated handles and move them together as one, counterclockwise to close/rotate the bowl guard back into a locked position. Removing and Attaching the Bowl Guard: NOTE: Before removing or attaching the bowl guard, make sure the bowl is in the down/ lowered position and the agitator tool is off the shaft. 1. To remove the bowl guard for cleaning, push the lower part of the separated handle out (clockwise) dividing the handle and releasing the guard from the rotation ring. (see fig. 8-1) 2. Once separated, take hold of the lower separated handle and continue turning the guard clockwise until the bowl guard releases from the ring catch on the mixer. (see fig. 8-2) fig. 8-1 3. To reattach the bowl guard, line up the ring catch on the left of the mixer; lift guard gently into place and rotate the guard’s lower handle counterclockwise until it snaps back into place with the upper part of the handle. ATTACHING THE BOWL TO THE MIXER NOTE: Install the bowl BEFORE attaching the agitator. fig. 8-2 1. Lower the bowl by pulling the bowl lift lever forward and down to its resting position. For models SP40 and SP60 rotate the bowl lift wheel counterclockwise until it stops. For the SP62P and SP80PL press the down arrow (blue button) to lower the bowl until it stops. 2. Lift the bowl by the bowl handles and: a. slowly position the locking pin (located on the rear of the bowl) into the hole in the middle rear of the cradle (see fig 8-3).
  • Page 16 Operating Instructions ATTACHING THE AGITATOR TO THE MIXER (i.e., Beater, Hook, Whip) NOTE: It is easier to install the agitator prior to adding the ingredients into the bowl. 1. Rotate the bowl guard to the left so it rests in the open position (see fig 9-1). Excessive force used to open and close the bowl guard may damage the spring lock and bowl guard microswitch, and will void the warranty. 2. Slide the agitator slowly upwards onto the planetary shaft, fitting the shaft pin through the fig. 9-1 slot in the agitator (see fig 9-2). 3. Rotate the agitator clockwise to secure it onto the planetary shaft. MIXING INGREDIENTS Follow the capacity chart located on page 16 in this manual. Overloading or not following this chart will damage the mixer and void the warranty. fig. 9-2 Agitators should always rotate in a clockwise direction around the bowl. If the agitator moves counterclockwise, contact a licensed electrician immediately to remedy incorrect wiring. IMPORTANT: Make sure the speed control lever is on the first (1) speed. 1. Add the appropriate mixing ingredients into the bowl.
  • Page 17 Operating Instructions 5. Select the appropriate speed setting by lifting or lowering the speed control lever. Three fixed speeds are available for use: first (1), second (2), and third (3). NOTE: The SP62P has two speeds and the SP80PL has four fixed speeds. Gear Speed Product Type/Ingredient 1 (low) Heavy: mixing pizza, bread, pasta and donut doughs, waffle/cake batter, mashing potatoes 2 (medium) Medium: 2nd stage of mixing for donut dough, etc. 3 (high) Light: whipping cream, egg whites, meringue IMPORTANT: When mixing product always follow the recommended agitator and speed setting according to the capacity chart located on page 16 of this manual. 6. Press the green start button located on the middle of the control panel. Always STOP the mixer BEFORE changing speeds! Failure to do so may damage the gears or other parts and WILL void the warranty! 7. To change the speed while mixing:...
  • Page 18 Operating Instructions 12. Push each bowl clamp backwards to unlock the bowl from the bowl cradle. 13. Lift up slightly on the bowl so it clears the pins on the bowl cradle. Most batches are heavy. Always use two people to remove and transport the loaded bowl after mixing is complete. A bowl truck is included with the SP60, SP62P and SP80PL models and should be used to unload bowls containing more than 50 lbs. per batch.
  • Page 19 Operating Instructions SP62P AND SP80PL DIGITAL CONTROL INSTRUCTIONS Non-Timed / Manual Mode instructions and controls for the SP62P and SP80PL The mixer must be OFF before installing attachments! Do NOT use attachments while mixing! NOTE: Make sure the bowl is up and the bowl guard is closed. The mixer will not start if the bowl and the bowl guard are not in the proper operating position. Press the BOWL “Up” arrow to activate the power bowl lift. Set the speed control to the desired speed. NON-TIMED - MANUAL MODE 1. To begin operation of the mixer in Manual mode, press the “MAN” button. The display will illuminate a small dot of light in the lower right-hand corner of the seconds timer display. NOTE: Mixer will not start if bowl is not all the way up. Additionally, the bowl guard must be completely closed. 2. Press the “Start” button to begin mixing. Press “Stop” to discontinue mixing.
  • Page 20 Operating Instructions 3. Once the desired mix time has been set on the timer, press the “Start” button to begin mixing. Always STOP the mixer BEFORE changing speeds! NOTE: The SP62P and SP80PL will automatically shut off if the speeds are changed while the mixer is in operation. 4. Once the “Start” button has been pressed, the mixer timer numbers will begin to descend. The timer and mixer can be interrupted at any time by pressing the “Stop” button. If the timer cycle is interrupted and the mixer has not yet finished its set mixing time, the mixing cycle can be continued from where it left off by pressing the “Start” button. NOTE: If a cycle is interrupted by the bowl guard being opened or the speed of the mixer being changed, the mixer will stop. As soon as the fault is corrected, the “Start” button can be pressed to continue the programmed time. To add additional minutes or seconds to a mix time, “Stop” the mixer, press “TIMER” and adjust the cycle mixing time. Press the “Start” button to begin mixing once again. 5. At the end of a timed mixing cycle the timer will count down to “00” minutes and “00” seconds, the mixer will stop, and the timer will return to displaying the last mix cycle time that was entered. 6. To begin another mix cycle with the same set time as the previous mix, press the “Start” button. If the mix cycle time needs to be adjusted up or down, set the new desired time and then press the “Start” button to begin mixing. The mixer timer will always reset back to the last mix time that was set unless the plug or power is disconnected to the mixer. If power is lost to the mixer, the mixing time will need to be reset to the desired time. Page 13...
  • Page 21: Cleaning Instructions

    RECOMMENDED CLEANING REQUIRED ACTION FREQUENCY PART Agitators Hand-wash using mild soap and water, rinse, dry and Clean after each use. sanitize. Removable Bowl Guard Hand-wash using mild soap and water, rinse, dry and Clean after each use. sanitize or place in dishwasher. Bowl Using a sponge or cloth, mild soap and water, apply Clean after each use. pressure to ensure the bowl is clean, rinse, dry, and sanitize. The bowl can also be placed in a dishwasher. Rear Splash Guard Hand-wash using mild soap and water, rinse, dry and Clean after each use. sanitize. Bowl Cradle Hand-wash using mild soap and water, rinse, dry and Daily sanitize. Planetary Shaft Wipe with clean damp cloth, dry and sanitize. Apply a light Clean after each use. quantity of Globe oil (mineral oil) to the planetary shaft after cleaning. Exterior Hand-wash using mild soap and water, rinse, dry, and Daily sanitize. DO NOT use a water hose! Hub Interior Wipe with clean damp cloth, dry, and sanitize. Daily Page 14...
  • Page 22: Important Points

    Operation • Turn off the mixer prior to changing speeds. • Follow the capacity chart on page 16, especially for mixing dough. • Use only first (1) speed for mixing dough. 2nd speed should never be used on 50% AR or lower with the exception of the SP60. The SP60 requires a 50% reduction in batch size to mix in speed 2 with 50% AR dough. • If the unit shuts off during mixing (overload protection trips), reduce the batch size. Maintenance • Add only 2 pumps of grease to the planetary grease fitting once a year. Recommended Maintenance PART REQUIRED ACTION FREQUENCY Planetary Ring Reapply grease (e.g. black axle grease). Once a year. Inject grease (2 pumps only) into zerk fitting on the side of planetary. DO NOT overfill! Bowl Slide Rods Apply Globe oil (mineral oil) on the bowl slide rods. If the bowl becomes difficult to Raise and lower the bowl to distribute the oil onto raise or lower. the rods. Gear Oil Meter Contact a Globe authorized servicer to change the Once a year. When the gear oil (SP62P and gear oil. meter shows the oil being below SP80PL only) half of the circle. Page 15...
  • Page 23: Capacity Chart

    The following maximum capacities are intended as a guideline only. Varying factors such as the type of flour used, temperature of water used and other conditions may require the batch to be reduced. Product Agitator SP10 SP20 SP25 SP30/ SP40...
  • Page 24: Troubleshooting

    Troubleshooting Problem Possible Causes Action Required Mixer will not run. Bowl guard not in closed position. Rotate guard to the right until fully closed. Bowl not raised. Raise bowl to highest position. Timer is not engaged. Turn timer at least five minutes past “0”, then to desired time or set time to the green “on” position. Power not connected properly. Check all power connections. Plug into a live socket. (Do not use extension cord!) Test socket with another item. Building circuit breaker is off. Check breaker box. Internal overload tripped. SP25 & smaller models: Press stop button, then press reset button. Larger models: Wait two minutes. Press stop button then press start button. (If overload continues to trip, reduce batch size and/or adjust recipe!) Gear not engaged.
  • Page 25 Troubleshooting Problem Possible Causes Action Required Mixing time is too Three-phase mixer is wired wrong. Agitators should rotate clockwise around bowl. If not, long. electrician must rewire. Batch size too small. Increase batch size or use smaller bowl adapter kit. (Contact dealer for purchase) Incorrect recipe portions or Follow portions and temperatures per recipe temperatures. instructions. Bowl raise sticking Lack of lubrication on bowl slides. Lubricate bowl slides with mineral oil or food quality or not operational. grease. If still sticking, technician must clean bowl- raise mechanism. One or more gears Broken belt. Technician to replace belt. not working. Damaged or broken gear. Technician to replace gear. Always stop mixer before shifting gears! Mixer will not mix Incorrect or low voltage. Contact electrician.
  • Page 27: Limited Mixer Warranty

    Limited Mixer Warranty Globe Food Equipment Company (“GFE”) warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our instructions within North America and subjected to normal use, is free from defects in material or workmanship for a period of 2 years on parts (excludes wear/expendable parts). The labor warranty is 1 year on labor from original installation, or 18 months from actual shipment date, whichever date occurs first. Mixer attachments have a 1 year replacement warranty from invoice date. There is no labor warranty for mixer attachments. The vegetable slicing assembly, shredder/grater assembly, and meat grinder are considered mixer attachments. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED. GFE EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR EXPRESSED OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. GFE’S OBLIGATION AND LIABILITY UNDER THIS WARRANTY IS EXPRESSLY LIMITED TO REPAIRING AND REPLACING EQUIPMENT WHICH PROVES TO BE DEFECTIVE IN MATERIAL OR WORKMANSHIP WITHIN THE APPLICABLE WARRANTY PERIOD. All repairs pursuant to this Warranty will be performed by an Authorized Designated GFE Service Location during normal working hours. IN NO EVENT SHALL GFE BE LIABLE FOR...
  • Page 28: Electrical Diagram Sp25 Planetary Mixer 120V Single Phase

    Part 2 Electrical Diagram SP25 PLANETARY MIXER 120V Single Phase...
  • Page 31: Parts Catalog

    Part 3 Parts Catalog MIXERS MODEL: SP25 & SPC25...
  • Page 32: Globe Food Equipment Company

    MODEL: SP25 & SPC25 01-11-12 IMPORTANT! TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV, PART NUMBER, AND SERIAL NUMBER OF MIXER. GLOBE FOOD EQUIPMENT COMPANY 2215 East River Road Dayton, Ohio 45439 Parts Department Fax (937) 290-0585 Toll Free 1-800-745-6238 E-Mail: globeinfo@globeslicers.com...
  • Page 34 TABLE OF CONTENTS BASE 1 - 2 HEAD 3 - 4 PLANETARY GEARS 7 - 8 MOTOR MOTOR BRAKE - SPC MODELS ONLY SP25 ELECTRICAL DIAGRAM SP25 WIRING DIAGRAM SPC25 WIRING DIAGRAM...
  • Page 35 SP25/SPC25 BASE COMPONENTS...
  • Page 36 SP25/SPC25 BASE PARTS LIST ITEM DESCRIPTION PART NUMBER HARDWARE REAR GUARD X25036 SCREW, HEX HEAD X25097 M6x14mm X25097A WASHER, FLAT X25034 BOWL CRADLE *X25034-DG CRADLE SLIDE GUIDE X25035 WASHER, SPLIT LOCK X25098A SCREW, HEX HEAD X25098B M6x14mm DOWEL PIN, THREADED X25100 WASHER, SPLIT LOCK X25100A...
  • Page 37 SP25/SPC25 HEAD COMPONENTS...
  • Page 38 SP25/SPC5 HEAD PARTS LIST ITEM DESCRIPTION PART NUMBER HARDWARE X25004 COVER, TRANSMISSION *X25004-DG SCREW, FLAT HEAD M6x80mm X25190 COVER, SWITCH BOX X25002 SCREW, TRUSS HEAD X25001 M5x10mm GASKET X25003 CONTROL PANEL X10002 SCREW, TRUSS HEAD X10179 M4x10mm EMERGENCY STOP BUTTON X10050 START BUTTON X10049...
  • Page 39 SP25/SPC25 HUB ASSEMBLY COMPONENTS ITEM DESCRIPTION PART NUMBER HARDWARE ATTACHMENT HOLE PLUG X10007 ATTACHMENT HUB X25018 (INCLUDES X10004 & X10075) *X25018-DG GASKET X25018-1 OIL SEAL X10004 BEARING X10075 THRUST WASHER X25183 LEVEL DRIVE GEAR (35T) X10003 THUMB SCREW X10005 1/2-13x3/4" CAP SCREW, SOCKET HEAD M6x25mm M6x25mm...
  • Page 40 SP25/SPC25 PLANETARY COMPONENTS ITEM DESCRIPTION PART NUMBER PART NUMBER NUT, HEX X10008 WASHER, SPLIT LOCK X25020A PINION, BEATER (19T) X25021 BALL BEARING X10010 X10011 PLANETARY SHAFT HOLDER **X10011-DG BALL BEARING X10012 OIL SEAL X10013 PLANETARY SHAFT X10015 DOWEL PIN X10080 SHAFT KEY X25026 5x5x20mm...
  • Page 41 SP25/SPC25 GEARBOX COMPONENTS...
  • Page 42 SP25/SPC25 GEARBOX PARTS LIST ITEM DESCRIPTION PART NUMBER HARDWARE X25105 NUT, STOP WASHER, FLAT X25070A RETAINING RING X25106 STW-52 BALL BEARING X10102 LEAD-IN OIL PAD X25107 SLOW SPEED GEAR ASSEMBLY X25108-111 BUSHING X25108 DOWEL PIN X25109 SLICE SPRING X25110 GEAR, SLOW SPEED (46T) GEAR, BEVEL (46T) X10095 LEVEL DRIVE GEAR (35T)
  • Page 43 SP25/SPC25 MOTOR COMPONENTS ITEM DESCRIPTION PART NUMBER HARDWARE MOTOR, 3/4 HP 120/60/1 X25063 MOTOR, 3/4 HP 120/60/1 - MTR BRAKE X25063C SCREW, HEX HEAD X25064 M6x24mm WASHER, SPLIT LOCK X25064A WASHER, FLAT X25064B WHEEL, MOTOR COG (15T) X25066 SCREW, HEX HEAD X25070 M6x24mm WASHER, FLAT...
  • Page 44 SPC25 MOTOR BRAKE COMPONENTS ITEM DESCRIPTION PART NUMBER HARDWARE COVER, MOTOR BRAKE COMPONENTS X25500 SCREW, BUTTON HEAD M5x10mm GASKET X25500-1 TRANSMISSION COVER, MOTOR BRAKE VERSION X25004-1 MOTOR BRAKE, MAGNETIC X25501 WASHER, SPLIT LOCK CAP SCREW, SOCKET HEAD M5x12mm HEX STANDOFF X25502 SHAFT KEY 5x5x20mm...
  • Page 45 SP25 ELECTRICAL DIAGRAM - 120V SINGLE PHASE ITEM DESCRIPTION CAPACITOR EMERGENCY STOP BUTTON START BUTTON MICROSWITCH (INTERLOCK GUARD) MICROSWITCH (BOWL LIFT) CONTACTOR COIL, 120V 60Hz MOTOR, 3/4 HP SINGLE PHASE 120V CIRCUIT BREAKER TIMER...
  • Page 46 SP25 WIRING DIAGRAM - 120V SINGLE PHASE...
  • Page 47 SPC25 WIRING DIAGRAM - 120V SINGLE PHASE...
  • Page 48 995010 GFE-SP/SPC25 Rev C ECN1572 11Jan2012...
  • Page 49: Globe Food Equipment Co

    Part 4 Globe Food Equipment Co. July 2012 U.S.A. Parts Price List...
  • Page 50 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ SHARPENER COVER (ALL CHEFMATE MODELS) $30.80 SHARPENER ASSY GC9 $58.60 SHARPENER ASSEMBLY GC10 $58.60 Sharpener Assembly GC12 $65.20 Sharpening Stones-Coarse Grit GC9/GC10 $4.80 Sharpening Stone-Coarse Grit GC12/GC12D $5.60...
  • Page 51 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ End Weight Assembly GC10 $57.40 End Weight Assembly GC12 $77.40 Food Chute GC9 $69.60 Food Chute GC10 $86.00 Food Chute GC12 $110.00 Chute Support GC9 - Old 2 Holes $27.80...
  • Page 52 SHARPENER INSIDE WHEEL SHAFT $0.80 SHARPENER HINGE BOLT $4.80 SCREW $0.80 SHARPENER HANDLE $38.00 END WEIGHT LOCK (LOWER) $15.60 GLOBE SPECIAL LUBRICATING OIL (4 oz. Bottle) $10.20 Gear Lubricant/Semi-Fluid $29.00 Sprocket Washer $0.80 Sprocket Screw $1.20 Master Link $1.00 CHAIN CONNECTOR $29.40...
  • Page 53 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ TABLE MECHANISM COVER BRACKET $9.00 WIRE TIE $0.80 BASE FOOT EXTENSION $30.00 SWITCH BOX INSULATING BUSHING $0.80 POWER CORD STRAIN RELIEF $0.80 SELF TAPPING SCREW $0.80...
  • Page 54 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ 1068 ADAPTOR, HEAVY E/W HANDLE $23.20 1075 TABLE MECHANISM COVER $19.60 1079 CHAIN SLIDE SHAFT $9.80 1080 ECCENTRIC STUD $16.40 1081 CONNECTOR, CHAIN $31.60...
  • Page 55 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ 1168 TABLE $242.00 1177 SOLID STATE RELAY ASSY 220V $20.40 1178 KNIFE COVER SWITCH ASSEMBLY PRIOR TO 460198/485123/497128 $19.60 1180 BASE (AUTOMATIC) $262.00 1181 SEAL PLATE $13.60...
  • Page 56 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ 1277 TABLE ASSEMBLY $334.00 1278 UPPER SLIDE ASSEMBLY-MANUAL $146.00 1280 CHUTE RECEIVER ARM ASSY (3600 SERIES) $146.00 1281 TABLE SLIDE SHAFT S.S. $32.60 1283 UPPER RIM GUARD ASSEMBLY $47.60...
  • Page 57 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ 1392 SPANNER DRIVER $46.60 1399 BRACKET, FALSE SHARPENER BODY PRISON SPEC $119.00 1400 KNIFE RIM GUARD BRACKET PRISON SPEC $119.00 1403 SCREW, SPANNER - PRISON SPEC $2.60...
  • Page 58 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ 140056 4000 KIT 3 BOARDS & BOX $593.00 140057 3000 Series Upgrade Kit $590.00 140060 DVD Arby's Training $13.80 140061 Replacement Sharpening Stones Kit ( 2 pcs.) $155.00...
  • Page 59 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ 420024 ACTUATOR SHAFT SERVICE KIT PRIOR TO S/N 365500 $40.80 420030 SHAFT, SHARPENER WHEEL $6.40 420050 SLIDE BAR, UPPER (1") CHROME $51.40 420060 SLIDE BAR, LOWER (7/8") CHROME $51.20...
  • Page 60 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ 820032 SPACER, SHARPENER SLEEVE .375 $9.60 820036 Bearing Small NSK R12VV $30.00 820039 BALL BEARING $25.00 820042 THRUST WASHER $2.60 820045 BALL BEARING (Sealed) $13.80...
  • Page 61 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ 1021-T 12" KNIFE CARBON STEEL 3600 BP TEFLON COATED $237.00 102-AS-1 12" ALUMINUM CHUTE ASSEMBLY WITHOUT PRONGS $800.00 102-AS-11 12" STAINLESS CHUTE ASSEMBLY WITH FMEW $868.00...
  • Page 62 Slide Rod Steel Spring GC10 $1.20 50-A Slide Rod Steel Spring GC12/GC12D $0.80 519-1 Globe Special Lubricating Oil (Quart Bottle) $64.40 519-S GLOBE SPECIAL LUBRICATING OIL (4 oz. Zoom Spout Bottle) $11.40 521-D Silicon Lubricant $62.00 56-A Screw, Knife Mounting $0.80 59-A Knife Cover Insert GC9/10/12 $2.20...
  • Page 63 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ 68-1 Chute Support GC9 - New $27.80 69-1 Chute Support GC10 - New $39.60 699-16 VEGETABLE HOPPER E/W ASSY $283.00 699-32 NUT, ACORN $4.80...
  • Page 64 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ 747-16 KNIFE GEAR RETAINING RING $1.00 747-17 KNIFE PLATE GEAR - FIBRE $53.20 747-17B KNIFE PLATE GEAR - BRONZE $88.00 747-17N KNIFE PLATE GEAR - NYLON $49.80...
  • Page 65 $0.80 867-2 TABLE MECHANISM COVER BRACKET NUT $1.40 871-2 GFE Logo - Made in the USA $1.40 871-3 GFE Logo - Globe Name Only NO-Made in USA $2.60 873-CB CLEANING BRACE (MANUAL SLICER) $6.80 873-CB-1 3/8-16 HEX NUT $0.80 879-5 Interlock Retainer Stud $17.00...
  • Page 66 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ 892-3 DRIVE CHAIN (39 LINK) (13,14,15 TOOTH SPROCKETS) $5.60 900-1 BASE SHROUD SECURING SCREW $0.80 908-F GEAR MOTOR (FRANKLIN-115V/60HZ/1PH) $970.00 909-1 CHAIN SLIDE KNOB ASSEMBLY $35.40...
  • Page 67 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ 951-2 ROD CLIP $6.00 951-6 LIFT LEVER STOP BAR $15.80 951-7 WHEEL FOR LIFT LEVER $5.20 951-8 LIFT LEVER HANDLE (BLACK) $8.80 952-1 Relay Bracket/ cover $45.20...
  • Page 68 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ 968-1 Deflector Mounting Pin $7.00 969-1 Screw, Motor 3 1/2" $8.60 970-1N Spacer, Nylon Motor Mounting $4.20 970-2 3 POSITION SWITCH $11.00 971-1B CONTROL P.C.B. (110VAC) $369.00...
  • Page 69 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ 992-AS Main P.C.B. Assembly (4000), 110 VAC $528.00 995-10 SPEED KNOB $31.40 995-12AS AC-DC assembly 110VAC $260.00 995-13 INSULATOR, P.C.B. $5.40 995-18 ANCHOR, CABLE TIE $1.80...
  • Page 70 BASE FOR A2300 SHARPENER ASSY. NEW STYLE $65.80 A2400 Chute with Support Assy-Globe $456.00 A2410 Chute Support Assy (Globe) $207.00 A2420 Chute Assembly SS (Globe) (WITHOUT Support Assembly) $243.00 A245 SS Knife Cover (REF A250 FOR GC512) $183.00 A249 Knife Cover Knob $12.00 A2501 Receiving Tray GC510 $16.40...
  • Page 71 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ A290 Drive Hub Assembly GC512 $253.00 A293 Nylon Gear $64.00 A299 Shim $2.40 A3000 Chute Mounting Screw-Short GC510 $1.00 A3001 Chute Mounting Screw-Long GC510 $1.00...
  • Page 72 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ CC1211 Shaft Propeller Screw Assy. Knife Lock, Propeller, & Shaft $219.00 CC1213 Washer, Teflon CC12/CC22 $9.00 CC1214 Pin, Chopper Plate Lock CC12/ CC22 $6.40...
  • Page 73 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ CC2265 ELECTRIC STARTER (OLD) BLACK, HORSESHOE SHAPED $84.00 CC2265S ELECTRIC START (NEW) GOLD, SQUARE SHAPED $94.60 CTP-01 STRIPPER COMBS (A) $63.00 CTP-02 UPPER CHAMBER $231.00...
  • Page 74 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ E36263616 Thermal Print Head Assy GSP30/30A $353.00 E429500 Cover Battery GS30/GS30T $3.00 E528402 Transformer GS30/GS30T $30.00 E680411 Key Sheet GS30/GS30T $11.60 E89034804 EP-ROM FOR GSP30A Program B0410D $64.00...
  • Page 75 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ ET36-1 KNIFE MOTOR GBS/SBS10 MODELS $200.00 ET37-1 KNIFE MOTOR GBS/SBS12 MODELS $213.00 ET58 KNIFE GBS/SBS12 MODELS $295.00 SHARPENING STONE GAS/GBS/SAC/SBS MODELS $5.60 ET74 COVER, BOTTOM GAS/GBS/SAC/SBS MODELS $42.00...
  • Page 76 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ F3521112 <obsolete - MOTOR ASSY 115V 60HZ 500/550 INCLUDES PINION GEAR & $0.00 F3521114 <obsolete - ENDSHIELD MOTOR SHAFT END> $0.00 F3521602 <obsolete - AXLE KNURL NUT>...
  • Page 77 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ L3030100 DRIVE BELT $124.00 L3030709 STONE, HONING $15.20 L3030710 STONE, SHARPENING $15.20 L3040313 CAPACITOR 10UF $35.20 L4010064 INSERT, KNIFE COVER $10.40 L4020172 COVER, KNIFE $368.00...
  • Page 78 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ M066-1 Chute Support G10, G12, G12A $145.00 M067 HANDLE,CHUTE SUPPORT $12.20 M068 SCREW $0.80 M069 SUPPORT,TABLE G10, G12 $32.40 M070 SCREW $0.80 M072 TABLE G12 & G12A $145.00...
  • Page 79 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ M319 KNIFE HUB ASSEMBLY G12, G12A $112.00 M349 KNIFE COVER ASSEMBLY C12, G12, G12A $132.00 M352 CHUTE SLIDE ASSEMBLY $57.20 M352BA CHUTE SLIDE ASSEMBLY FOR AUTOMATIC ONLY $67.80...
  • Page 80 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ MCB28 TABLE ADJUSTMENT KNOB G10, G12, G12A $16.40 MCB28B TABLE ADJUSTMENT KNOB SCR12 $22.80 MCB3 TABLE G10 $125.00 MCB36 ROD, TABLE SLIDE C12 $13.60...
  • Page 81 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ MS43/1 KNIFE MOTOR G14 $330.00 MS51 DRIVE BELT G14 $27.60 MS77/5 MOTOR SEAL G14 $9.20 P100 PS10 Indicator Assembly Serialized Part $673.00 P101 PS10 Indicator Overlay $60.40...
  • Page 82 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ U01141065004 CONVEYOR DRIVE SHAFT $25.20 U01141065007 LEFT/RIGHT SHAFT KIT PLUS WASHER & NUT $7.20 U01141065008 BACK SHAFT $32.20 U01141065009 FRONT SHAFT $31.00 U01151066092 REAR PANEL GG36G/GG36PG $106.00...
  • Page 83 U06051470590 HEAD ASSEMBLY, 10 LB. FRYER GLOBE - BACK HOOK $286.00 U06051470592 LEFT HEAD ASSEMBLY 32LB. FRYER GLOBE - BACK HOOK $295.00 U06051470593 RIGHT HEAD ASSEMBLY 16 & 32 LB GLOBE - BACK HOOK $295.00 U06051470847 MAIN INJECTOR #38 NG $10.40 U06051470851 MAIN INJECTOR #47 NG X 2 $20.80...
  • Page 84 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ U66011800034 SCREW $4.80 U66021810003 WASHER $3.20 U66021810016 WASHER $1.80 U66991845009 BUTTON $0.80 U99991999001 CERAMIC TUBE $1.00 X01056 PLANETARY GEAR GCM40 $136.00 X01057 TOOL SHAFT $150.00...
  • Page 85 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ X08062 REAR COVER $36.80 X08063 SCREW $1.60 X08065-74 BOWL LIFT HANDLE ASSEMBLY $36.80 X08078 STRAIN RELIEF $6.40 X08079 POWER CORD $16.00 X08082 CIRCUIT BREAKER $31.60...
  • Page 86 List $ X10006 HUB ATTACHMENT $63.00 X10007 ATTACHMENT HOLE PLUG $6.40 X10008 STOP NUT $3.20 X10008-82 COMPLETE PLANETARY ASSEMBLY FOR SP10/SP20 (ITEMS 1 - 8B) $262.00 X10009 PINION BEATER (19 TOOTH) $25.20 X10010 BALL BEARING $12.60 X10011 PLANETARY HOLDER $115.00...
  • Page 87 GASKET (GEAR SHIFT) $6.40 X10217 GREASE TUBE W/O ZERT $6.40 X10296 FACEPLATE AND TIMER ASSY (SP10, SP20, SP25) $42.00 X10900 GREASE FITTING $2.20 X20011-S PLANETARY HOLDER - NEW STYLE SP10, 20, 25 FOR XXSCRP-20 USE $148.00 rev. 5/30/2012 Page 38 of 50...
  • Page 88 FRONT INTERLOCK GUARD ASSY $158.00 X20087 DOWEL SCREW $3.20 X200S1 SS REMOVABLE BOWL GUARD ASSY. SP20 ONLY $169.00 X200S2 PLASTIC SLIDE SHEATH ASSY. SP10-25 REMOV. GUARD (1-5) $89.40 X200S3 SPRING PLUNGER HARDWARE SP10-25 REMOV. GUARD (2-5) $8.60 X20123 $3.20 X20132 STOP NUT $3.20...
  • Page 89 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ X25050 BACK PLATE $4.80 X25051 SCREW $1.60 X25052-55 GEAR SHIFT LEVER ASSEMBLY $63.00 X25059 CLUTCH $31.60 X25063 MOTOR SP25 (3/4 HP) 120/60/1 $261.00 X25067-1 DRIVE BELT SP25 (255L) $36.80...
  • Page 90 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ X30019-28 COMPLETE PLANETARY ASSY FOR SP30 $379.00 X30020 LOCK WASHER & NUT $3.20 X30021 PINION BEATER (21 TOOTH) $110.00 X30023 PLANETARY SHAFT HOLDER $164.00...
  • Page 91 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ X30085 SUPPORT TUBE-REAR (80MM) $4.80 X30086 SCREW, ELEC MTG PLATE-REAR (110MM) $1.00 X30090 SLIDE SHEATH - METAL $99.80 X30090P SLIDE SHEATH - PLASTIC $95.00 X30091 $19.00...
  • Page 92 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ X30154P OVERLOAD RELAY SP30P KIT USE X30011PABB & X30154PABB $223.00 X30158 BELT TENSIONER $31.60 X30162-163 FRONT/REAR RUBBER FEET GUARDS (SET/4) $31.60 X30167 BOWL CLAMP STOP PIN $6.40...
  • Page 93 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ X40068-2 MOTOR SP40P (2HP) 220/60/1 $694.00 X40070-2 CAPACITOR - RUN 50mf $63.00 X40072-2 DRIVE BELT (S8M-896) $174.00 X40073 LEVEL KEY $3.20 X40077 TRANSMISSION CASE COVER $116.00...
  • Page 94 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ X50150-2 TRANSMISSION SHAFT-NEW STYLE SPLINED $247.00 X5A05-1 ON/OFF/SPEED SELECTOR $31.60 X5A13-1 MIXER COVER $63.00 X5A15 POTENTIOMETER $44.20 X5A16 INSULATION PAD $6.40 X5A20-1 ELECTRONIC CIRCUIT BOARD $84.00...
  • Page 95 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ X60068-2 MOTOR SP60P (3HP) 220/60/1 $710.00 X60070-2 CAPACITOR - RUN 70mf $92.60 X60073 LEVEL KEY $3.20 X60077 TRANSMISSION CASE COVER $118.00 X60078 BALL BEARING $12.60...
  • Page 96 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ X62D48 Drive Shaft 1 per $404.00 X62D49 Key Way - 10x10 1 per $3.80 X62D50 Bronze Bushing 1 per $31.60 X62D51 Drive Shaft Gear - 41T 1 per $158.00...
  • Page 97 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ X80D15 SPRING WASHER $3.80 X80D16 $3.80 X80D17 BALL BEARING $30.00 X80D18 MASTER SHAFT PAD $19.00 X80D19 GEAR, MASTER SHAFT (17T) $221.00 X80D21 CLUTCH SLEEVE $286.00...
  • Page 98 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ X80F10 BALL BEARING $73.60 X80F11 OIL SEAL $14.00 X80F12 $2.00 X80F13-1 PLANETARY SHAFT - NEW STARTING SERIAL 7810173 $353.00 X80F14 PLANETARY SHAFT PIN $12.00...
  • Page 99 Globe Food Equipment Co. July 2012 U.S.A Parts Price List Item No. Item Description List $ XP1008 HOUSING HUB (XVGA/XVSA) $148.00 XP1011 FIBER GASKET (XVGA/XVSA) $3.20 XP1012 UPPER HINGE PIN-LONG (XVGA/XVSA) $22.80 XP1013 LOWER HINGE PIN-SHORT (XVGA/XVSA) $22.80 XP1014 LATCH PIN (XVGA/XVSA) $20.20...
  • Page 100 Ref: NAVSEAINST 4160.3 NAVSEA S0005-AA-GYD-030/TMMP NAVSEA/SPAWAR TECHNICAL MANUAL DEFICIENCY/EVALUATION REPORT (TMDER) INSTRUCTIONS: Continue on 8 ½” x 11” on page if additional space is needed. 1. Use this report to indicate deficiencies, problems and recommendations relating to publications. 2. For CLASSIFIED TMDERs see OPNAVINST 5510H for mailing requirements. 3.
  • Page 101 FOLD HERE AND TAPE SECURELY PLEASE DO NOT STAPLE INCLUDE COMPLETE ADDRESS PROPER POSTAGE FOR OFFICIAL USE ONLY COMMANDER CODE 310 TMDERs NAVSURFWARCENDIV NSDSA 4363 MISSILE WAY BLDG 1389 PORT HUENEME CA 93043-4307 FOLD HERE AND TAPE SECURELY PLEASE DO NOT STAPLE...
