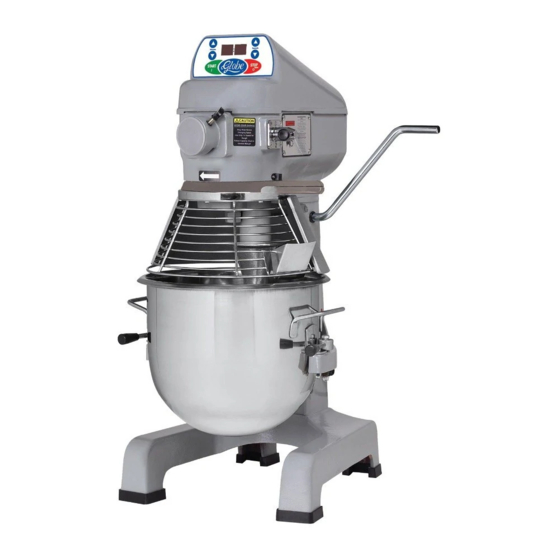

Summary of Contents for Globe SP10

Page 1 1. Visit our website at www.globeslicers.com (select the Parts / Support drop down). 2. Or call the Globe Service Department at 937-299-8625 and ask for contact information for your local service company. Visit our website for information on additional products available from Globe.
Page 3: Table Of Contents
TROUBLESHOOTING ............................18-19 LIMITED MIXER WARRANTY ...........................20 GLOBE FOOD EQUIPMENT COMPANY 2153 DRYDEN RD. DAYTON, OH 45439 PHONE: 937-299-5493 TOLL FREE: 800-347-5423 FAX: 937-299-4147 E-MAIL: globeinfo@globeslicers.com WEBSITE: www.globeslicers.com © Globe Food Equipment Company, 2013 12062012/05102013 Ver. 1 Rev. 3_2012 Page 3...
Page 4: Attention Owners And Operators
Attention Owners and Operators Globe’s equipment is designed to provide safe and productive processing of food products as long as the equipment is used in accordance with the instructions in this manual and is properly maintained. Unless the operator is adequately trained and supervised there is a possibility of serious injury.
Page 5: Key Components Of The Mixer
Key Components of the Mixer Minute Up/ Digital Timer Display Down Controls Seconds Up/Down Controls Start Button Attachment Hub Stop Button Thumbscrew Attachment Hub Bowl Lift Lever Planetary Grease Fitting Bowl Guard Handle Planetary Shaft Bowl Lift Wheel Bowl Handle (Models SP40 and SP60) Bowl Clamp...
Page 6: Installation
5. Use at least two other people to tilt the unit and install the rubber feet. 6. A bolt down template and bolts are available for the SP10, SP20, or SP25. Contact Globe if needed. 7. Inspect the mixer to ensure all parts have been provided (i.e. bowl, beater, whip, and dough hook). The SP62P only has a bowl, dough hook, and bowl truck.
Page 7: Operating Instructions
Installation CONNECTING TO ELECTRICAL POWER cont’d. If the unit needs to be hard-wired, have a licensed electrician connect the unit to the power supply. Three Phase Units: You must confirm proper rotation of all 3 phase mixers prior to using the mixer. There is a 50% chance your 3 phase mixer is properly rotating if you are using it on 3 phase power.
Page 8 Operating Instructions 2. To rotate the bowl guard to its open position, grasp the separated handles on the bowl guard and move them, together as one, clockwise to open/rotate the bowl guard. To close the bowl guard, grasp the separated handles and move them together as one, counterclockwise to close/rotate the bowl guard back into a locked position.
Page 9 Operating Instructions ATTACHING THE AGITATOR TO THE MIXER (i.e., Beater, Hook, Whip) NOTE: It is easier to install the agitator prior to adding the ingredients into the bowl. 1. Rotate the bowl guard to the left so it rests in the open position (see fig 9-1). Excessive force used to open and close the bowl guard may damage the spring lock and bowl guard microswitch, and will void the warranty.
Page 10 Operating Instructions Always STOP the mixer BEFORE changing speeds! Failure to do so may damage the gears or other parts and WILL void the warranty! 6. To change the speed while mixing: a. press the red stop button, then wait for the agitator to come to a complete stop. b.
Page 11 Operating Instructions Before ‘Starting’ the mixer: Always change speeds BEFORE Starting the Mixer! Failure to do so may damage the gears or other parts and WILL void the warranty! USING THE MIXER’S DIGITAL CONTROLS AND TIMER SP62P and SP80PL mixer owners only: read through this section and continue to page 13 for further operating instructions for use of the digital controls on your mixer.
Page 12 Operating Instructions HOW TO USE THE ATTACHMENT HUB Never put your hand into the feed chute when using any mixer attachment. Only operate the attachment hub in MANUAL mode. DO NOT attempt to mix ingredients in the bowl while using the hub. The mixer must be OFF before installing attachments! Do NOT use attachments while mixing! Thumbscrew 1.
Page 13 Operating Instructions SP62P AND SP80PL DIGITAL CONTROL INSTRUCTIONS Untimed / Manual Mode instructions and controls for the SP62P and SP80PL The mixer must be OFF before installing attachments! Do NOT use attachments while mixing! NOTE: Make sure the bowl is up and the bowl guard is closed. The mixer will not start if the bowl and the bowl guard are not in the proper operating position.
Page 14 Operating Instructions 4. Once the “Start” button has been pressed, the mixer timer numbers will begin to descend. The timer and mixer can be interrupted at any time by pressing the “Stop” button. If the timer cycle is interrupted and the mixer has not yet finished its set mixing time, the mixing cycle can be continued from where it left off by pressing the “Start”...
Page 15: Cleaning Instructions
Planetary Shaft Wipe with clean damp cloth, dry and sanitize. Apply a light Clean after each use. quantity of Globe oil (mineral oil) to the planetary shaft after cleaning. Exterior Hand-wash using mild soap and water, rinse, dry, and Daily sanitize.
Page 16: Important Points
Important Points Your new Globe mixer will provide years of uninterrupted service, but only if you do the following: Installation • Do not use an extension cord to connect electrical power. • Make sure all 3 Phase units (see data plate) run in the direction of the arrow on front of the machine.
Page 17: Capacity Chart
The following maximum capacities are intended as a guideline only. Varying factors such as the type of flour used, temperature of water used and other conditions may require the batch to be reduced. Product Agitator SP10 SP20 SP25 SP30/ SP40...
Page 18: Troubleshooting
Troubleshooting Problem Possible Causes Action Required Mixer will not operate Bowl guard not in closed position. Rotate guard to the right until fully closed. Bowl not raised. Raise bowl to highest position. Power not connected properly. Check all power connections. Plug into a live socket.
Page 19 Troubleshooting Problem Possible Causes Action Required Mixing time is too long Three-phase mixer is wired wrong Agitators should rotate clockwise around bowl. If not, electrician must rewire Batch size too small Increase batch size or use smaller bowl adapter kit. (Contact dealer for purchase) Incorrect recipe portions or Follow portions and temperatures per...
Page 20: Limited Mixer Warranty
Limited Mixer Warranty Globe Food Equipment Company (“GFE”) warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our instructions within North America and subjected to normal use, is free from defects in material or workmanship for a period of 2 years on parts (excludes wear/expendable parts). The labor warranty is 1 year on labor from original installation, or 18 months from actual shipment date, whichever date occurs first.
