Model SP5

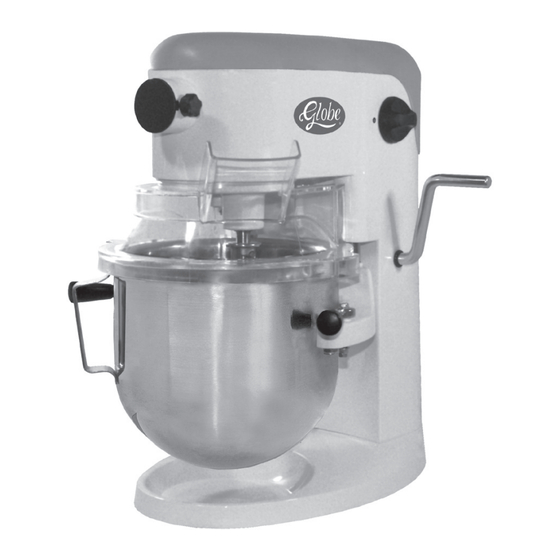

Instruction Manual for the Globe Mixer
For Service on Your Mixer:
1. Visit our website at www.globeslicers.com
(select the Support / Parts drop down).
2. Or call the Globe service department at 937-297-7247 and ask for contact
information for your local service company.
Visit our website for information on additional products available from Globe.
www.globeslicers.com
Slicers, Mixers, Vegetable Cutters, Meat Choppers and Scales
- IMPORTANT SAFETY NOTICE -
This manual contains important safety instructions which
must be strictly followed when using this equipment.
SP5
Model
Serial #:
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Globe SP5
Summary of Contents for Globe SP5
- Page 1 Instruction Manual for the Globe Mixer Model For Service on Your Mixer: 1. Visit our website at www.globeslicers.com (select the Support / Parts drop down). 2. Or call the Globe service department at 937-297-7247 and ask for contact information for your local service company. Visit our website for information on additional products available from Globe. www.globeslicers.com Slicers, Mixers, Vegetable Cutters, Meat Choppers and Scales - IMPORTANT SAFETY NOTICE - This manual contains important safety instructions which must be strictly followed when using this equipment.
-
Page 3: Table Of Contents
CAPACITY CHART ..............................12 TROUBLESHOOTING ............................13-14 LIMITED MIXER WARRANTY ...........................15 GLOBE FOOD EQUIPMENT COMPANY 2153 DRYDEN RD. DAYTON, OH 45439 PHONE: 937-299-5493 TOLL FREE: 800-347-5423 FAX: 937-299-4147 E-MAIL: globeinfo@globeslicers.com WEBSITE: www.globeslicers.com © Globe Food Equipment Company, 2009 Printed in the U.S.A. 7-2009... -
Page 4: Attention Owners And Operators
Attention Owners and Operators Globe’s equipment is designed to provide safe and productive processing of food products as long as the equipment is used in accordance with the instructions in this manual and is properly maintained. Unless the operator is adequately trained and supervised there is a possibility of serious injury. Owners of this equipment bear the responsibility to make certain that this equipment is used properly and safely, strictly follow all the instructions contained in this manual and the requirements of local, state or federal law. Owners should not permit anyone to touch this equipment unless they are over 18 years old, are adequately trained and supervised and have read and understood this manual. Owners should also ensure that no customers, visitors or other unauthorized personnel come in contact with this equipment. Please remember that Globe cannot anticipate every circumstance or environment in which its equipment will be operated. It is the responsibility of the owner and the operator to remain alert to any hazards posed by the function of this equipment. If you are ever uncertain about a particular task or the proper method of operating this equipment, ask your supervisor. This manual contains a number of precautions to follow to help promote safe use of this equipment. Throughout the manual you will see additional warnings to help alert you to potential hazards. Warnings affecting your personal safety are indicated by: Warnings related to possible damage to the equipment are indicated by: If any warning labels or this manual are misplaced, damaged, or illegible, or if you require additional copies, please contact your nearest representative or Globe directly for these items at no charge. Please remember that this manual or the warning labels do not replace the need to be alert, to properly train and supervise operators and to use common sense when using this equipment. -
Page 5: Key Components Of The Mixer
Key Components of the Mixer Attachment Hub Splash Cover Bowl Lift Lever Planetary Shaft Bowl Handle Bowl Clamp FRONT VIEW Speed Control Ingredient Chute on Splash Cover Bowl Slides Bowl Cradle Bowl Overload Reset Button Power Cord SIDE VIEW Page 5... -
Page 6: Installation
GROUNDING TYPE, CONTACT AN ELECTRICIAN. DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE THIRD GROUND PRONG FROM THE POWER CORD OR USE ANY ADAPTER PLUG (Fig. 6-1 and Fig. 6-2). Fig. 6-1 Correct Fig. 6-2 Incorrect 5. Complete the warranty card and mail it to Globe or register online at www.globeslicers.com/warranty.asp. 6. Clean the mixer prior to using it. Follow the cleaning instructions on page 10. NOTE: It is normal for the factory to apply a generous amount of grease in and on the machine before initial use. Excess high pressured grease (brownish-black) may also be found on the planetary shaft and some drippings may be found in the bowl. -
Page 7: Operating Instructions
Operating Instructions TO AVOID SERIOUS PERSONAL INJURY: • DO NOT operate the mixer before reading the instruction manual first. • ALWAYS disconnect or unplug electrical power before cleaning, servicing or adjusting any parts or attachments. • NEVER bypass, alter, modify or attach any unauthorized parts to this equipment. Doing so may create hazards and will void warranty. • NEVER operate mixer with a damaged power cord or plug. • ALWAYS keep hands, hair and clothing away from moving parts. NOTE: Wash all attachments and bowl prior to use. Fig. 7-1 ATTACHING THE BOWL TO THE MIXER NOTE: Install the bowl BEFORE attaching the agitators. 1. Lower the bowl by pushing the bowl lift lever backwards and down to its resting position. 2. Lift the bowl by the bowl handle and a. slowly position the locking pin (located on the rear of the bowl) into the hole in the Fig. 7-2... - Page 8 Operating Instructions MIXING INGREDIENTS Follow the capacity chart located on page 12 in this owners manual. Overloading or not following this chart will damage the mixer and void the warranty. IMPORTANT: Make sure the speed control dial is in the off position. 1. Add the appropriate mixing ingredients into the bowl. Fig. 8-1 2. If desired, place the splash cover on top of the bowl and align the pins on the guard with the holes on the rim of the bowl (see fig. 8-1 and 8-2). 3. Lift completely up on the bowl lift lever until the bowl locks into position (see fig. 8-3). 4. Select the appropriate speed setting by rotating the speed selector knob clockwise starting from 0. To increase mixer speed, continue turning the selector button clockwise to desired speed. Fig. 8-2 Recommended speeds while mixing: Position Speed Attachment Product Type/Ingredient 1 (stir) All Start to incorporate ingredients 2 (low)
-
Page 9: Operating Instructions
Operating Instructions IMPORTANT: Abrupt stops due to over batch size is detrimental to the quality and life of the mixer and may lead to future mechanical failures. Make sure liquid to solid ratios are properly followed during preparation of mixes. Example: Bread Dough 60% AR, Max speed of 2, Max Capacity of 5 lbs 50% AR, Max speed of 2, Max Capacity of 4 lbs 40% AR, Max speed of 2, Max Capacity of 3 lbs (See chart on page 12 for a detailed measurement of ingredients.) (For pizza dough with lower moisture content, please consult Globe.) Higher gluten flour, batch should be reduced by 25% NOTE: Reduce batch size by 10% if chilled flour, water below 70°F or ice is being used in the mix. IMPORTANT: it is recommended for heavier loads, the mixer should not run longer than fifteen minutes without pausing for a cool down period of at least fifteen minutes or more before resuming mixing. For lighter loads, the mixer should not run longer than thirty minutes without pausing for a cool down period of at least thirty minutes or more before resuming mixing. 7. When the ingredients have been thoroughly mixed, rotate the speed selector knob and begin turning the speed control dial counterclockwise to the zero “0” position. IMPORTANT: Do not attempt to remove the bowl or splash cover while the mixer is in motion. 8. Lower the bowl by pushing the bowl lift lever backwards and down to its resting position. 9. Remove the splash cover by lifting the cover off of the bowl. 10. Remove the agitator from the planetary shaft by lifting it upwards then rotating it counterclockwise until it is unlocked. Lower the agitator and remove from planetary shaft. 11. Push each bowl clamp backwards to unlock the bowl from the bowl cradle. 12. Lift up slightly on the bowl so it clears the pins on the bowl cradle. Page 9... -
Page 10: Cleaning Instructions
Cleaning Instructions • ALWAYS unplug the mixer before cleaning. • FOLLOW the supplier’s instruction on all detergents. Clean mixer, attachments and parts thoroughly after use. Lubricate moving parts appropriately with Vaseline or vegetable oil, after wash-down, for better lubrication and to prevent breakdown of shaft and its parts. • DO NOT use any lubricant that can be harmful to humans to ingest as some lubricants may come in contact with some mixing processes. • DO NOT hose down, immerse or pressure wash any part of the mixer. • NEVER use a scrubber pad, steel wool or abrasive material to clean the mixer. • NEVER use bleach (sodium hypochlorite) or bleach based cleaner. • ALWAYS remove the agitator after each batch. If not, the agitator can become stuck on the shaft and be difficult to remove. The entire mixer, including removable parts, must be thoroughly cleaned and sanitized using the procedures identified by your local health department and the ServSafe Essentials published by the National Restaurant Association Educational Foundation (NRAEF). -
Page 11: Important Points
Important Points Your new Globe mixer will provide years of uninterrupted service, but only if you do the following. Operation • Turn off the mixer prior to changing or resetting attachments. • Follow the capacity chart on page 12, especially for mixing dough. • Use only speeds (1-2) for mixing dough. • If the unit shuts off during mixing (overload protection trips), reduce the batch size. Page 11... -
Page 12: Capacity Chart
Capacity Chart The following maximum capacities are intended as a guideline for the SP5 mixer only. Varying factors such as the type of flour used, temperature of water used and other conditions may require the batch to be reduced. Product Agitator Butter Liquids Sugar Eggs and Speed Speed Capacity Purpose Flour Egg Whites Wire Whip 3/4 pts 100% Whipped Cream Wire Whip 2 qts 100% Batter Flat Beater 2 qts Mashed Potatoes Flat Beater 4 lbs Fondant Icing Flat Beater 4 lbs Cookie Dough Flat Beater 3 lbs Cake Batter Flat Beater 5 lbs Pie Dough... -
Page 13: Troubleshooting
Troubleshooting Problem Possible Causes Action Required Mixer will not start / run. Power not connected properly. Check all power connections. Plug into a live socket. (Do not use extension cord!) Test socket with another item. Building circuit breaker is off. Check breaker box. Internal motor overload tripped. Press the motor reset button on back column. Mixer speed dial is not set to zero Move mixer speed dial back to zero (0). (0) then speed can be moved up. Mixer stops during mixing. Internal motor overload tripped. Press the motor reset button on back Motor overheated. column. Wait five (5) minutes before restarting. Mixer is noisy. Mixer is not installed on level Adjust surface or relocate mixer. surface. Bowl not seated correctly or clamps Ensure bowl is seated into bowl not in place. cradle correctly and bowl clamps are locked into place. Agitator not fitted properly. -
Page 14: Troubleshooting
Troubleshooting Problem Possible Causes Action Required Broken Dough Hook Batch size too large for mixer. Reduce batch size. (See Capacity Chart) Adjust recipe. Ingredients too cold or too large. Wait for ingredients to reach room temperature before mixing. Reduce chunk size. Discoloration of mixed product. Bowl has not been thoroughly Clean the bowl again using a cleaned. scrubber pad and applying pressure (refer to page 10). Agitators won’t go onto the planetary Lack of lubrication and/or cleaning of Wipe planetary shaft with a clean shaft easily. planetary shaft. damp cloth and lubricate the shaft with mineral oil or food quality grease. Page 14... -
Page 15: Limited Mixer Warranty
Limited Mixer Warranty Globe Food Equipment Company (“GFE”) warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our instructions within North America and subjected to normal use, is free from defects in material or workmanship for a period of 2 years on parts (excludes wear/expendable parts). The labor warranty is 1 year on labor from original installation or 18 months from actual shipment date, whichever date occurs first. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED. GFE EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR EXPRESSED OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. GFE’S OBLIGATION AND LIABILITY UNDER THIS WARRANTY IS EXPRESSLY LIMITED TO REPAIRING AND REPLACING EQUIPMENT WHICH PROVES TO BE DEFECTIVE IN MATERIAL OR WORKMANSHIP WITHIN THE APPLICABLE WARRANTY PERIOD. ALL REPAIRS PURSUANT TO THIS WARRANTY WILL BE PERFORMED BY AN AUTHORIzED DESIGNATED GFE SERVICE LOCATION DURING NORMAL WORK- ING HOURS. IN NO EVENT SHALL GFE BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES TO BUYER OR ANY THIRD PARTY, INCLUDING, WITHOUT LIMITATION, LOSS OF PROPERTY, PERSONAL INJURY, LOSS OF BUSINESS OR PROFITS OR OTHER ECONOMIC LOSSES, OR STATUTORY OR EXEM- PLARY DAMAGES, WHETHER IN NEGLIGENCE, WARRANTY, STRICT LIABILITY OR OTHERWISE. This Warranty is given only to the first purchaser from a retail dealer. No warranty is given to subsequent transferees. This Warranty does not cover product failures caused by: failure to maintain, neglect, abuse, damage due to excess water, fire, normal wear, improper set up and use. Periodic maintenance is not covered. This Warranty is not in force until such time as a properly completed and signed Installation/Warranty Registration has been received by GFE within 30 days from the date of installation. THE FOREGOING WARRANTY PROVISIONS ARE A COMPLETE AND EXCLUSIVE STATEMENT BETWEEN THE BUYER AND SELLER. GFE NEITHER ASSUMES NOR AUTHORIzES ANY PERSONS TO ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH SAID EQUIPMENT. Example of items not covered under warranty, but not limited to just these items: Acts of God, fire, water damage, vandalism, accident, theft. Freight damage. Improper installation or alteration of equipment. Use of generic or after market parts. Repairs made by anyone other than a GFE designated servicer. Lubrication. Expendable wear parts. (This includes the bowl, flat beater, wire whip, and spiral dough hook.) Cleaning of equipment. Misuse or abuse. Page 15...
