Model SP20
Instruction Manual for Globe Mixers
(Models SP10, SP20, SP25, SP30, SP30P,
SP40P, SP60P, SP62P, and SP80PL)
For Service on Your Mixer
1. Visit our website at www.globeslicers.com (select Service button)
2. Or...Call Globe service department at 937-297-7247 and ask for the contact
information for your local service company
Visit our website for information on additional products available from Globe.
www.globeslicers.com
Slicers, Mixers, Vegetable Cutters, Meat Choppers, and Scales
- IMPORTANT SAFETY NOTICE -
This manual contains important safety instructions which
must be strictly followed when using this equipment.
Model #:
Serial #:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP10 and is the answer not in the manual?

Questions and answers

Related Manuals for Globe SP10

Summary of Contents for Globe SP10

  • Page 1 For Service on Your Mixer 1. Visit our website at www.globeslicers.com (select Service button) 2. Or...Call Globe service department at 937-297-7247 and ask for the contact information for your local service company Visit our website for information on additional products available from Globe.

  • Page 2: Table Of Contents

    CAPACITY CHART ..............................13 TROUBLESHOOTING ............................14-15 LIMITED MIXER WARRANTY ...........................16 GLOBE FOOD EQUIPMENT COMPANY 2153 DRYDEN RD. DAYTON, OH 45439 PHONE: 937-299-5493 FAX: 937-299-4147 E-MAIL: globeinfo@globeslicers.com WEBSITE: www.globeslicers.com © Globe Food Equipment Company, 2008 Printed in the U.S.A. 7-2008 Page 3...

  • Page 3: Attention Owners And Operators

    Warnings related to possible damage to the equipment are indicated by: Globe has put several warning labels in the English language on its mixers. French labels are also available and can replace the English labels at the owner’s discretion. If the warning labels or this manual are misplaced, damaged, or illegible, or if you require additional copies, please contact your nearest representative or Globe directly for these items at no charge.

  • Page 4: Key Components Of The Mixer

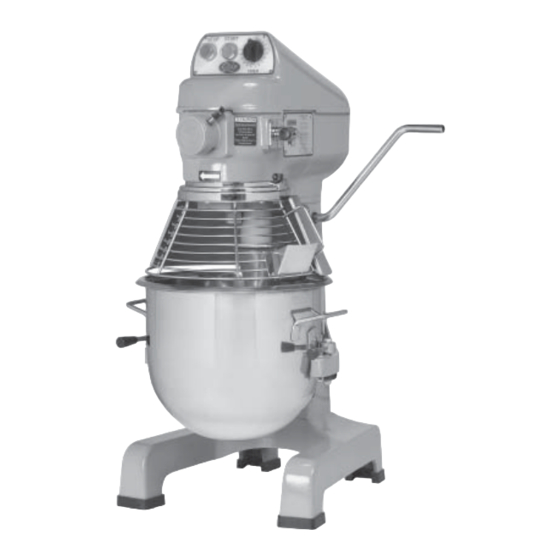

    Key Components of the Mixer Stop Button Timer Start Button Attachment Hub Thumbscrew Attachment Hub Bowl Lift Lever Planetary Grease Fitting Bowl Lift Wheel (Models SP40P and Planetary Shaft SP60P) Bowl Handle Bowl Clamp Power Bowl Lift Controls (Models SP62P and SP20 FRONT VIEW SP80PL) Gear Oil Meter...

  • Page 5: Installation

    5. Use at least two other people to tilt the unit and install the rubber feet. 6. A bolt down template and bolts are available for the SP10, SP20, or SP25. Contact Globe if this is needed. 7. Inspect the mixer to ensure all parts have been provided (i.e. bowl, beater, whip, and dough hook). The SP62P only has a bowl and dough hook.

  • Page 6: Operating Instructions

    (counterclockwise) damage will occur to the mixer! 9. Complete the warranty card and mail it to Globe or register online at www.globeslicers.com/warranty.asp. 10. Clean the mixer prior to using it. Follow the cleaning instructions on page 11. NOTE: It is normal for the factory to apply a generous amount of grease in and on the machines before initial use.
  • Page 7 Operating Instructions ATTACHING THE AGITATOR TO THE MIXER (i.e., Beater, Hook, Whip) NOTE: It is easier to install the agitator prior to adding the ingredients into the bowl. 1. Rotate the bowl guard to the left so it rests in the open position (see fi g 8-1). Excessive force used to open and close the bowl guard may damage the spring lock and bowl guard microswitch, and will void the warranty.
  • Page 8 Operating Instructions 5. Select the appropriate speed setting by lifting or lowering the speed control lever. Three fi xed speeds are available for use: fi rst (1), second (2), and third (3). NOTE: The SP62P has two speeds and the SP80PL has four fi...
  • Page 9 Operating Instructions 12. Push each bowl clamp backwards to unlock the bowl from the bowl cradle. 13. Lift up slightly on the bowl so it clears the pins on the bowl cradle. Most batches are heavy. Always use two people to remove and transport the loaded bowl after mixing is complete.

  • Page 10: Cleaning Instructions

    Planetary Shaft Wipe with clean damp cloth, dry, and sanitize. Apply a light Clean after each use. quantity of Globe oil (mineral oil) to the planetary shaft after cleaning. Exterior Hand-wash using mild soap and water, rinse, dry, and sanitize.

  • Page 11: Important Points

    Important Points Your new Globe mixer will provide years of uninterrupted service, but only if you do the following. Installation • Do not use an extension cord to connect electrical power. • Make sure all 3 Phase units (see data plate) run in the direction of the arrow on front of the machine.

  • Page 12: Capacity Chart

    Capacity Chart The following maximum capacities are intended as a guideline only, varying factors such as the type of fl our used, temperature of water used, and other conditions may require the batch to be reduced. Product Agitator SP10 SP20 SP25 SP30/ SP40P...

  • Page 13: Troubleshooting

    Troubleshooting Problem Possible Causes Action Required Mixer will not run. Bowl guard not closed. Rotate guard to the right until fully closed. Bowl not raised. Raise bowl to highest position. Timer is not engaged. Turn timer at least fi ve minutes past “0”, then to desired time or set time to the green “on”...
  • Page 14 Troubleshooting Problem Possible Causes Action Required Mixing time is too Three-phase mixer is wired wrong. Agitators should rotate clockwise around bowl. If not, long. electrician must rewire. Batch size too small. Increase batch size or use smaller bowl adapter kit. (Contact dealer for purchase) Incorrect recipe portions or Follow portions and temperatures per recipe...

  • Page 15: Limited Mixer Warranty

    Limited Mixer Warranty Globe Food Equipment Company (“GFE”) warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our instructions within North America and subjected to normal use, is free from defects in material or workmanship for a period of 2 years on parts (excludes wear/expendable parts).
