Model SP20
Instruction Manual for Globe Mixers
Models SP10, SP20, SP25, SP30, SP30P,
SP40, SP60, SP62P, SP62P-4 and SP80PL
For all after sales support, visit www.globefoodequip.com
For additional Technical Support call Globe at 1-866-260-0522.
This manual contains important safety instructions which
Maintain and use this manual as a reference for training.
•
Complete the Warranty Registration
•
Find an Authorized Servicer
•
View Parts Catalogs
- IMPORTANT SAFETY NOTICE -
must be strictly followed when using this equipment.
Model #:
Serial #:
Advertisement
Table of Contents
Related Manuals for Globe SP62P-4
Summary of Contents for Globe SP62P-4
- Page 1 • Find an Authorized Servicer • View Parts Catalogs For additional Technical Support call Globe at 1-866-260-0522. - IMPORTANT SAFETY NOTICE - This manual contains important safety instructions which must be strictly followed when using this equipment. Maintain and use this manual as a reference for training.
-
Page 3: Table Of Contents
TROUBLESHOOTING ............................18-19 LIMITED MIXER WARRANTY ...........................20 GLOBE FOOD EQUIPMENT COMPANY 2153 DRYDEN RD. DAYTON, OH 45439 PHONE: 937-299-5493 TOLL FREE: 800-347-5423 FAX: 937-299-4147 E-MAIL: info@globefoodequip.com WEBSITE: www.globefoodequip.com © Globe Food Equipment Company, 2019 04162019 980165 Ver. 4 Rev. -_2019 Page 3... -
Page 4: Attention Owners And Operators
Warnings related to possible damage to the equipment are indicated by: Globe has put several warning labels in English on its mixers. French labels are also available and can replace the English labels at the owner’s discretion. If the warning labels and/or manual are misplaced, damaged, or illegible, or if you require additional copies, please contact your nearest representative or contact Globe directly to request these items at no charge. -
Page 5: Key Components Of The Mixer

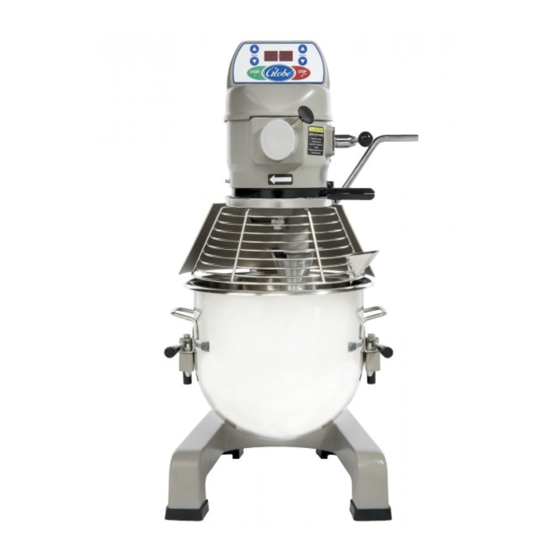

Key Components of the Mixer Minute Up/ Digital Timer Display Down Controls Seconds Up/Down Controls Start Button Attachment Hub Stop Button Thumbscrew Attachment Hub Bowl Lift Lever Planetary Grease Fitting Bowl Guard Handle Planetary Shaft Bowl Lift Wheel Bowl Handle (Models SP40 and SP60) Bowl Clamp... -
Page 6: Installation
Globe first. 2. Remove the corrugated box from the skid by removing the bands on the box. NOTE: The SP62P, SP62P-4 and SP80PL are shipped in a wooden crate; only the bolts at the bottom of the crate (all four sides) need to be removed. -
Page 7: Operating Instructions
Installation CONNECTING TO ELECTRICAL POWER cont’d. If the unit needs to be hard-wired, have a licensed electrician connect the unit to the power supply. Three Phase Units: Before use, confirm proper rotation of all 3 phase mixers. There is a 50% chance your 3 phase mixer is properly rotating if you are using it on 3 phase power. - Page 8 Fig. 8-2 position. For models SP40 and SP60 rotate the bowl lift wheel counterclockwise until it stops. For the SP62P, SP62P-4 and SP80PL press down arrow (blue button) to lower bowl until it stops. 2. Lift bowl by bowl handles and: a.
- Page 9 2. Rotate bowl lift lever up until the bowl locks into position. On the SP40 and SP60 rotate bowl lift wheel clockwise until bowl is all the way up into position. For the SP62P, SP62P-4 and SP80PL press the up arrow (blue button) until bowl is up into position.
- Page 10 Change the speed by raising or lowering the speed control lever. c. Press the green START button to restart the mixer. NOTE: The SP62P, SP62P-4 and SP80PL will automatically shut off if the speed is changed while the mixer is in operation.
- Page 11 Operating Instructions Before starting mixer: Always change speeds BEFORE starting mixer. Failure to do so can damage the gears or other parts and WILL void the warranty! USING MIXER’S DIGITAL CONTROLS AND TIMER Read through this section and continue to page 13 for further operating instructions for use of the digital controls on your mixer.
- Page 12 Change speed by raising or lowering speed control lever. c. Press green START button to restart mixer. NOTE: The SP62P, SP62P-4 and SP80PL will automatically shut off if the speeds are changed while the mixer is in operation. Page 12...
- Page 13 3. Once the desired mix time has been set on the timer, press the START button to begin mixing. Always STOP the mixer BEFORE changing speeds. NOTE: The SP62P, SP62P-4 and SP80PL will automatically shut off if the speeds are changed while mixer is in operation.
- Page 14 Operating Instructions 4. Once the START button is pressed, mixer timer numbers will begin to descend. The timer and mixer can be interrupted at any time by pressing the STOP button. If the timer cycle is interrupted and the mixer has not yet finished its set mixing time, the mixing cycle can be continued from where it left off by pressing the START button.
-
Page 15: Cleaning Instructions
Planetary Shaft Wipe with clean damp cloth; dry and sanitize. Apply a light Clean after each use. quantity of Globe oil (mineral oil) to the planetary shaft after cleaning. Exterior Hand-wash using mild soap and water; rinse, dry, and Daily sanitize. -
Page 16: Important Points
Important Points Globe mixer will provide years of uninterrupted service if you do the following: Installation • Do not use an extension cord to connect electrical power. • Make sure all 3 Phase units (see data plate) run in the direction of the arrow on front of the machine. -
Page 17: Capacity Chart
Product Agitator SP10 SP20 SP25 SP30/ SP40 SP60 SP62P SP62P-4 SP80PL and Speed SP30P Waffle or Hotcake Batter Flat Beater 2 qts. 3 qts. 5 qts. 8 qts. -
Page 18: Troubleshooting
Troubleshooting Problem Possible Causes Action Required Mixer will not operate Bowl guard not in closed position. Rotate guard to the right until fully closed. Bowl not raised. Raise bowl to highest position. Power not connected properly. Check all power connections. Plug into a live socket. - Page 19 Troubleshooting Problem Possible Causes Action Required Mixing time is too long Three-phase mixer is wired wrong Agitators must rotate clockwise around bowl. If not, electrician must rewire Batch size too small Increase batch size or use smaller bowl adapter kit. (Contact dealer for purchase) Incorrect recipe portions or Follow portions and temperatures per...
-
Page 20: Limited Mixer Warranty
6 months after factory shipment to a dealer or distributor. Payment by GFE for service under this warranty requires that service be authorized in advance. Contact Globe Technical Support to arrange for service.
