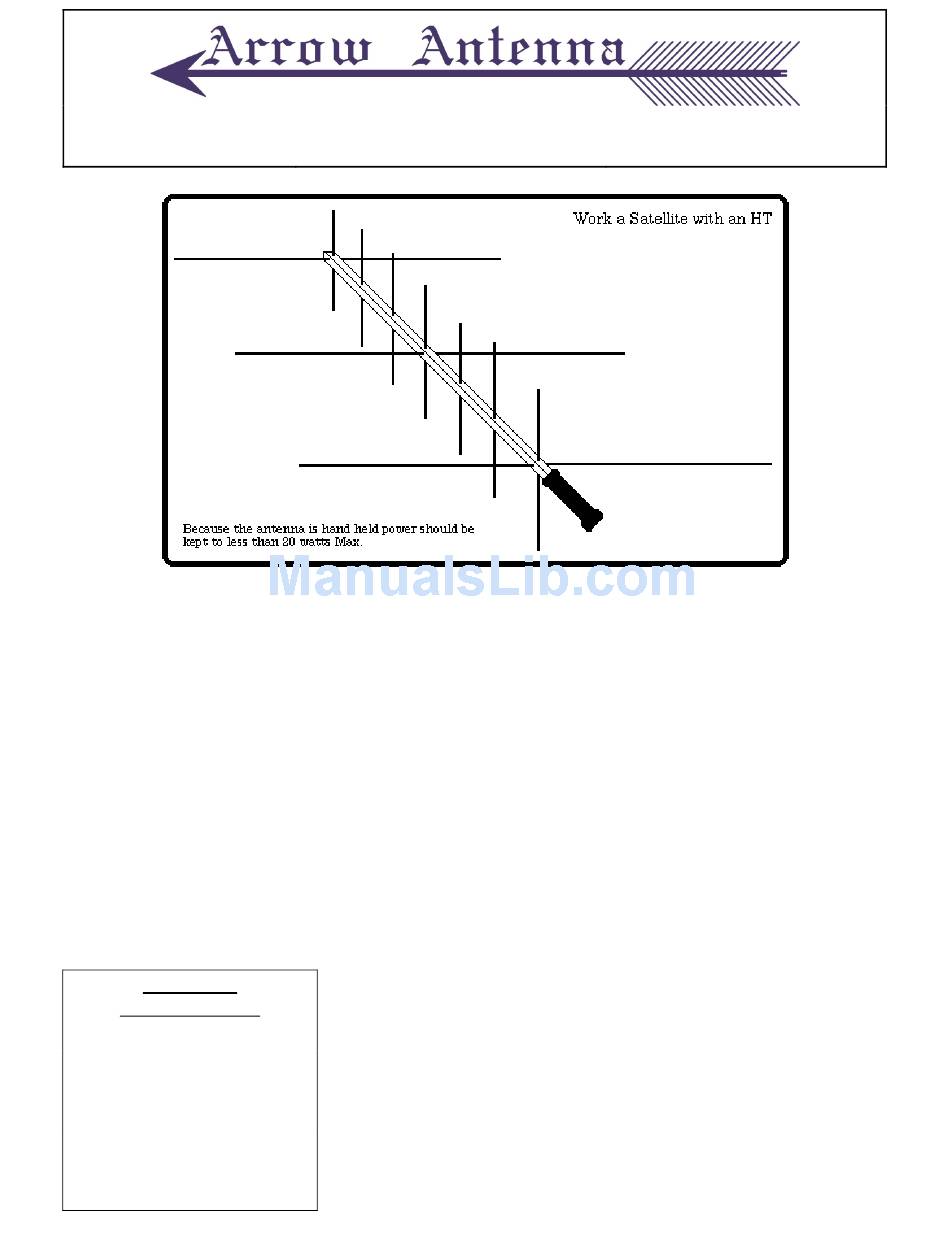

Arrow Antenna 146/437-1 Instruction Sheet

Arrow Antenna 146/437-1 Instruction Sheet

Arrow ii series

Advertisement

911 E. Fox Farm Rd. #2
Cheyenne, WY 82007

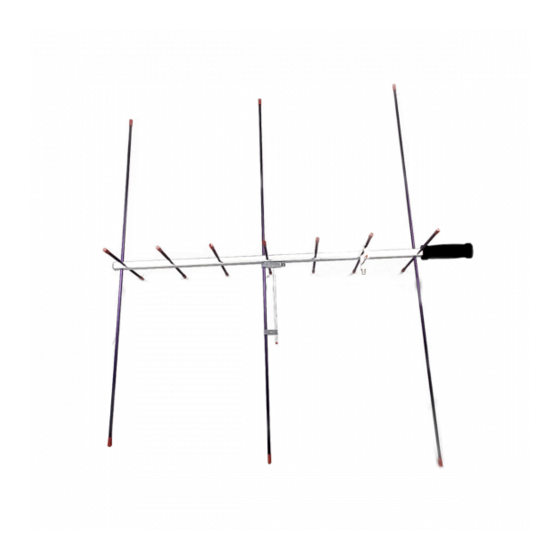

The Arrow II line of antennas has been engineered to provide maximum gain and efficiency in
the smallest practical size & weight. ONLY 19 oz.
Aluminum Arrow Shafts are used for elements.
The 2 in-line gamma matches (not shown) are pre-assembled & pre-tuned. One connector for
VHF and one for UHF. These are BNC only.
The boom is ¾" square (with round corners) 37 ½" long. Note the big black foam grip for easy
holding.
Boom & elements all have plastic tips for safety.
Guarantee
No hassle refund
If you are not completely
satisfied with any ARROW
ANTENNA Product it can
be returned for a FULL
refund less shipping and
handling within 90 DAYS
of purchase date.
SIMPLY THE BEST
ArrowAntennas.com
Simply the Best
Arrow II
Satellite
AO27 Up-link 145.580 Down-link 436.800
(307) 222-4712
info@arrowantennas.com
Antenna
Model
146/437-10 (All Suffixes)
3 Elements for VHF
7 Elements for UHF
We don't invent antennas.
We simply build them better.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 146/437-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Arrow Antenna 146/437-1

  • Page 1 ArrowAntennas.com 911 E. Fox Farm Rd. #2 (307) 222-4712 Cheyenne, WY 82007 info@arrowantennas.com Simply the Best Arrow II Satellite Antenna AO27 Up-link 145.580 Down-link 436.800 The Arrow II line of antennas has been engineered to provide maximum gain and efficiency in the smallest practical size &...
  • Page 2 Part # Price Model 146/437-10 (All Suffixes) Parts List 14643710 $20.00 Boom - with End Caps and Foam Handle (37 1/2 ") 146437BP $29.00 2 piece Boom - with End Caps and Foam Handle (37 1/2 ") 437 6.000 $18.00 437 Driven Element pair - with Gamma Match, End Caps, Inserts &...
  • Page 3 Arrow II Hand Held Portable (Satellite) Model 146/437-10 (All Suffixes) 3/4" Drawing NOT to scale. 6 ½” Aluminum Tube 7” Aluminum Tube 2” 1 ¾” Plastic 7 ½” Plastic 7 ½” 16 ga. Copper Wire 8” 16 ga. Copper Wire 2 ¾” Boom Length 37 ½”...
  • Page 4 1. Remove the foam grip and the plastic end cap from the boom. ARROW ANTENNA 2. Slide the Duplexer in the end of the boom at an angle. Reseat new plastic end cap. Product it can be returned 3.
  • Page 5 Page 5...
  • Page 6 ASSEMBLY CHECKLIST FOR OUR SHIPPING DEPARTMENT. Circle Antenna Being Assembled: 146/437-10 146/437-10BP 146/437-10WBP 146/437-10W ___Solid Boom ___Split Boom ___Duplexer installed to match driven elements. ___10 element holes ___Hole are clear ___4 tripod holes ___End Caps ___Foam Handle Grip ___2 @ 20 1/4" elements ___1 @ 19 1/4"...
