The OSJ220 does NOT require a ground plane.
Ideal for mounting:
• In an attic
• On a roof vent pipe
• On a wooden (or Metal) pole
• On Fiberglass or Plastic Vehicles
(Motorhomes, Trucks, Boats)
Mount it just about anywhere.
SO-239 Feed Connector
Covers 220 - 225 MHz with a VSWR of less than 1.5:1.
Omni-Directional
The OSJ220 is a Heavy Duty Antenna. The elements are
made from 3/8" solid aluminum with a heavy duty angle
mounting bracket.
Nothing to tune. Nothing to adjust.
Guarantee
No hassle refund
If you are not completely satisfied with
any ARROW ANTENNA Product it
can be returned for a FULL refund less
shipping and handling within 90 DAYS
of purchase date.
SIMPLY THE BEST
ArrowAntennas.com
Simply the Best
We don't invent antennas.
We simply build them better.
(307) 222-4712
info@arrowantennas.com

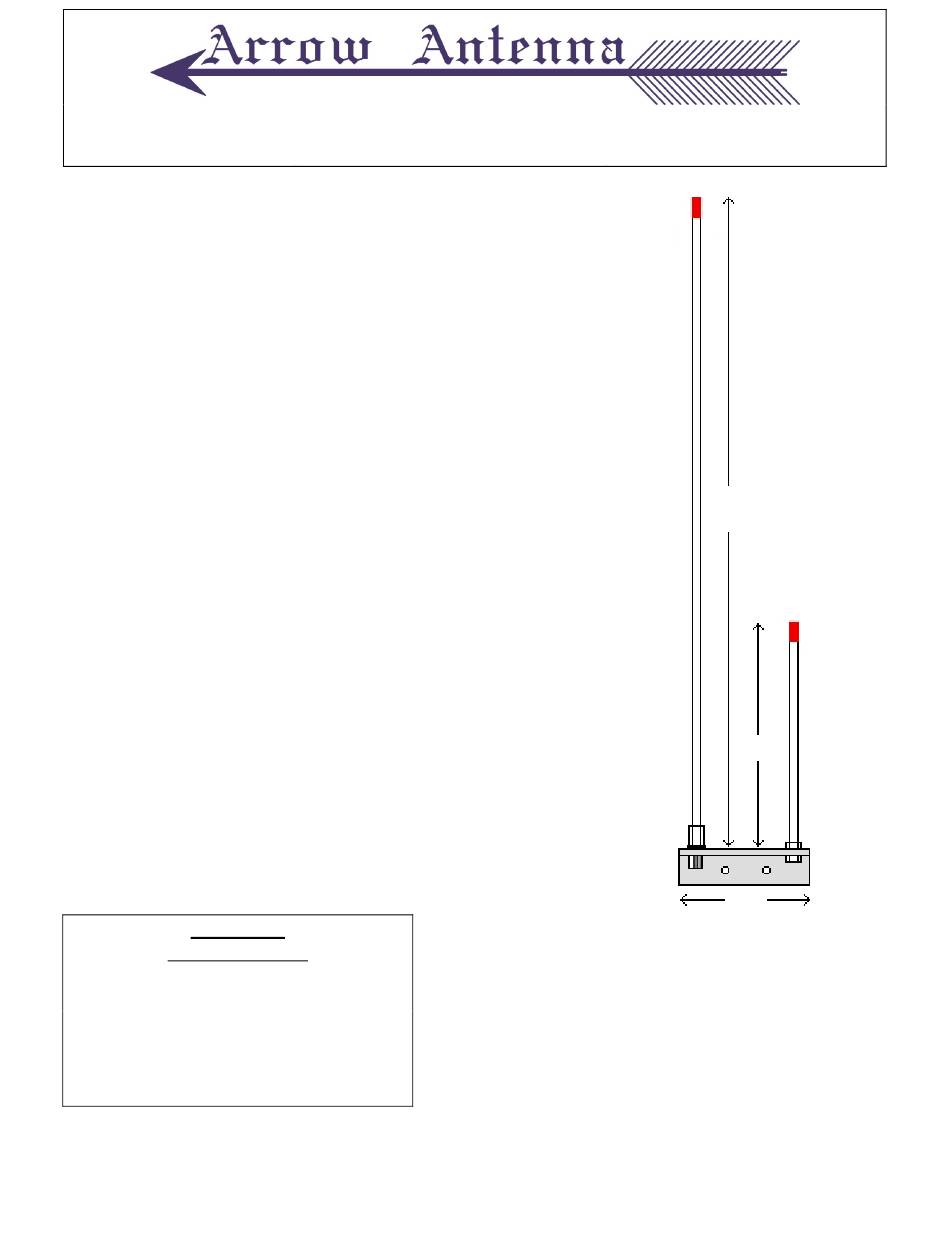

38"
12 ¼"
4"
Model
OSJ 220
Open Stub J-Pole
Page 1
Advertisement
Table of Contents
Related Manuals for Arrow Antenna OSJ220
Summary of Contents for Arrow Antenna OSJ220
- Page 1 Covers 220 - 225 MHz with a VSWR of less than 1.5:1. Omni-Directional 12 ¼” The OSJ220 is a Heavy Duty Antenna. The elements are made from 3/8” solid aluminum with a heavy duty angle mounting bracket. Nothing to tune. Nothing to adjust.
- Page 2 Part # Price Model OSJ 220 Parts List OSJ22001 3/8" X 38" Driven Element with Coupling Nut OSJ22002 3/8" X 12 ¼” Element with 2 Stainless Jam Nuts. OSJ22003 3/16" X 1 1/2" X 1 1/2" X 4" Assembly Bracket 52S206 Saddle Clamp for mounting to Mast up to 1 1/2"...
- Page 3 1 ½” x 1 ½” x 4” Assembly / Mounting Bracket 38” 12 ¼” ½” 3/8” Threaded 3” Saddle Clamp 1 ½” Mast Page 3...
- Page 4 SWR is basically a way of testing the impedance of your Antenna System. The Antenna System has two parts. 1. Coax and connectors. 2. Antenna. Before you can test or tune the Antenna, you have to test the other half of the system first, the Coax & Connectors.
- Page 5 CHECKLIST FOR OUR SHIPPING DEPARTMENT OSJ220 ___3/8" x 38" Driven Element with Coupling Nut ___3/8" x 12 ¼” Element with 2 Stainless Jam Nuts. ___3/16" x 1 1/2" x 1 1/2" x 4" Assembly Bracket ___Saddle Clamp ___SO-239 Stud & Nylon Shoulder Washer ___2 @ 2 3/4"...
