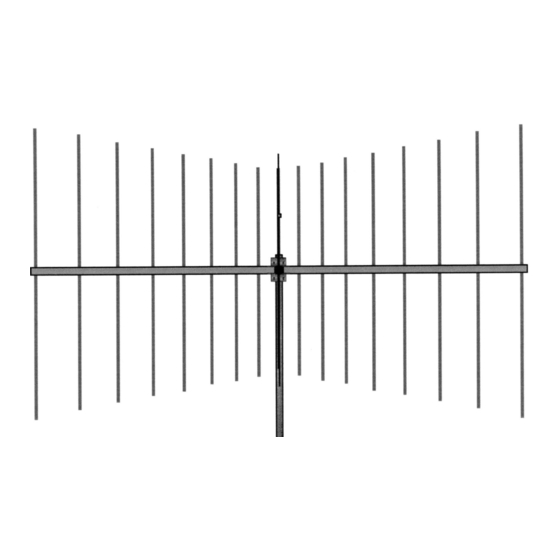

Corner Reflector for 220 MHz
(307) 222-4712
info@arrowantennas.com
Model
CR220
We don't invent antennas.
We simply build them better.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR220 and is the answer not in the manual?

Questions and answers

Related Manuals for Arrow Antenna CR220

Summary of Contents for Arrow Antenna CR220

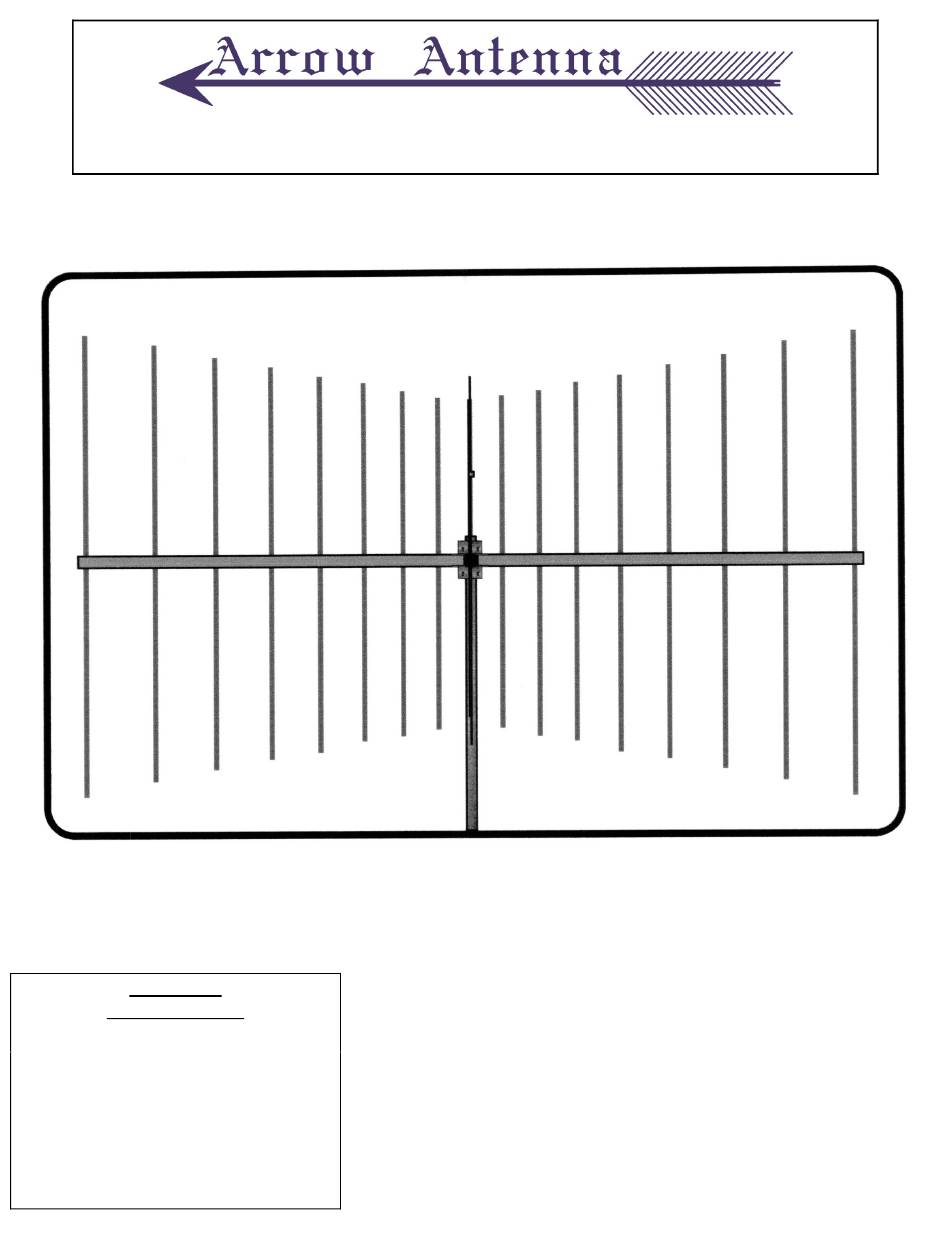

  • Page 1 Guarantee Model No hassle refund If you are not completely satisfied CR220 with any ARROW ANTENNA Product it can be returned for a FULL refund less shipping and handling within 90 DAYS of purchase date. We don’t invent antennas. SIMPLY THE BEST We simply build them better.
  • Page 2 Model CR 220 Parts List Part Part Description Price Number Req. Each CR220 01 Center Boom 1” x 22.5” $18.00 CR220 02 Reflector Boom 1” x 48” $22.00 CR220 03 Reflector Element ¼” x 32” $6.25 CR220 04 Driven Element ¼” x 24.375”...
  • Page 3 Assembly Instructions Tools Required: #1 Philips screw driver and 2 @ 7/16” wrenches. 1. Unwrap all parts. 2. Remove strapping tape from ends of reflector booms. 3. Remove one of the black plastic end caps from each reflector boom. 4. Remove elements from within reflector booms. 5.
  • Page 4 Assembled Reflector Boom 4-40 x ¾” Screw Holding Element in Boom Assembled Center Boom Assembled Top View (Dark holes have bolts. Light holes have elements.) Page 4...
  • Page 5 Gamma Match Setting Drawing NOT to scale. Red Plastic Cap 0.5” Shorting Bar Aluminum Tube (9.625”) 9.5” Copper Wire (3.75”) Plastic Tube (8”) Page 5...
  • Page 6 CHECKLIST FOR OUR SHIPPING DEPARTMENT CR220 ___N connector ___Connector replacement sign. ___1” x 22.5” Center Boom ___2 @ 1” x 48” Reflector Booms ___26 Element holes ___26 Set screw holes ___Black gromet in boom adjacent to connector hole. ___Black end caps.
