911 E. Fox Farm Rd. #2
Cheyenne, WY 82007
Guarantee
No hassle refund
If you are not completely
satisfied with any
ARROW ANTENNA
Product it can be returned
for a FULL refund less
shipping and handling
within 90 DAYS of
purchase date.
SIMPLY THE BEST
ArrowAntennas.com
Simply the Best

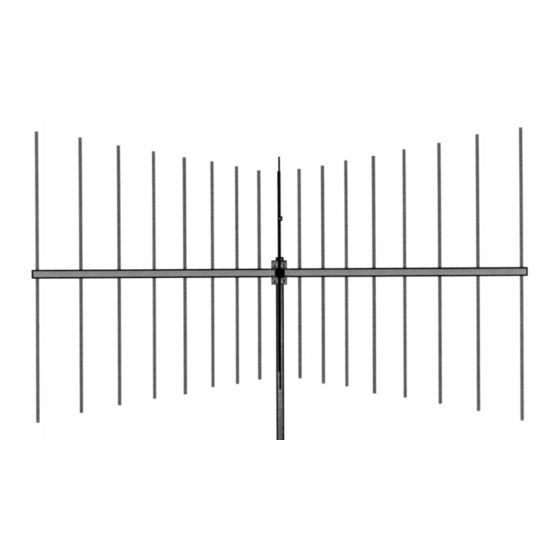

Corner Reflector for 440 MHz
(307) 222-4712
info@arrowantennas.com
Model
CR440
We don't invent antennas.
We simply build them better.
Page 1
Advertisement
Table of Contents
Related Manuals for Arrow Antenna CR440
Summary of Contents for Arrow Antenna CR440
- Page 1 Simply the Best Corner Reflector for 440 MHz Guarantee Model No hassle refund If you are not completely CR440 satisfied with any ARROW ANTENNA Product it can be returned for a FULL refund less We don’t invent antennas. shipping and handling We simply build them better.
- Page 2 Model CR440 Parts List Part Part Description Price Number Req. Each CR14801 Center Boom 1” x 12.5” $18.00 CR14802 Reflector Boom 1” x 24” $22.00 CR14803 Reflector Element ¼” x 16” $6.25 146S03 Driven Element ¼” x 13” $6.00 CR14805 Assembly Plate (trapezoid shaped 2”...
- Page 3 Assembly Instructions Tools Required: #1 Philips screw driver and 2 @ 7/16” wrenches. 1. Unwrap all parts. 2. Remove strapping tape from ends of reflector booms. 3. Remove one of the black plastic end caps from each reflector boom. 4. Remove elements from within reflector booms. 5.
- Page 4 Assembled Reflector Boom 4-40 x ¾” Screw Assembled Center Boom Holding Element in Boom Assembled Top View (Dark holes have bolts. Light holes have elements.) Page 4...
- Page 5 Above photos show how the elements and bracket are assembled. Page 5...
- Page 6 Gamma Match Setting Drawing NOT to scale. Red Plastic Cap 0.75” Shorting Bar Aluminum Tube (3”) 2 15/16” Copper Wire (2.25”) Plastic Tube (2”) Page 6...
- Page 7 CHECKLIST FOR OUR SHIPPING DEPARTMENT CR440 ___N connector ___Connector replacement sign. ___1” x 12.5” Center Boom ___2 @ 1” x 16” Reflector Booms ___26 Element holes ___26 Set screw holes ___Black gromet(s) in boom adjacent to connector hole. ___6 Black end caps.
