- Page 1 Antari HZ-400 ORDERCODE 60662...
- Page 2 New products are being launched regularly. We work hard to keep you, our customer, satisfied. You can get some of the best quality, best priced products on the market from Antari. So next time, turn to Antari for more great equipment.
-
Page 3: Table Of Contents
Antari Antari Hazer Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview…………………………………………………………………………………………………..…… Installation................…...…………………………………….…… Installing the hazer............………………………………………..………… Set Up and Operation..............……..……………………………….… Procedure………….................……………………………………… Remote control operation..............…………………………………….. DMX Setting………………………………………………………………………………………………………. Maintenance...................………..………….…….……………... Performance notes................…………………….………………... Troubleshooting................………………….………………….…. Product Specifications..............……………….…….…………………. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before filling the tank! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device have to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
• If your Antari Hazer fails to work properly, discontinue use immediately. Drain all hazer liquid from the tank, pack the unit securely (preferably in the original packing material), and return it to your Antari dealer for service. -
Page 6: Description Of The Device

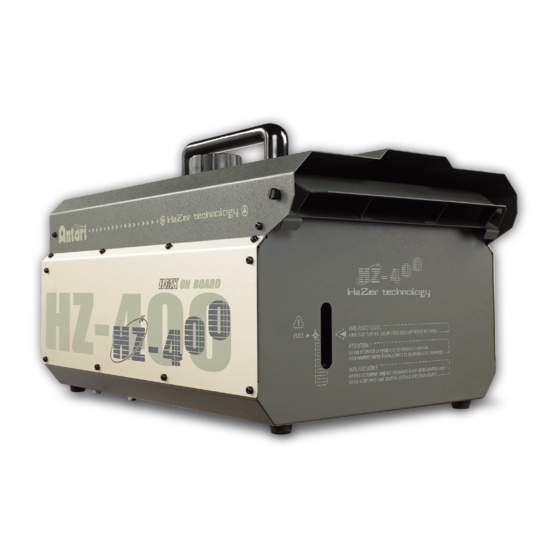

Description of the device Features The HZ-400 fogger is a versatile and powerful hazer from Antari. • 400 W Heater • no warm-up time. • Fog output min. 115m • DMX controllable Overview Fig. 1 1) 2,5 L Liquid tank... - Page 7 4) DMX Dip Switches 5) Remote Control 6) DMX input 7) DMX output 8) ON / OFF Fig. 2 9) Fluid Level Fig. 3...
-
Page 8: Installation
HZ-100 and HZ-400. Attach the receiver’s magnetic base to the hazer. Plug the receiver’s cable into the hazer’s remote control input. Using the sending unit, your ANTARI Hazer can be operated from a distance of up to 50 meters. Start haze emission by pressing the small button on the sending unit. Stop haze emission by pressing the large button. -
Page 9: Dmx Setting
250 – 255 = Maximum Volume Output ( 100%) The HZ-400 has onboard DMX control. It uses 1 channel to control volume output operation. Each channel has a value range of 0 to 255. Timer functions such as duration and interval can be programmed using the DMX controller or the DMX control software being used by lighting and effects operator. -
Page 10: Maintenance
Maintenance The HZ-400 hazer requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Please clean internal components once a year with a light brush and vacuum cleaner. Do not use alcohol or solvents. -
Page 11: Product Specification
Product Specification Model: Antari HZ-400 Hazer Voltage: AC 230V-50Hz (CE) Power consumption: 400W(230V) Output: 115m /min. Tank capacity : 2,5 L Dimensions 500x320x250mm (LxWxH) Weight: 17,5 kg Design and product specifications are subject to change without prior notice. - Page 12 2009 Antari.
