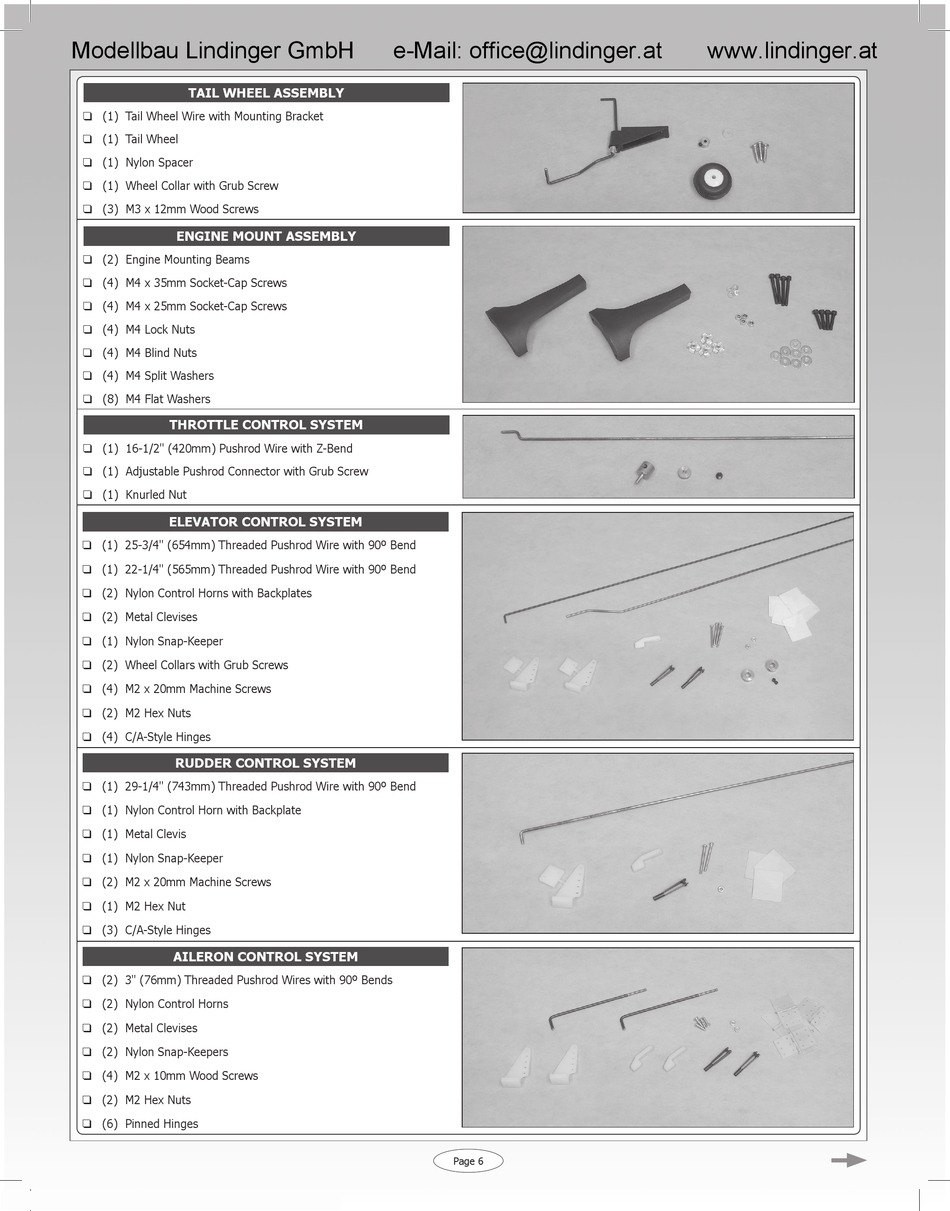

TaIl Wheel asseMbly
q (1) Tail Wheel Wire with Mounting Bracket
q (1) Tail Wheel
q (1) Nylon Spacer
q (1) Wheel Collar with Grub Screw
q (3) M3 x 12mm Wood Screws
eNgINe MouNT asseMbly
q (2) Engine Mounting Beams
q (4) M4 x 35mm Socket-Cap Screws
q (4) M4 x 25mm Socket-Cap Screws
q (4) M4 Lock Nuts
q (4) M4 Blind Nuts
q (4) M4 Split Washers
q (8) M4 Flat Washers
ThroTTle CoNTrol sysTeM
q (1) 16-1/2" (420mm) Pushrod Wire with Z-Bend
q (1) Adjustable Pushrod Connector with Grub Screw
q (1) Knurled Nut
elevaTor CoNTrol sysTeM
q (1) 25-3/4" (654mm) Threaded Pushrod Wire with 90º Bend
q (1) 22-1/4" (565mm) Threaded Pushrod Wire with 90º Bend
q (2) Nylon Control Horns with Backplates
q (2) Metal Clevises
q (1) Nylon Snap-Keeper
q (2) Wheel Collars with Grub Screws
q (4) M2 x 20mm Machine Screws
q (2) M2 Hex Nuts
q (4) C/A-Style Hinges
rudder CoNTrol sysTeM
q (1) 29-1/4" (743mm) Threaded Pushrod Wire with 90º Bend
q (1) Nylon Control Horn with Backplate
q (1) Metal Clevis
q (1) Nylon Snap-Keeper
q (2) M2 x 20mm Machine Screws
q (1) M2 Hex Nut
q (3) C/A-Style Hinges
aIleroN CoNTrol sysTeM
q (2) 3" (76mm) Threaded Pushrod Wires with 90º Bends
q (2) Nylon Control Horns
q (2) Metal Clevises
q (2) Nylon Snap-Keepers
q (4) M2 x 10mm Wood Screws
q (2) M2 Hex Nuts
q (6) Pinned Hinges
