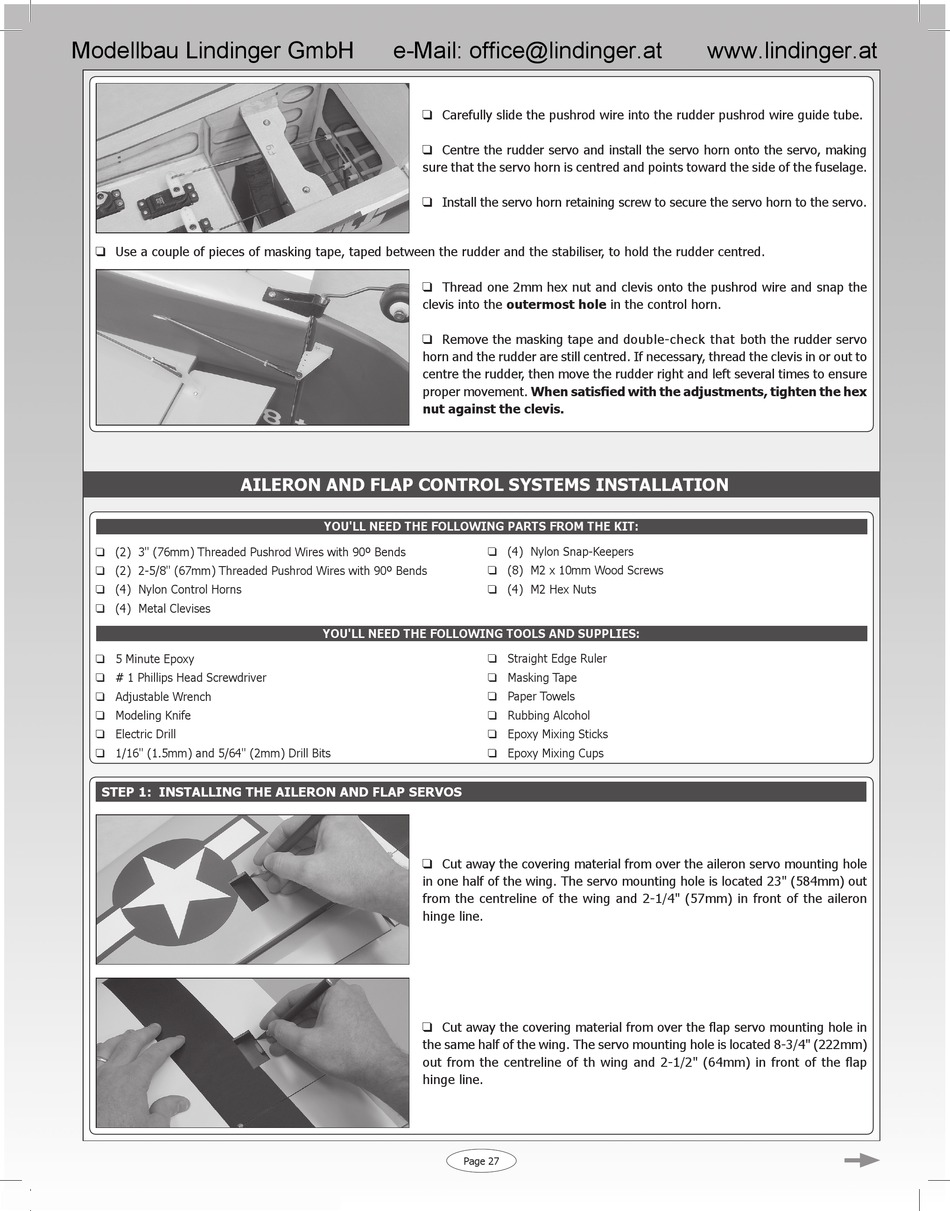

q Use a couple of pieces of masking tape, taped between the rudder and the stabiliser, to hold the rudder centred.

aIleroN aNd flap CoNTrol sysTeMs INsTallaTIoN

q (2) 3" (76mm) Threaded Pushrod Wires with 90º Bends
q (2) 2-5/8" (67mm) Threaded Pushrod Wires with 90º Bends
q (4) Nylon Control Horns
q (4) Metal Clevises
q 5 Minute Epoxy
q # 1 Phillips Head Screwdriver
q Adjustable Wrench
q Modeling Knife
q Electric Drill
q 1/16" (1.5mm) and 5/64" (2mm) Drill Bits
sTep 1: INsTallINg The aIleroN aNd flap servos
e-Mail: office@lindinger.at
q Carefully slide the pushrod wire into the rudder pushrod wire guide tube.
q Centre the rudder servo and install the servo horn onto the servo, making
sure that the servo horn is centred and points toward the side of the fuselage.
q Install the servo horn retaining screw to secure the servo horn to the servo.
q Thread one 2mm hex nut and clevis onto the pushrod wire and snap the
clevis into the outermost hole in the control horn.
q Remove the masking tape and double-check that both the rudder servo
horn and the rudder are still centred. If necessary, thread the clevis in or out to
centre the rudder, then move the rudder right and left several times to ensure
proper movement. When satisfied with the adjustments, tighten the hex
nut against the clevis.
you'll Need The folloWINg parTs froM The KIT:
q (4) Nylon Snap-Keepers
q (8) M2 x 10mm Wood Screws
q (4) M2 Hex Nuts
you'll Need The folloWINg Tools aNd supplIes:
q Straight Edge Ruler
q Masking Tape
q Paper Towels
q Rubbing Alcohol
q Epoxy Mixing Sticks
q Epoxy Mixing Cups
q Cut away the covering material from over the aileron servo mounting hole
in one half of the wing. The servo mounting hole is located 23" (584mm) out
from the centreline of the wing and 2-1/4" (57mm) in front of the aileron
hinge line.
q Cut away the covering material from over the flap servo mounting hole in
the same half of the wing. The servo mounting hole is located 8-3/4" (222mm)
out from the centreline of th wing and 2-1/2" (64mm) in front of the flap
hinge line.
