Overview

Using the graphical user interface, it is possible to provide a very effective method of accessing different sites
and cameras quickly and efficiently.
The whole system is very easy to install and can be up and running within an hour. The step by step instructions
set out in this manual will enable the installer to provide a full and effective interface with a customers existing
system, or set up a new monitoring station.
This manual does contain some restricted information and should not be left with the end user. Access to
certain configuration menus detailed in this manual should only be available to installation engineers. It is
recommended that, for security and maintenance of an efficient system, access codes which are listed within
this manual, are not given to end users.
More information is available from the Dedicated Micros Web site.
Go to
www.dedicatedmicros.co.uk

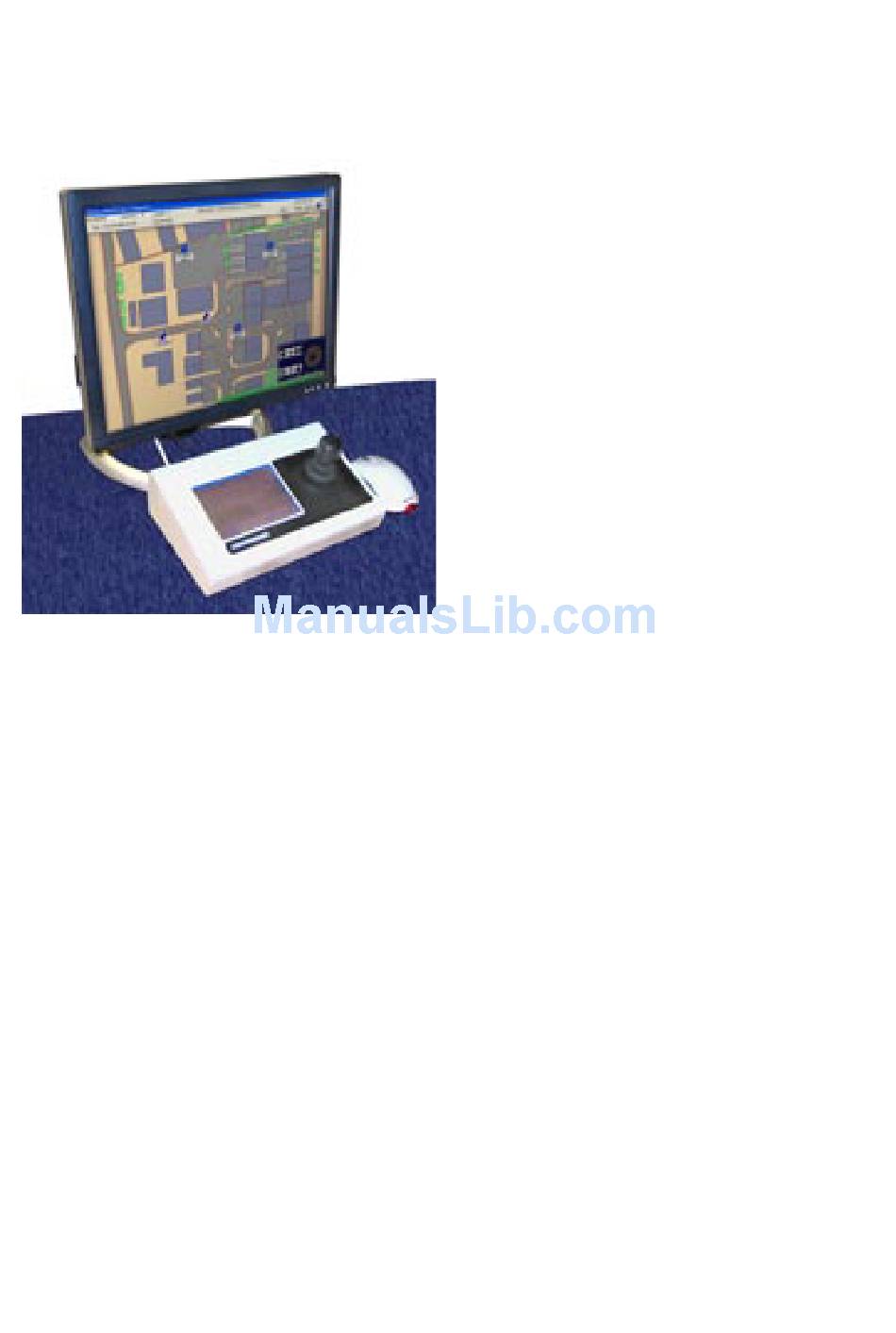

Pick-a-Point is a dedicated IP keyboard solution
with joystick control that is designed to replicate the
traditional analogue matrix, offering digital reliability
and retrieval speed. Integration with existing analogue
systems is seamless, giving the station control over all
servers, domes, DVR's and cameras.
The Pick-a-Point system interfaces with the video
servers, telling the server where to display camera
feeds on a monitor wall.
It can operate as an additional control point on an
existing Pick-a-Point system, or work standalone
to provide composite viewing and control of any
Dedicated Micros NetVu Connected Server, DVR or IP
Camera.
The system can quickly and easily be configured
to communicate with servers and cameras over an
existing network.
