WS2083 PROFESSIONAL WIRELESS
WEATHER STATION WITH USB UPLOAD
WS2083
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS2083 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aercus WS2083

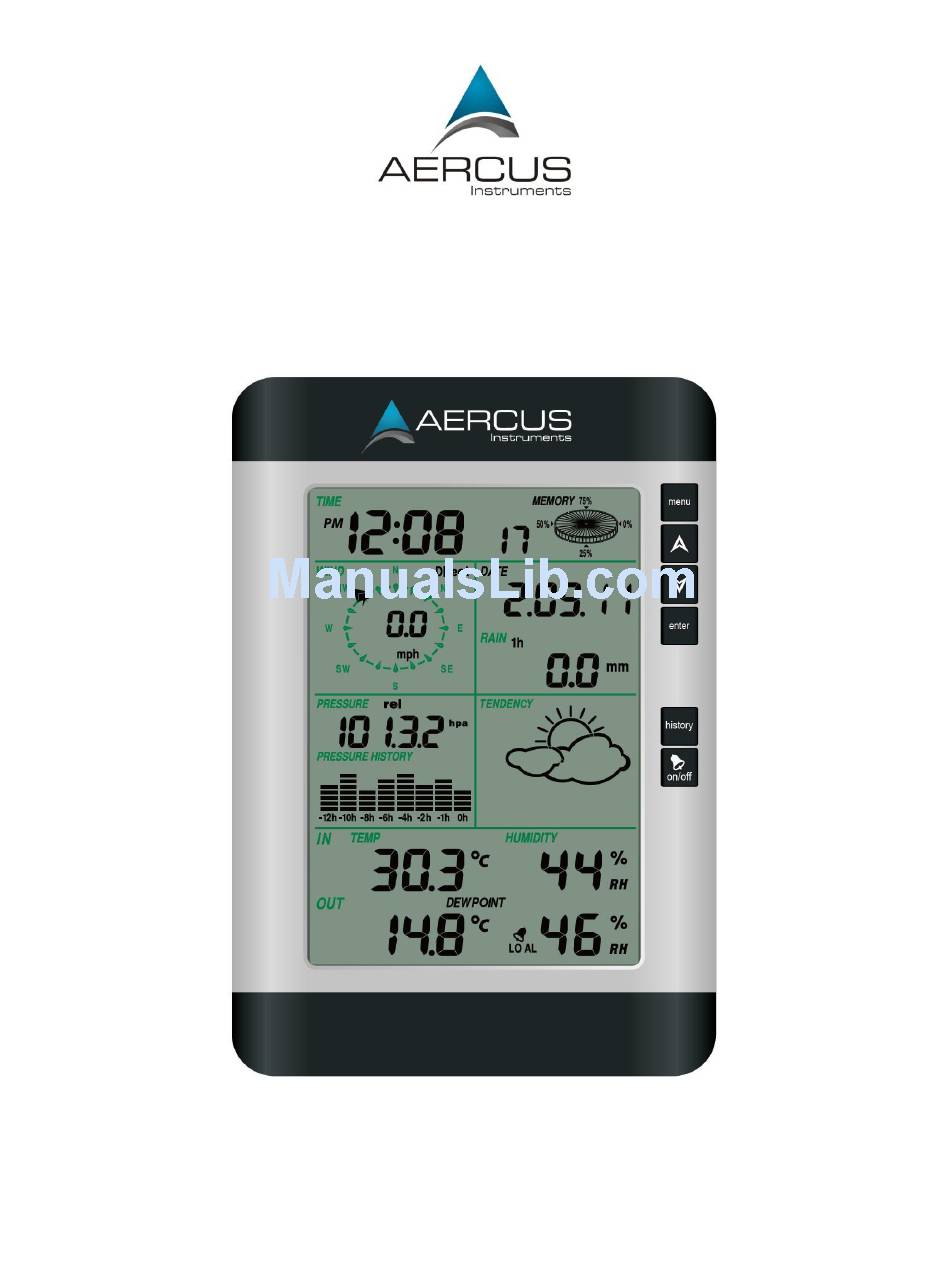

  • Page 1 WS2083 PROFESSIONAL WIRELESS WEATHER STATION WITH USB UPLOAD WS2083 - 1 -...
  • Page 2 WS2083 PROFESSIONAL WIRELESS WEATHER STATION WITH USB UPLOAD Operation Manual About This Manual Thank you and congratulations on selecting this professional weather station. We are positive you will enjoy the benefits of accurate weather readings and information that our weather stations offer. This manual will guide you step-by-step through setting up your device.
  • Page 3: Getting Started

    Getting Started The WS2083 weather station includes a base station (receiver), a transmitter unit, one wind direction sensor, one wind speed sensor, one rain gauge, one mounting tree, one USB cable and a downloadable PC software package. 1. Time 2. Wind Speed and Direction 3.
  • Page 4: Important Notes

    North, East, South and West. The wind direction sensor has to be adjusted so that the directions on the sensor are matching your real location. A permanent wind direction error will be introduced when the WS2083 - 4 -...
  • Page 5: Setup - Sensors

    10-35C. This does not necessarily indicate low batteries and will switch off once the temperature returns to this range (also see note above on the use of Alkaline batteries). Setup - Sensors WS2083 - 5 -...
  • Page 6 WS2083 - 6 -...
  • Page 7 The wind speed sensor’s cable is connected to the wind direction sensor.  The wind direction sensor’s cable is connected to the input marked Wind on the thermo-hygro sensor.  The rain sensor’s cable is connected to the input marked Rain on the thermo-hygro sensor. WS2083 - 7 -...
  • Page 8 Time Zone setting Iceland (-2 for German DST) Poland Ireland Slovakia Portugal Spain United Kingdom Sweden Albania Switzerland Austria Bulgaria Belgium Estonia Croatia Finland Denmark Greece France Latvia Germany Lithuania Hungary Moldova Italy Romania Netherlands Turkey Norway Ukraine WS2083 - 8 -...
  • Page 9 Wind speed high alarm (press ON/OFF to enable/disable). If the alarm is enabled, an alarm symbol appears in the display.  Wind direction alarm (press ON/OFF to enable/disable). If the alarm is enabled, an alarm symbol WS2083 - 9 -...
  • Page 10 Relative pressure value - if you are significantly above sea level you will need to calibrate the air pressure reading to allow for your altitude. To do so make sure you have selected Relative as above and change the pressure reading to match with a local benchmark such as the local air WS2083 - 10 -...
  • Page 11: Pressure Bar Graph

    4hPa before the weather station will register this as a change in weather. Notes on the storm threshold setting The storm threshold can be set to suit the user’s requirements for storm forecasting - anywhere from 3-9hPa WS2083 - 11 -...
  • Page 12: Indoor Temperature

    Press the MENU key ten times to select the OUTDOOR TEMPERATURE section, the OUTDOOR TEMPERATURE section digits will start flashing. Press the UP or DOWN key to change the temperature display mode between Temperature, Wind Chill and Dew Point. WS2083 - 12 -...
  • Page 13: Outdoor Humidity

    Note: Historical values for some variables are only available once downloaded to PC and will appear as dashes on the Base Station. Reset To Factory Default Settings While in normal display, press and hold the UP key for 20 seconds to reset all settings to the manufacturer’s default settings. WS2083 - 13 -...
  • Page 14 PC Connection An important feature of the WS2083 is the capability for the recorded data to be downloaded, stored and displayed on your PC. Data Storage The Base Station allows the internal storage of up to 4,080 complete sets of weather data with time and date.
  • Page 15: Troubleshooting

    In this case mount the rain gauge on a flat surface or mount a plastic plate under the rain gauge to prevent the wind entering. Insecurely mounted sensor trees can also sway in strong winds and cause false rain readings. WS2083 - 15 -...
  • Page 16: Specifications

    Genuine faults can typically be diagnosed without requiring the unit to be returned and replacement parts sent quickly if needed. For all others please contact the retailer who sold you this item. WS2083 - 16 -...
  • Page 17 EU DECLARATION OF CONFORMITY Hereby, Aercus Instruments, declares that this Wireless Weather Station (Model: WS2083) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the signed and dated Declaration of Conformity is available on request from contact@aercusinstruments.com.
