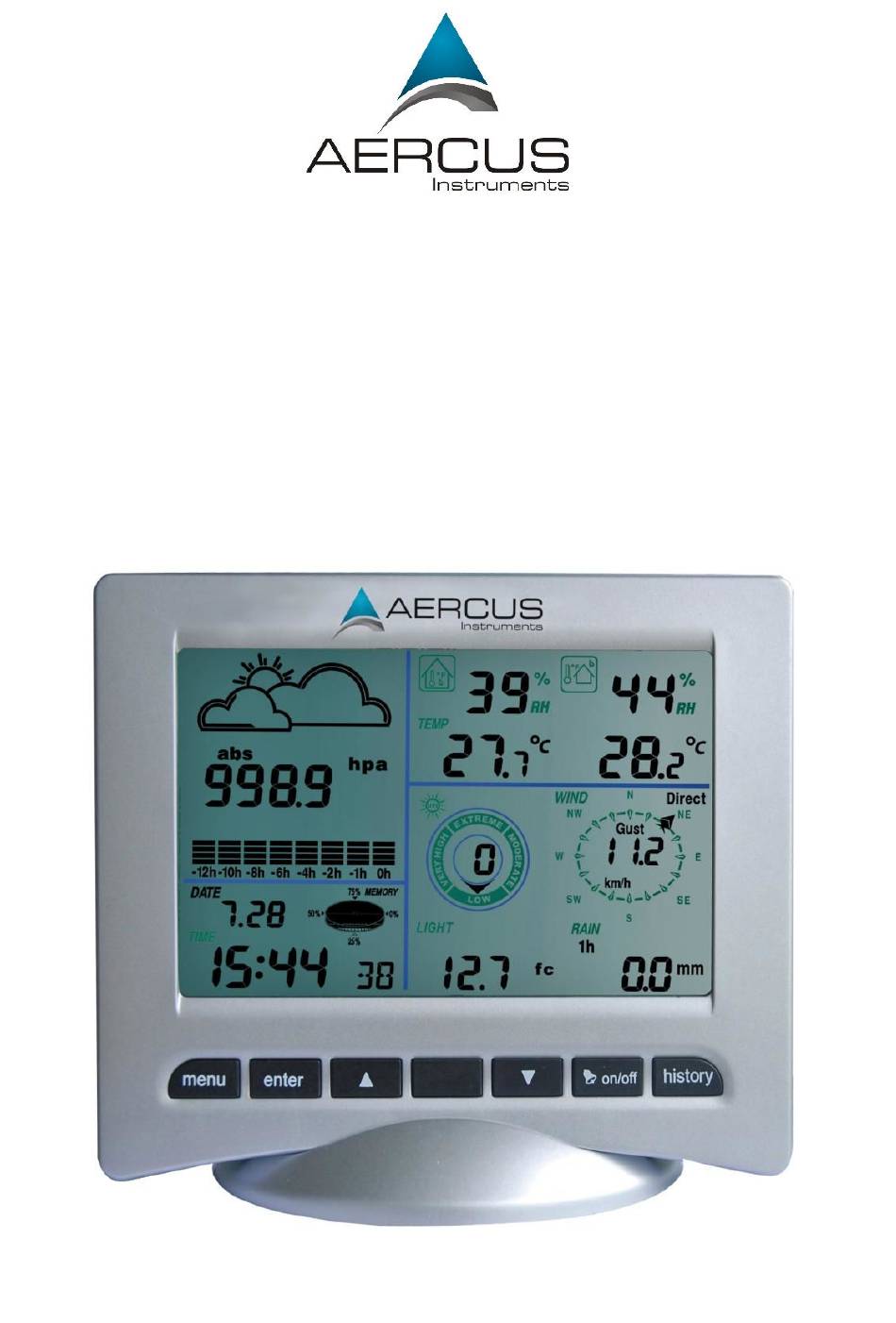

- Page 1 WS3085 PROFESSIONAL WIRELESS WEATHER STATION WITH USB DOWNLOAD, UV INDEX & LIGHT METER...
- Page 2 WS3085 PROFESSIONAL WIRELESS WEATHER STATION WITH USB DOWNLOAD, UV INDEX & LIGHT METER Mode d'emploi en français Téléchargez ce manuel d'instructions en français sur aercusinstruments.com/manuals/ Manuale Operativo in italiano Scarica questo manuale di istruzioni in italiano da aercusinstruments.com/manuals/ Operation Manual About This Manual Thank you and congratulations on selecting this professional weather station.
- Page 3 Genuine faults can typically be diagnosed without requiring the unit to be returned and replacement parts sent quickly if needed. For all others, please contact the seller who sold you this item. Aercus Instruments™ - WS3085 P a g e...
-
Page 4: Getting Started

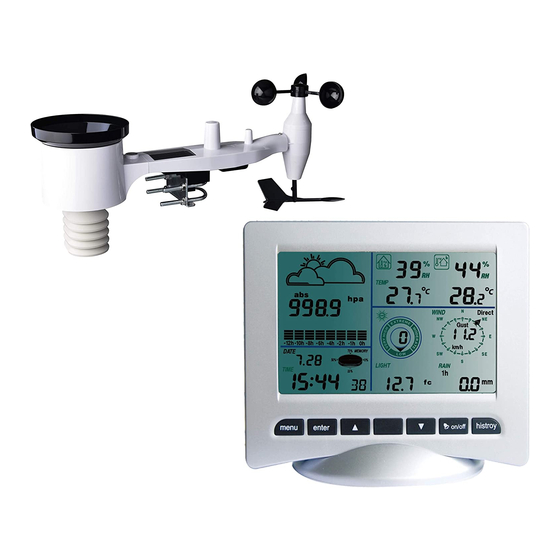

Getting Started The WS3085 Professional Wireless Weather Station includes a base station (receiver), a transmitter unit which includes solar panel and light sensors, one wind direction sensor, one wind speed sensor, one rain gauge, one USB cable and downloadable software. -
Page 5: Important Notes
DOWN key for 4 seconds then release. After this the Base Station will make an initial measurement and start to register the transmitter (the radio reception icon will be turned on). Do not touch the Base Station before the outdoor data is Aercus Instruments™ - WS3085 P a g e... - Page 6 10-35°C. This does not necessarily indicate low batteries and will switch off once the temperature returns to this range (also see note above on the use of Alkaline batteries). Setup - Sensors Aercus Instruments™ - WS3085 P a g e...
- Page 7 4. Rain collector 10. Reset button 5. Bubble level 11. LED Indicator: light on for 4s if the unit power up. The LED will flash once every 48 seconds. 6. Solar panel 12.UV/Light sensor Aercus Instruments™ - WS3085 P a g e...
- Page 8 Loosely screw on the nuts on the ends of the U-bolts. You will tighten these later during final mounting. Final assembly is shown in Figure 4. Figure 4: U-Bolts and nuts installed Aercus Instruments™ - WS3085 P a g e...
- Page 9 Make sure the wind vane can rotate freely. The wind vane’s movement has a small amount of friction, which is helpful in providing steady wind direction measurements Aercus Instruments™ - WS3085 P a g e...
- Page 10 Insert 2xAA batteries into the battery compartment and tighten the screw of battery cover. The LED indicator on the back of the transmitter will turn on for 4 seconds and flash once every 48 seconds. Figure 7: Battery installation diagram Aercus Instruments™ - WS3085 10 | P a g e...
- Page 11 Radio interference from PC screens, radios or TV sets can, in extreme cases, entirely cut off radio communication. Please take this into consideration when choosing standing or mounting locations. Aercus Instruments™ - WS3085 11 | P a g e...
- Page 12 “WEST” indication is facing to real west direction in your location. A compass device is recommended to help adjust direction. Permanent wind direction error will be introduced when the outdoor sensor is not correctly aligned. Aercus Instruments™ - WS3085 12 | P a g e...
- Page 13 LED remains off while the RESET button is depressed, and will turn on for four seconds once you release the button. The LED should then resume as normal, flashing approximately once every 48 seconds. Aercus Instruments™ - WS3085 13 | P a g e...
- Page 14 4. Metal Barriers. Radio frequency will not pass-through metal barriers such as aluminum walls. If you have metal walls, align the remote and console through a window to get a clear line of sight. Aercus Instruments™ - WS3085 14 | P a g e...
- Page 15 For best results face the solar panel north if you reside in the southern hemisphere and south if you reside in the northern hemisphere. Aercus Instruments™ - WS3085 15 | P a g e...
- Page 16 12/24h time display (default 12h) Manual time setting (hours/minutes) Press the UP or DOWN key to set each value. Set your time zone to be your offset against UCT-1 as follows: Note: Aercus Instruments™ - WS3085 16 | P a g e...
- Page 17 120 seconds. The corresponding value, ‘HI AL” or “LO AL” and the alarm symbol will flash until the weather condition no longer meets the user’s set level. When the alarm is sounding press any key to mute the alarm. Aercus Instruments™ - WS3085 17 | P a g e...
- Page 18 Pressure high alarm (press ON/OFF to enable/disable). If the alarm is enabled, an alarm symbol appears in the display. Pressure low alarm (press ON/OFF to enable/disable). If the alarm is enabled, Aercus Instruments™ - WS3085 18 | P a g e...
-
Page 19: Weather Forecast
Notes on the pressure sensitivity setting for weather forecasting The pressure threshold can be set to suit the user’s requirements for weather forecasting - anywhere from 2-4hPa (default 2hPa). Areas that experience frequent Aercus Instruments™ - WS3085 19 | P a g e... - Page 20 3-hour period, the storm forecasting will be activated and the clouds with rain icon as well as the tendency arrows will flash for 3 hours indicating the storm warning feature has been activated. Aercus Instruments™ - WS3085 20 | P a g e...
- Page 21 Weather forecast symbols: Sunny Partly Cloudy Cloudy Rainy Snow Storm Snowstorm Clear Night Cloudy Night Aercus Instruments™ - WS3085 21 | P a g e...
-
Page 22: Indoor Humidity
Press the ENTER key to select the following modes: Indoor temperature high alarm (press ON/OFF to enable/disable). If the alarm is enabled, an alarm symbol appears in the display. Aercus Instruments™ - WS3085 22 | P a g e... -
Page 23: Outdoor Humidity
Temperature unit display °C or °F. Outdoor temperature high alarm (press ON/OFF to enable/disable). If the alarm is enabled, an alarm symbol appears in the display. Aercus Instruments™ - WS3085 23 | P a g e... - Page 24 The UV Index has a scale of 1-12 as follows: Extreme: 10, 11, 12 Very High: 7, 8, 9 High 5, 6 Moderate: 3, 4 Low: 0, 1, 2 Aercus Instruments™ - WS3085 24 | P a g e...
- Page 25 value - when both the wind speed value and MAX icon are flashing, hold the ENTER key for 3s, the maximum value will be reset to the current reading. Aercus Instruments™ - WS3085 25 | P a g e...
- Page 26 Rainfall units - select between mm and inch. Rain high alarm (press ON/OFF to enable/disable). If the alarm is enabled, an alarm symbol appears in the display. Aercus Instruments™ - WS3085 26 | P a g e...
-
Page 27: Reset To Factory Default Settings
Base Station. Reset to Factory Default Settings While in normal display, press and hold the UP key for 20 seconds to reset all settings to the default settings. Aercus Instruments™ - WS3085 27 | P a g e... - Page 28 PC Connection An important feature of the WS3085 is the capability for the recorded data to be downloaded, stored, and displayed on your PC. Data Storage The Base Station allows the internal storage of up to 3,264 complete sets of weather data with time and date.
-
Page 29: Troubleshooting
If this does not help, please attempt a factory default reset on the console, using holding down the up arrow for 20-40 seconds. If none of these are causing the problem, please contact your local distributor. Aercus Instruments™ - WS3085 29 | P a g e... - Page 30 My rain Insecurely mounted sensor trees can also sway in strong winds and gauge is cause false rain readings. over reporting rainfall. Aercus Instruments™ - WS3085 30 | P a g e...
-
Page 31: Specifications
Measuring range rel. humidity: 10% to 99% Resolution: Measuring range air pressure: 300-1,100hPa (8.85-32.5inHg) Resolution: 0.1hPa Alarm duration: 120 sec Power consumption Base station 3xAA 1.5V batteries Remote sensor: 2xAA 1.5V batteries Aercus Instruments™ - WS3085 31 | P a g e... -
Page 32: Contact Information
This handbook may contain mistakes and printing errors. The information in this handbook is regularly checked and corrections made in the next issue. We accept no liability for technical mistakes or printing errors - or their consequences. Aercus Instruments™ - WS3085 32 | P a g e... - Page 33 All EU countries DECLARATION DE CONFORMITE UE Par la présente, Aercus Instruments, déclare que cette station météo sans fil (Modèle : WS3085) est conforme aux exigences essentielles et autres dispositions pertinentes de la Directive 1999/5/CE. Une copie de la Déclaration de conformité datée et signée est disponible sur simple demande auprès de contact@aercusinstruments.com.
- Page 34 DICHIARAZIONE DI CONFORMITÀ UE Con la presente, Aercus Instruments dichiara che questa Stazione Meteorologica Wireless (modello: WS3085) è conforme ai requisiti essenziali e alle altre disposizioni pertinenti della Direttiva 1999/5 / CE. Una copia della Dichiarazione di Conformità, firmata e datata, è disponibile su richiesta all'indirizzo contact@aercusinstruments.com.
