Summary of Contents for Aercus WeatherSpy

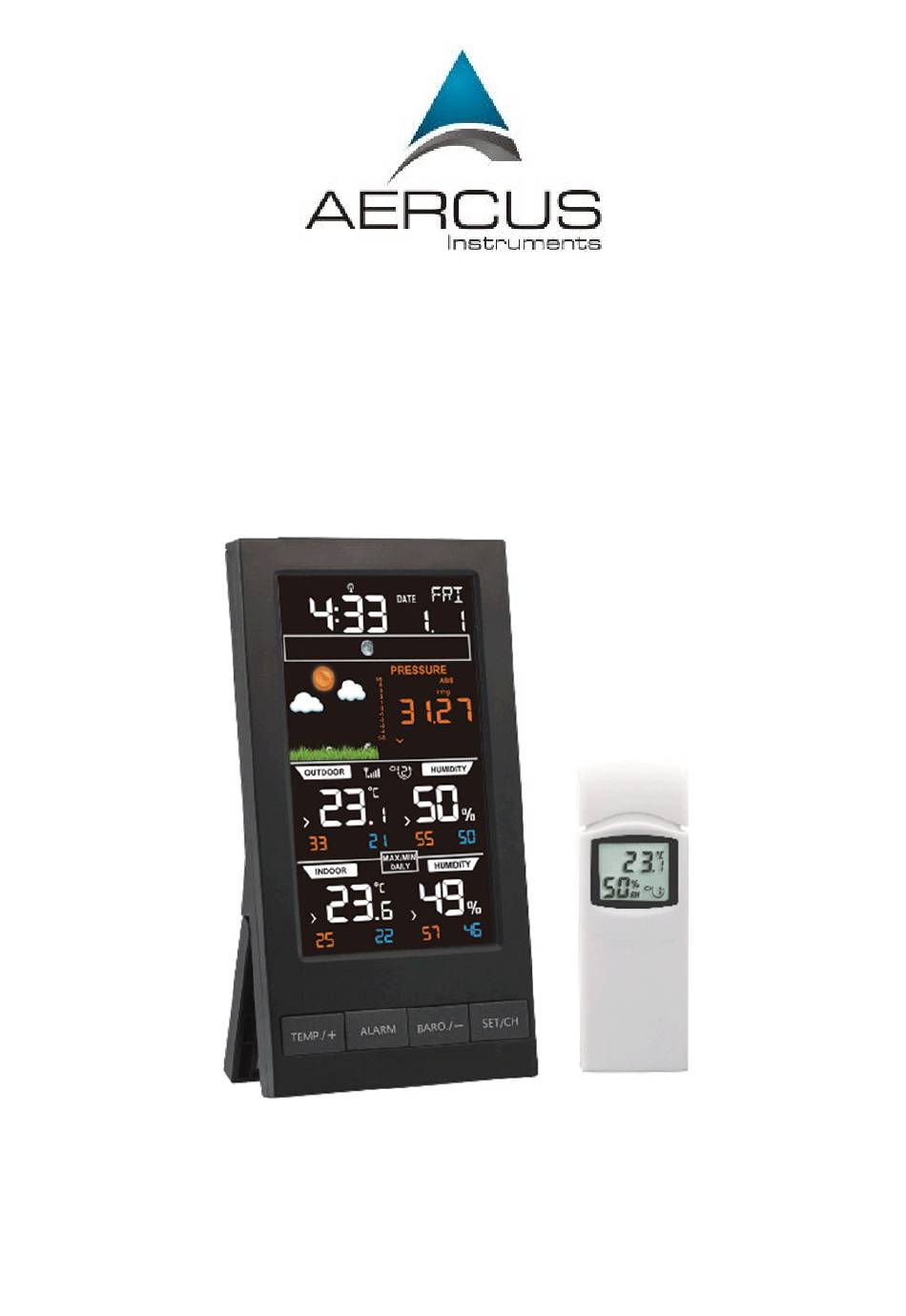

- Page 1 WN2810 WeatherSpy Multi-Channel Desktop Weather Station...
-
Page 2: Table Of Contents
Display Console Set Up ......14 Display Console Layout......16 Console Operation ..........18 Setup Mode ........... 18 4.1.2 Setup Mode Operation ....21 Changing Remote Sensor Channels ..24 Barometric Pressure ......24 Aercus Instruments™ - WeatherSpy P a g e... - Page 3 Moon phase ......34 4.8.3 Temperature/Humidity Trends . 35 4.8.4 Pressure Tendency Arrows ..36 4.8.5 Restoring Lost Connections ..36 Glossary of Terms ..........37 Specifications ............39 Contact Information ........... 41 Aercus Instruments™ - WeatherSpy P a g e...
-
Page 4: Introduction
Manuale Operativo in italiano Scarica questo manuale di istruzioni in italiano da aercusinstruments.com/manuals/ This instruction manual Thanks for purchasing this WN2810 WeatherSpy multi-channel weather. This device measures temperature, humidity, barometric pressure and displays moon phase and a weather tendency forecast. This device can receive signals up to three temperature/humidity sensors. -
Page 5: Product Features
2 Product Features Figure 1 1) Perpetual calendar 2) Time alarm with snooze 3) Moon phase 4) Weather forecast 5) Barometric pressure (inHg, mmHg or hPa) Aercus Instruments™ - WeatherSpy P a g e... -
Page 6: Getting Started
14) Synchronized instant reception 3 Getting started Please set apply power to the devices in the order described here – transmitters followed by console/receiver. Parts list One Display Console One Thermo/Hygro Sensor Unit Aercus Instruments™ - WeatherSpy P a g e... -
Page 7: Console
One Power Adaptor One Manual 3.1.1 Console LIGHT/SNOOZE Key Hanging hole Power jack Folding bracket Figure 2 Aercus Instruments™ - WeatherSpy P a g e... -
Page 8: Remote Sensor
(the unit could be permanently damaged incorrect insertion). Do not use rechargeable batteries. We recommend fresh alkaline batteries for miler outdoor temperature ranges and fresh lithium batteries for colder outdoor temperatures. Aercus Instruments™ - WeatherSpy P a g e... - Page 9 Place the transmitter about 2 to 3m away from the console. With multiple transmitters, make sure all transmitters are powered up. Remove the battery door on the back of the thermo-hygrometer sensor by sliding down the battery door. Figure 4 Aercus Instruments™ - WeatherSpy P a g e...
- Page 10 BEFORE inserting the batteries, locate the switches on the inside cover of the lid of the transmitter (see figure 4). Channel Number: the WeatherSpy supports up to three sensors. Choose a channel number for each transmitter by, sliding the button.
- Page 11 (2) Temperature units (°C and °F) (3) Channel number (4) Relative humidity Close the battery door. 10. Repeat for each additional remote sensor, verifying each remote is on a different channel. Aercus Instruments™ - WeatherSpy 11 | P a g e...
-
Page 12: Sensor Operation Verification
During this period, lasting up to five minutes, no weather data will be transmitted to avoid interference. Once received successfully, the RCC reception icon will show on the outdoor sensor LCD display. Aercus Instruments™ - WeatherSpy 12 | P a g e... -
Page 13: Remote Sensor Installation
Use a screw or nail to affix the remote sensor to the wall, as shown in Figure 6 or hang the remote sensor up on string, as shown in Figure 7. Aercus Instruments™ - WeatherSpy 13 | P a g e... -
Page 14: Display Console Set Up
The LCD display will beep once and then light up. The brightness selection is set to high when plugged into the adapter. Press the LIGHT/SNOOZE key can adjust Aercus Instruments™ - WeatherSpy 14 | P a g e... - Page 15 4. The console will instantly display indoor temperature, humidity, barometer, moon phase, date, and time. The remote search icon will turn on: Aercus Instruments™ - WeatherSpy 15 | P a g e...
-
Page 16: Display Console Layout
Display Console Layout Note: The following illustration shows the full segments of the LCD for description purposes only and will not appear like this during normal operation. Figure 8 Aercus Instruments™ - WeatherSpy 16 | P a g e... - Page 17 8. Outdoor sensor signal 19. Indoor humidity 9. Outdoor temperature 20. Min indoor humidity 10. Max outdoor 21. Max indoor humidity temperature 11. Min outdoor 22. MAX/MIN DAILY icon temperature Aercus Instruments™ - WeatherSpy 17 | P a g e...
-
Page 18: Console Operation
To enter Setup Mode, hold the SET/CH key for 2 seconds. You can then cycle through the setup options by pressing the SET/CH button multiple times, in the following order: Aercus Instruments™ - WeatherSpy 18 | P a g e... - Page 19 Press TEMP./+ or BARO./- to toggle between 12-hour (12h) and 24-hour (24h) format Press TEMP./+ to Hour of Day increase. BARO./- to decrease Press TEMP./+ to Minutes increase. BARO./- to decrease Aercus Instruments™ - WeatherSpy 19 | P a g e...
- Page 20 BARO./- to decrease Press TEMP./+ to Temperature Units of Measure toggle between °C and °F Barometric Pressure Press TEMP./+ to Units of Measure toggle between inHg, mmHg and hPa Aercus Instruments™ - WeatherSpy 20 | P a g e...
-
Page 21: Setup Mode Operation
MAX/MIN record at 0:00 every day, which is default turned on. Press TEMP./+ key to toggle between RST ON and RST OFF. Time Zone Settings. Press the SET/CH key again to adjust the Time Zone (TZ) setting. Aercus Instruments™ - WeatherSpy 21 | P a g e... - Page 22 Press the TEMP./+ key or BARO./- key to adjust the calendar year. Set Month. Press the SET/CH key again to set the calendar month. Press the TEMP./+ key or Aercus Instruments™ - WeatherSpy 22 | P a g e...
- Page 23 TEMP./+ key or BARO./- key for 3 seconds to increase/decrease rapidly. Note: Press the LIGHT/SNOOZE key (or wait 30 seconds for the programming mode to timeout), and the Set Mode will return to Normal Mode. Aercus Instruments™ - WeatherSpy 23 | P a g e...
-
Page 24: Changing Remote Sensor Channels
We recommend viewing your pressure data in Relative mode and calibrating your device to a local trusted source such an airport or official weather station if available, or internet source otherwise. Aercus Instruments™ - WeatherSpy 24 | P a g e... -
Page 25: Relative Vs. Absolute Pressure
Standard sea-level pressure is 1013hPa/29.92inHg. This is the average sea-level pressure around the world. Relative pressure measurements greater than 1013hPa are considered high pressure and relative pressure measurements less than 1013hPa are considered low pressure. Aercus Instruments™ - WeatherSpy 25 | P a g e... -
Page 26: Dew Point
Press and hold the ALARM button for 2 seconds, you will enter Alarm Setting mode. Please follow the below sequence to operate settings: 1. Press the TEMP./+ and BARO/- button to change the hour. Aercus Instruments™ - WeatherSpy 26 | P a g e... -
Page 27: Low Temperature Alarm
The LO temperature icon will appear and flash on the console. If Beep is switched on, an audible alarm will also be activated. Aercus Instruments™ - WeatherSpy 27 | P a g e... -
Page 28: Cancelling An Alarm
Note: the SET mode will appear after three seconds. Continue holding the two keys until you see the CAL icon appear in the upper right-hand corner of the display. The calibration sequence is as below: Aercus Instruments™ - WeatherSpy 28 | P a g e... - Page 29 30.0 °C The uncalibrated or measured temperature is 28.7 °C. Offset = Calibrated Temperature – Uncalibrated Temperature = 30.0 – 28.7 = 1.3 °C. Enter the temperature offset +1.3 -2.6hPa. Aercus Instruments™ - WeatherSpy 29 | P a g e...
- Page 30 Section 4.3.2. During calibration mode, press LIGHT/SNOOZE to exit calibration mode. The calibration offsets can be adjusted in the ranges below: Aercus Instruments™ - WeatherSpy 30 | P a g e...
-
Page 31: Max/Min Mode
All MAX/MIN records of all sensors can be cleared if you press and hold the TEMP button for 2 seconds. MAX/MIN records are cleared on 0:00 every day by default. When set, the MAX/MIN DAILY icon (shown Aercus Instruments™ - WeatherSpy 31 | P a g e... -
Page 32: Other Console Features
Note: Snowy icon will appear in place of rainy and stormy icons when the outdoor temperature is below 0 °C /32°F. Aercus Instruments™ - WeatherSpy 32 | P a g e... - Page 33 Sunny Partly Cloudy Cloudy Rainy Stormy Snowy Aercus Instruments™ - WeatherSpy 33 | P a g e...
-
Page 34: Moon Phase
Waxing First Waxing Full Crescent Quarter Gibbous Waning Third Waning Gibbous Quarter Note: Above icons are for Northern Hemisphere areas. For Southern Hemisphere, the icons are as below: Aercus Instruments™ - WeatherSpy 34 | P a g e... -
Page 35: Temperature/Humidity Trends
The temperature and humidity trend indicators update every 30 minutes. The trend reflects changes over the past 3 hours. For example: 6:00 is compared with 3:00 data and 6:30 is compared with 3:30. Aercus Instruments™ - WeatherSpy 35 | P a g e... -
Page 36: Pressure Tendency Arrows
Pressure is Pressure is Pressure is rising, weather unchanged falling, weather expected to expected to improve worsen 4.8.5 Restoring Lost Connections signal lost between remote sensor/transmitter and the display console/receiver you Aercus Instruments™ - WeatherSpy 36 | P a g e... -
Page 37: Glossary Of Terms
Because pressure decreases as you rise in altitude, the sea-level corrected pressure (the pressure your location would be at if located at sea-level) is generally higher than your measured pressure. Aercus Instruments™ - WeatherSpy 37 | P a g e... - Page 38 1 inch of mercury = 33.86 millibars (inHg) Range Range is defined as the amount or extent a value can be measured. Relative Measured barometric pressure relative Pressure to your location or ambient conditions. Aercus Instruments™ - WeatherSpy 38 | P a g e...
-
Page 39: Specifications
Humidity resolution: 1% Humidity accuracy: ± 5% (between 20% and 90%) Pressure range: 300hpa to 1100hpa Pressure resolution: -.1hPa Pressure accuracy: ±3 hPa (between 700 and 1100hPa) Sensor reporting interval: 48 seconds Aercus Instruments™ - WeatherSpy 39 | P a g e... - Page 40 We accept no liability for technical mistakes or printing errors - or their consequences. Manual version: 2021/1.1 Aercus Instruments™ - WeatherSpy 40 | P a g e...
-
Page 41: Contact Information
Purchased in NEW ZEALAND: Please contact our local distributor Scientific Sales scientificsales.co.nz and their team will be happy to help. For all others, please contact the retailer who sold you this item. Aercus Instruments™ - WeatherSpy 41 | P a g e... - Page 42 APPROVAL COMPLIED All EU countries DECLARATION DE CONFORMITE UE Par la présente, Aercus Instruments, déclare que cette station météo sans fil (Modèle : WH31) est conforme aux exigences essentielles et autres dispositions pertinentes de la Directive 1999/5/CE. Une copie de la Déclaration de conformité datée et signée est disponible sur simple demande auprès de contact@aercusinstruments.com.
- Page 43 DICHIARAZIONE DI CONFORMITÀ UE Con la presente, Aercus Instruments dichiara che questa Stazione Meteorologica Wireless (modello: WH31) è conforme ai requisiti essenziali e alle altre disposizioni pertinenti della Direttiva 1999/5 / CE. Una copia della Dichiarazione di Conformità, firmata e datata, è...
