Summary of Contents for Aercus WS2073

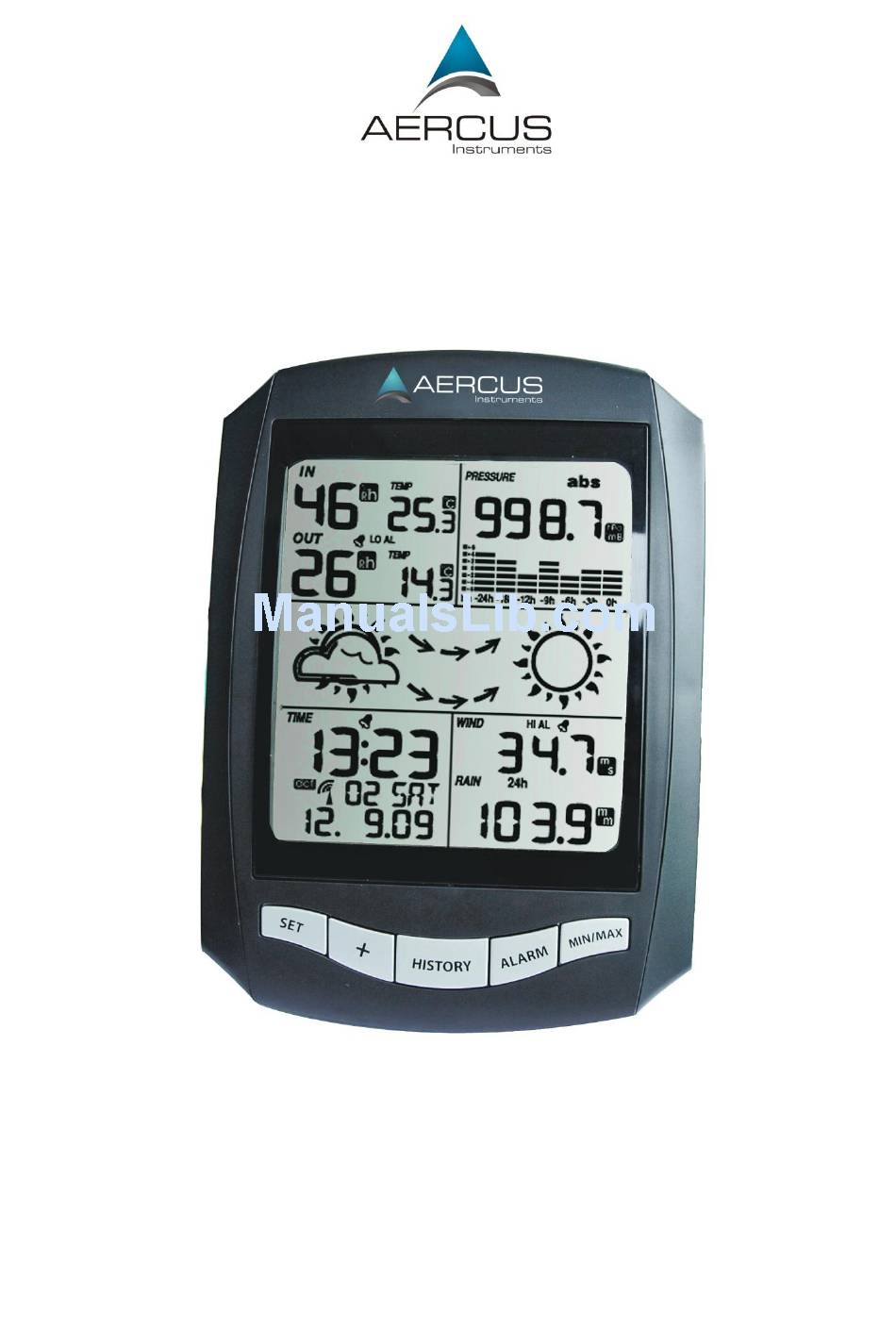

- Page 1 PROFESSIONAL WIRELESS WEATHER STATION INSTRUCTION MANUAL WS2073...
- Page 2 WS2073 PROFESSIONAL WIRELESS WEATHER STATION Important! Warranty and Support We warrant our products to be free of defects in components and workmanship, under normal use and service, for one year from the date of original purchase. For product support and warranty claims please contact the following: ...
-
Page 3: Table Of Contents
Page 1. Introduction………………………………………………………………... 4 2. Inventory of contents…………………………………………..………..4 Base station features………………………….………………....4 Wind sensor features………………………………………….….……..4 Rain sensor features………………………………………….….….…..4 3. Set up guide………………………………………………………………... 5 3.1 Battery installation………………………………………………… ….. 5 3.2 Mounting…………………………………………………….………..6 4. LCD overview……………………………………………………………..7 4.1 LCD overview…………………………………………………………... -
Page 4: Introduction
1. Introduction Thank you and congratulations on selecting this professional weather station. We are positive you will enjoy the benefits of accurate weather readings and information that our weather stations offer. This manual will guide you step-by-step through setting up your device. Use this manual to become familiar with your professional weather station and save it for future reference. -
Page 5: Set Up Guide
3. Set up Guide 3.1 Battery installation: Thermo-hygro Sensor LED Indicator Sensor Sockets Battery Battery cover Compartment Note: To avoid operating problems, please take note of the battery polarity before/when inserting any Alkaline batteries (permanent damage could be introduced by inserting the batteries in the wrong direction). -
Page 6: Mounting
temperature signal, you will need to follow the battery installation procedure again. To perform a proper reset wait a minimum of 10 seconds after removing the batteries before re-inserting for both the transmitter and receiver. Note: If the batteries are changed on the transmitter, the base station will resynchronise with the transmitter within the following 3 hours. -
Page 7: Lcd Overview
c) Mounting the thermo-hygro sensor d) Fix the whole set to a pole with the two adjustable hoops. Once the wind sensor and rain sensor are fixed onto the mast, connect the cable to the corresponding thermo-hygro sensor socket. 4. LCD overview 4.1 LCD overview The following illustration shows the full display of the LCD for description purposes only, the LCD will not appear like this during normal operation and use. -
Page 8: Lcd Overview
1. Indoor temperature and humidity low alarm and 15. Radio controlled time version DCF high alarm 16. Radio controlled time receipt icon 2. Temperature display units (C or F) 17. Date 3. General indoor alarm icon 18. Rain display 4. Indoor humidity display 19. -
Page 9: Weather Forecasting
4.2 Weather forecasting Sunny Partly Cloudy Cloudy Rainy The four weather icons Sunny, Partly Cloudy, Cloudy and Rainy represent the short range (12-24 hours) weather forecast. The weather station uses air pressure patterns to predict the most likely upcoming weather, which can be quite different to the weather conditions you are experiencing at the time (i.e. -
Page 10: Quick Display Mode
HISTORY key, or waiting for the 30-second time-out to take effect. 5.1 Quick Display Mode While in Normal Mode, press the SET key to enter the Quick Display Mode: 1. Outdoor Temperature / Wind Chill / Dew Point (press the + key or MIN/MAX key to shift the display between outdoor temperature, wind chill and dew point). -
Page 11: History Mode
Country Time Zone Country Time Zone setting setting Iceland (-2 for German DST) Poland Ireland Slovakia Portugal Spain United Kingdom Sweden Albania Switzerland Austria Bulgaria Belgium Estonia Croatia Finland Denmark Greece France Latvia Germany Lithuania Hungary Moldova Italy Romania Netherlands Turkey Norway Ukraine... -
Page 12: Min/Max Mode
3. Indoor temperature low alarm 4. Outdoor humidity low alarm 5. Outdoor temperature low alarm 6. Wind chill low alarm 7. Dew point low alarm 8. Pressure low alarm For each alarm press the + key to change or scroll the value upward, press the MIN/MAX key to change or scroll the alarm value downward. - Page 13 1. Indoor humidity maximum 2. Indoor temperature maximum 3. Outdoor humidity maximum 4. Outdoor temperature maximum 5. Wind chill temperature maximum 6. Dew point temperature maximum 7. Pressure maximum 8. Wind speed maximum 9. Gust speed maximum 10. 1 hour rain maximum 11.
-
Page 14: Troubleshooting
6. Trouble Shooting Problem Solution I am not receiving any outside data. Check that batteries in both units are fresh and fully charged. Alkaline batteries slow down and freeze in colder temperatures which leads to signal dropouts so we recommend Lithium batteries in colder climates. Also avoid rechargeable batteries as many are 1.2V (standard 1.5V required) and they also leak their peak charge quickly even if they are 1.5V. -
Page 15: Specification
7. Specifications Outdoor data Transmission distance in open field 100 meters max. Frequency 433 MHz Temperature range -30℃ to +65℃ (show OFL if outside range) Resolution 0.1℃ Measuring range rel. humidity 1%～99% Rain volume display 0 - 9999mm (show OFL if outside range) Resolution 0.3mm (if rain volume <... - Page 16 EU DECLARATION OF CONFORMITY Hereby, Aercus Instruments, declares that this Wireless Weather Station (Model: WS2073) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the signed and dated Declaration of Conformity is available on request from contact@aercusinstruments.com.
