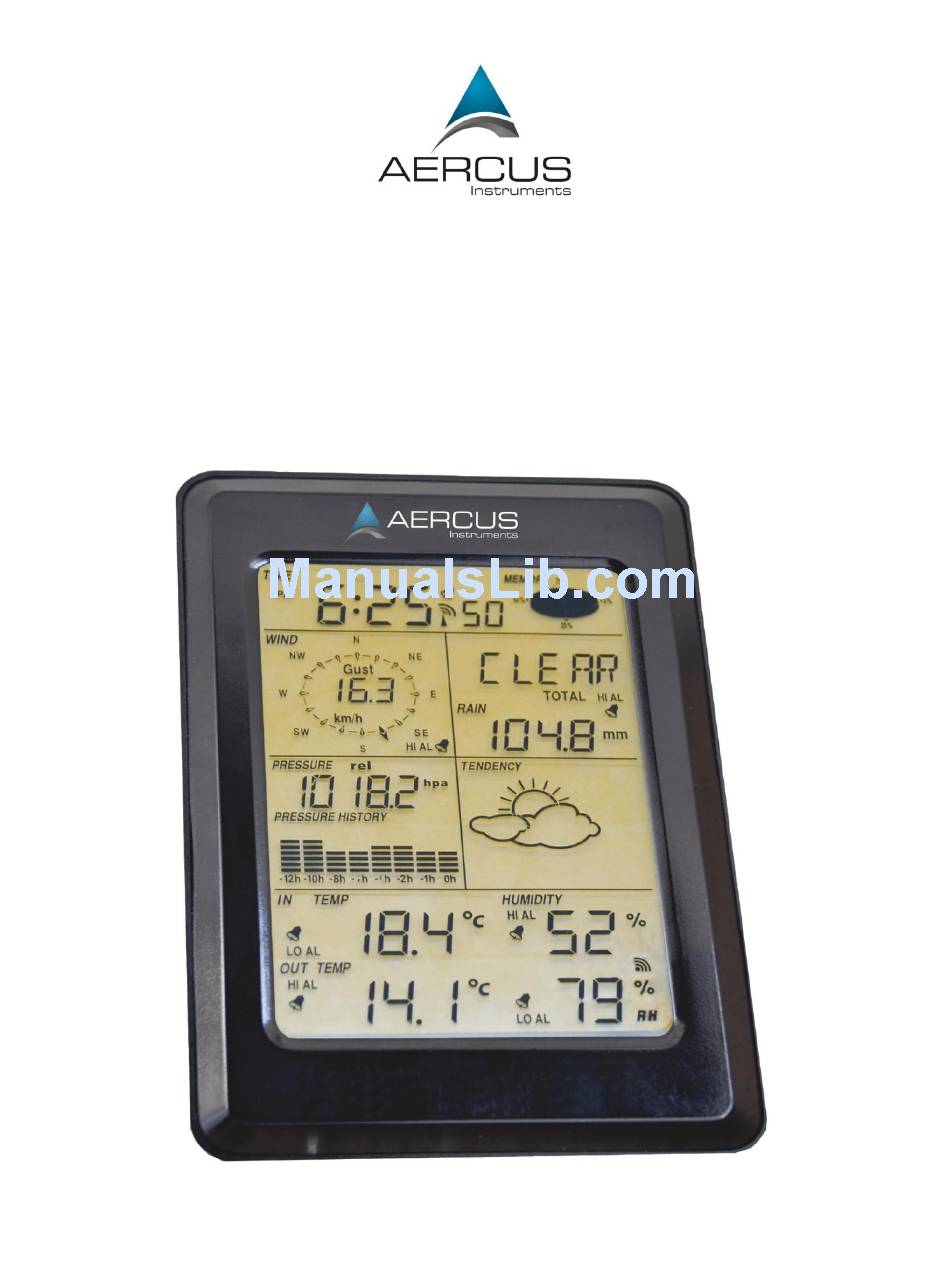

- Page 1 WS1093 PROFESSIONAL WIRELESS WEATHER STATION WITH TOUCHSCREEN AND USB UPLOAD - 1 - WS1093...
- Page 2 WS1093 PROFESSIONAL WIRELESS WEATHER STATION WITH TOUCHSCREEN AND USB UPLOAD Operation Manual Thank you and congratulations on selecting this professional weather station. We are positive you will enjoy the benefits of accurate weather readings and information that our weather stations offer. This manual will guide you step-by-step through setting up your device.
-
Page 3: Getting Started
Getting Started The WS1093 touch screen weather station includes a base station (receiver), a transmitter unit, one wind direction sensor, one wind speed sensor, one rain gauge, one mounting tree, one USB cable and a downloadable PC software package. The Base Station is equipped with a Touch Screen LCD Monitor and allows the display of a large variety of time and weather data: ... -
Page 4: Important Notes
100m providing that there are no interfering obstacles such as buildings, trees, vehicles, high voltage lines, etc. Radio interferences such as PC screens, radios or TV sets, can in bad cases entirely cut off radio communication. Please take this into consideration when choosing standing or mounting locations. - 4 - WS1093... - Page 5 10-35C. This does not necessarily indicate low batteries and will switch off once the temperature returns to this range (also see note above on the use of Alkaline batteries). - 5 - WS1093...
-
Page 6: Setup - Sensors
Setup - Sensors - 6 - WS1093... - Page 7 - 7 - WS1093...
- Page 8 The wind speed sensor’s cable is connected to the wind direction sensor. The wind direction sensor’s cable is connected to the input marked Wind on the thermo-hygro sensor. The rain sensor’s cable is connected to the input marked Rain on the thermo-hygro sensor. - 8 - WS1093...
- Page 9 Note: Because of the default settings already determined by the manufacturer it may not be necessary for the majority of users to perform any further basic settings - except for the Relative Air Pressure (see below). Changes, however, can be easily made. - 9 - WS1093...
-
Page 10: Wind Speed
5) Touch the WIND SPEED section a fifth time to display the maximum wind speed record, the recorded maximum value will be flashing, the MAX icon will light up. If you hold the maximum value for 3 seconds the maximum value will be reset to the current reading. - 10 - WS1093... - Page 11 3) Touch the rain section a third time to set the high alarm function, the +, ON/OFF and – buttons will be flashing, the HI AL icon will light up. Touch the + button or – button to change the value, hold the - 11 - WS1093...
- Page 12 MIN icon will light up. By pressing the minimum value for 3 seconds the minimum value will be reset to the current reading. Note: when absolute pressure is selected, step 3 will be skipped since absolute pressure is selected for display. - 12 - WS1093...
-
Page 13: Pressure Bar Graph
3-9hPa (default 4hPa). When there is a fall below the pressure threshold within any given 3 hour period, the storm forecasting will be activated and the clouds with rain icon as well as the tendency arrows will flash for 3 hours indicating the storm warning feature has been activated. - 13 - WS1093... -
Page 14: Indoor Temperature
Touch the ON/OFF button to turn the alarm on or off (the alarm icon will be turned on indicating the alarm function has been activated). 4) Touch the OUTDOOR TEMPERATURE section a fourth time to set the outdoor temperature low alarm - 14 - WS1093... -
Page 15: Indoor Humidity
MIN icon will light up. By pressing the minimum value for 3 seconds the minimum value will be reset to the current reading. Outdoor Humidity Procedures and settings are similar to Indoor humidity - 15 - WS1093... - Page 16 PC Connection An important feature of the WS1093 is the capability for the recorded data to be downloaded, stored and displayed on your PC. Data Storage The Base Station allows the internal storage of up to 4,080 complete sets of weather data with time and date.
-
Page 17: Troubleshooting
In this case mount the rain gauge on a flat surface or mount a plastic plate under the rain gauge to prevent the wind entering. Insecurely mounted sensor trees can also sway in strong winds and cause false rain readings. - 17 - WS1093... -
Page 18: Specifications
Genuine faults can typically be diagnosed without requiring the unit to be returned and replacement parts sent quickly if needed. For all others please contact the retailer who sold you this item. - 18 - WS1093... - Page 19 EU DECLARATION OF CONFORMITY Hereby, Aercus Instruments, declares that this Wireless Weather Station (Model: WS1093) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy signed dated Declaration Conformity available request from contact@aercusinstruments.com. COUNTRIES RTTE APPROVAL COMPLIED All EU countries This handbook may contain mistakes and printing errors.
