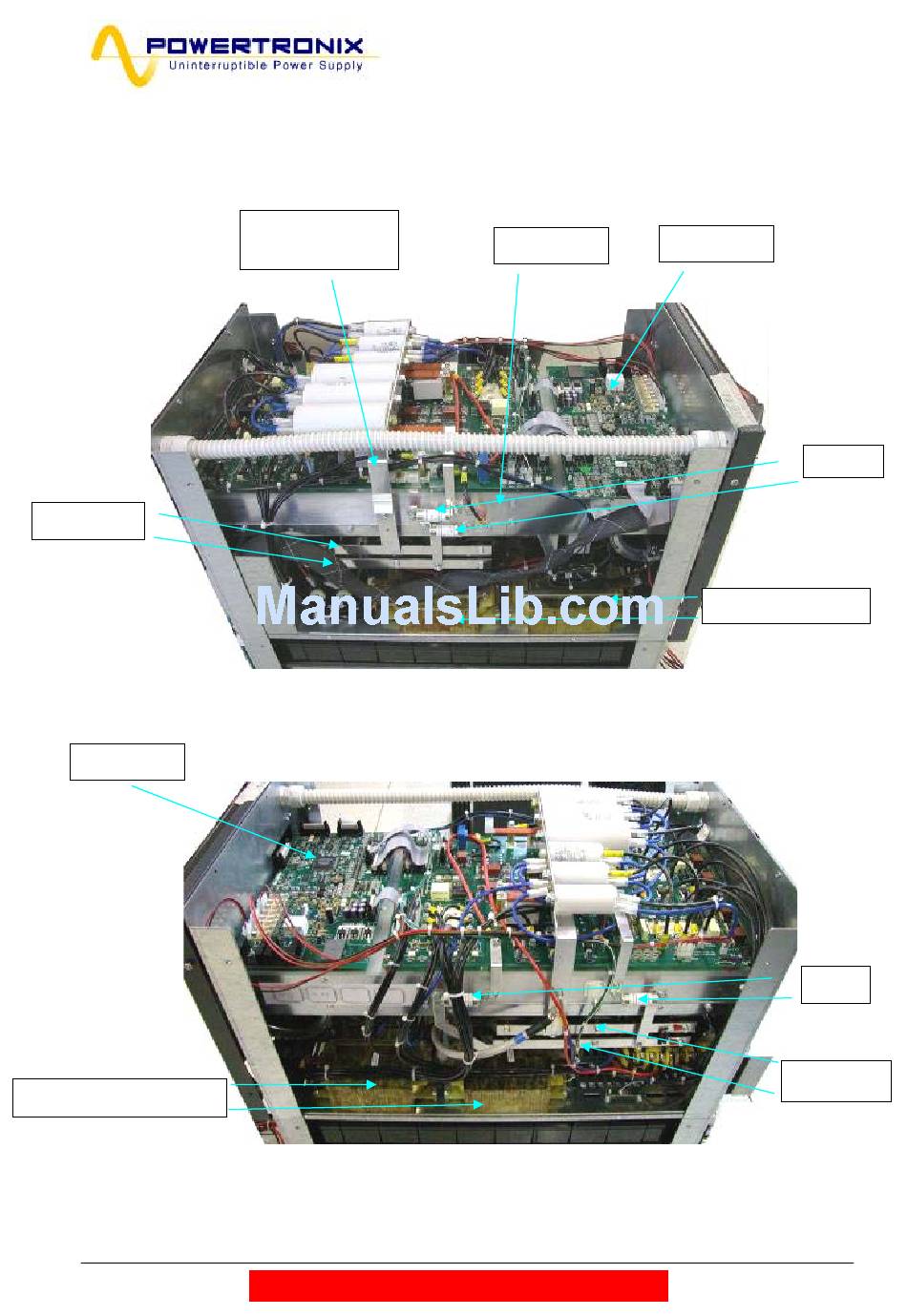

UPS-20-30KVA ELECTRONIC PARTS LAYOUT
LEFT SIDE
Fig. 6
NEUTRAL BAR
CS0153
HEATSINK
CONNECTION
Fuse
DC Busbar
Power Impedence
RIGHT SIDE
Fig. 7
CS0150
Fuse
DC Busbar
Power Impendence
Powertronix spa reserves the right to modify this document without notice
R&D – SERVICE MANUAL DT0488
