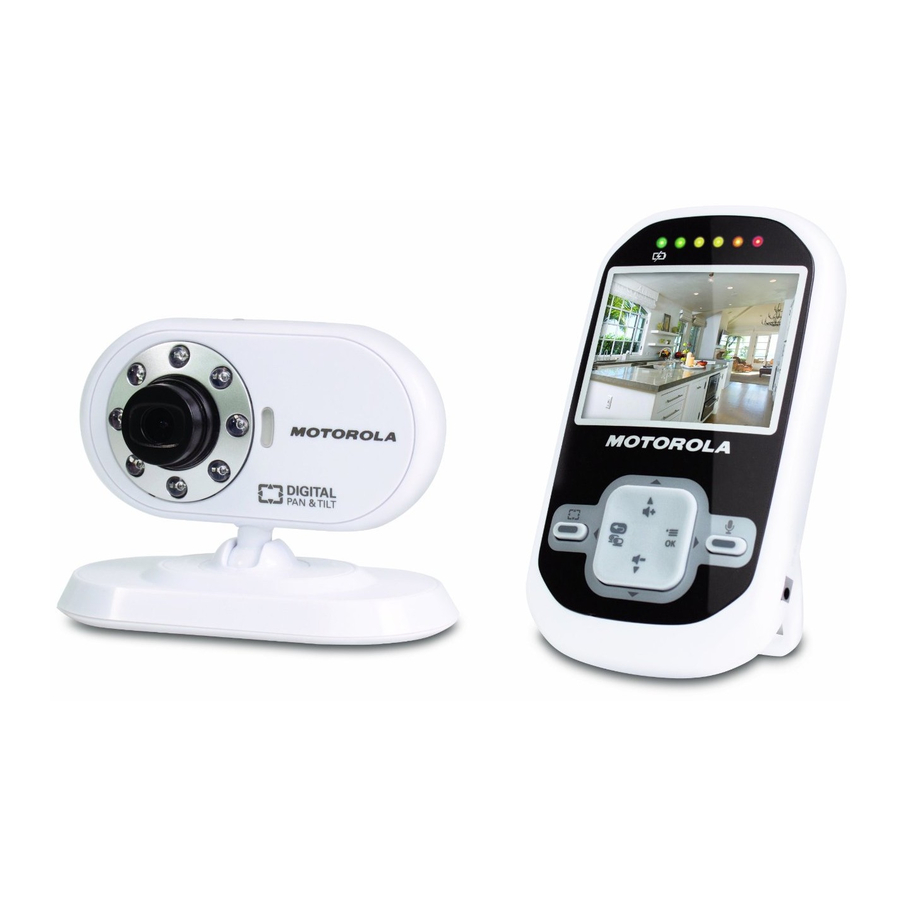

Motorola MBP26 Quick Start Manual

Hide thumbs

Advertisement

Quick Links

MBP26, MBP26/2, MBP26/3, MBP26/4 - Quick Start Guide
For a full explanation of all features and instructions, please refer to the User's Guide.
1 Setting up your digital baby monitor
A
Connecting power supply for the Baby unit
Fastening the cover for the Parent unit
C
WARNING:
STRANGULATION HAZARD - Keep the unit and adapter cord more than 1 meter from the cot and out of baby's reach.
NEVER place camera or cords within the cot. Secure the cord more than 1 meter away from baby's reach.
Never use extension cords with AC Adapters. Only use the AC Adapters provided.
• Connect the small plug
of the power adapter to
the baby unit and the
other end to the
electrical outlet.
• Only use the enclosed
adapter (6V DC /
500mA).
Small cross head or Flat
end screw driver.
B
Installing the battery pack for the Parent unit
Black
Red
D
Connecting power supply for the Parent unit
• Insert the wire tab of
the rechargeable
battery pack into the
contact slot as shown
above and fit the
battery pack into the
compartment.
• Connect the small plug
of the power adapter to
the parent unit and the
other end to the
electrical outlet.
• Only use the enclosed
adapter (6V DC /
500mA).
