Motorola MBP25 Quick Start Manual

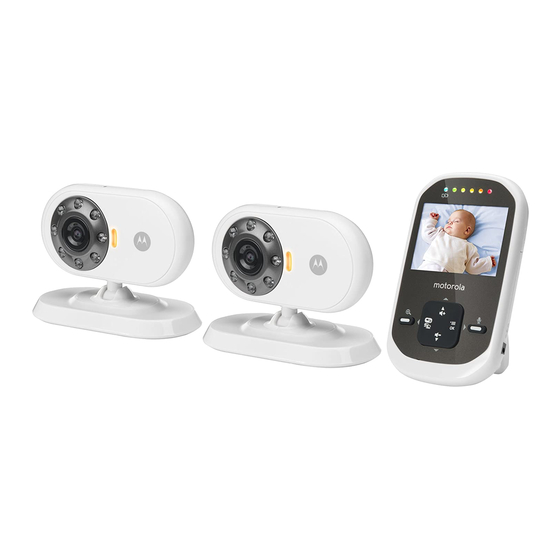

Digital video baby monitor
Hide thumbs

Advertisement

Quick Links

MODELS:
MBP25
MBP25/2
MBP25/3
MBP25/4
MBP25-B
MBP25-B2
WARNING:
Strangulation Hazard. Children have
STRANGLED in cords. Keep this cord
out of the reach of children (more than
3ft (1m) away). Never use extension
cords with AC Adapters. Only use the
AC Adapters provided.
QUICK START GUIDE
For a full explanation of all features and instructions, please refer to the User's Guide.
1. Setting up your Digital Video Baby Monitor
A. Connecting the power supply for the Baby unit
1. Connect the small
2. Only use the
C. Fastening the cover for the Parent unit
Small cross head or Flat
end screw driver.
B. Installing the battery pack for the Parent unit
plug of the power
adapter to the baby
Black
unit and the other
end to a suitable
Red
mains power socket.
enclosed adapter
(6V DC/500mA).
D. Connecting power supply for the Parent unit
EU EN
• Insert the wire tab of the rechargeable
battery pack into the contact slot as
shown above and fit the battery pack
into the compartment.
• Connect the small plug of the power
adapter to the parent unit and the
other end to a suitable mains power
socket.
• Only use the enclosed adapter
(6V DC/500mA)
