Motorola MBP24 User Manual

Digital audio baby monitor
Hide thumbs

Advertisement

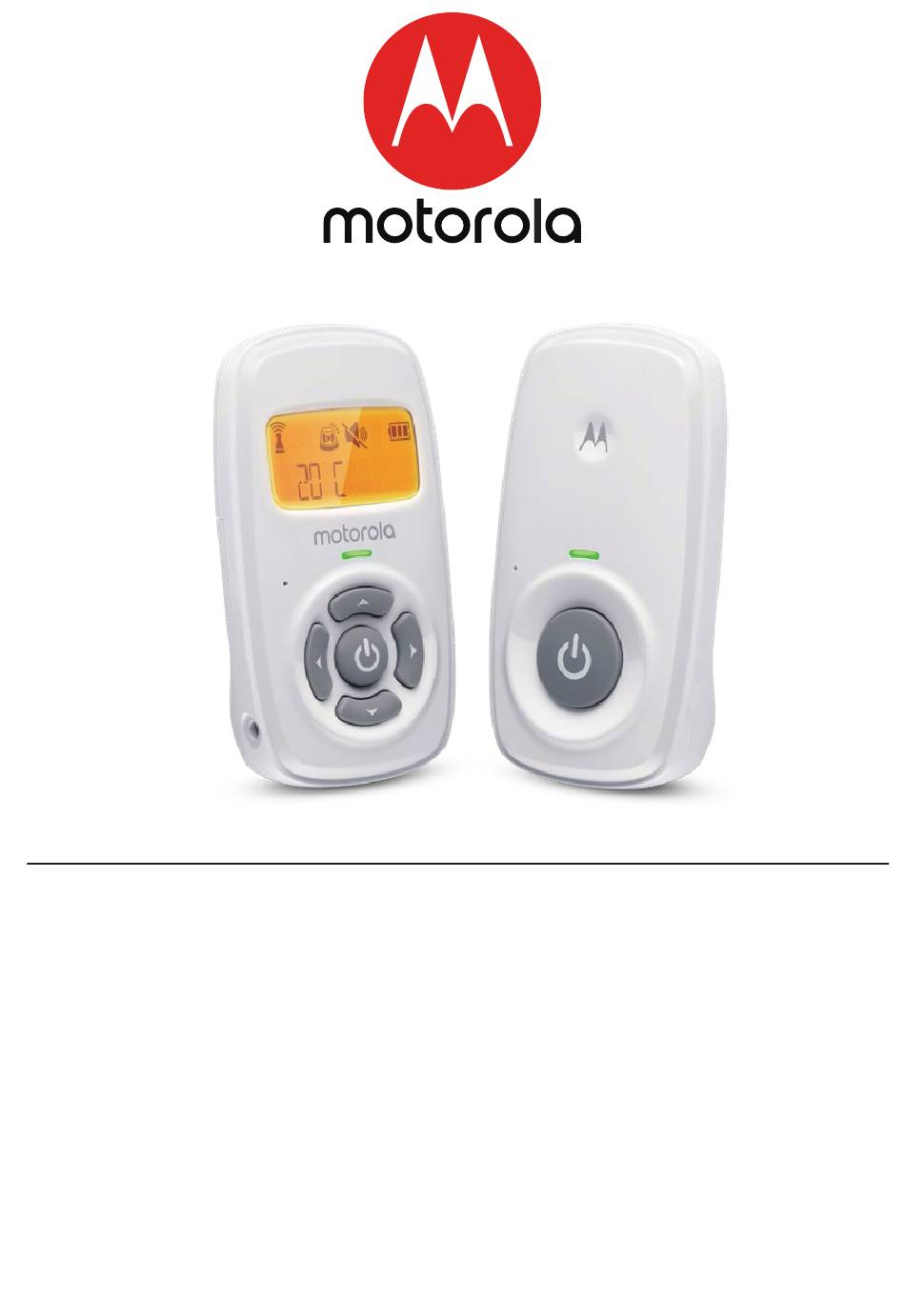

User's Guide
Digital Audio Baby Monitor
Models: MBP24, MBP24-2
The features described in this user's guide are subject to modifications without prior notice.

Advertisement

loading

  Related Manuals for Motorola MBP24

  Summary of Contents for Motorola MBP24

  • Page 1 User’s Guide Digital Audio Baby Monitor Models: MBP24, MBP24-2 The features described in this user’s guide are subject to modifications without prior notice.
  • Page 2 Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt as proof of warranty status.
  • Page 3 Overview of the Parent Unit LCD Display 6. RIGHT button > 2. Microphone Press to cancel settings and 3. UP button + go back to the previous level. Press to increase speaker Press and hold to talk through volume. While in a menu, to be baby unit.
  • Page 4 Overview of the Baby Unit Microphone Power indicator Power button 0 On when the baby unit is Press and hold to power on/off powered on. the baby unit. Power jack Speaker Temperature sensor Important guidelines for installing your digital baby monitor •...
  • Page 5: Table Of Contents

    Table of contents Safety Instructions ................6 2. Getting Started ................9 2.1 Baby unit power supply ................ 9 2.2 Parent unit battery installation ............10 2.3 Parent unit power supply ..............11 3. Using Your Digital Audio Baby Monitor ........12 3.1 Power on or off the Baby Unit ............12 3.2 Power on or off the Parent Unit............
  • Page 6: Safety Instructions

    1. Safety Instructions WARNING: Strangulation Hazard. Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 1metre away). Never use extension cords with AC Adapters. Only use the AC Adapters provided. Safety Instructions Table of contents...
  • Page 7 BABY MONITOR SET UP & USE: • Determine a location for the BABY UNIT that will allow you to hear your baby in his/her cot. • Place the BABY UNIT on a flat surface, such as a dresser, bureau, or shelf or mount the Unit to a wall securely using the keyhole slots under the stand.
  • Page 8 • Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack. • Only insert a battery pack of the same type. • Do not touch the plug contacts with sharp or metal objects. •...
  • Page 9: Getting Started

    2. Getting Started Baby unit power supply • Insert the DC plug of the power adapter into the DC jack on the side of the baby unit, as shown. • Connect the other end of the power adapter to a suitable mains power socket.
  • Page 10: Parent Unit Battery Installation

    Parent unit battery installation The rechargeable battery pack supplied should be installed so that the Parent Unit can be moved without losing the link with the Baby Unit. Charge the parent unit before using it for the first time and when the parent unit indicates the battery is low.
  • Page 11: Parent Unit Power Supply

    Parent unit power supply • Insert the DC plug of the power adapter into the DC jack on the side of the parent unit. • Connect the other end of the power adapter to a suitable mains power socket, • The parent unit will turn on. NOTE Only use the power adapter provided (DC6/400mA).
  • Page 12: Using Your Digital Audio Baby Monitor

    3. Using Your Digital Audio Baby Monitor Please read these instructions carefully, and be aware that this digital audio baby monitor is only intended as an aid. It is not a substitute for responsible and proper adult supervision. Power on or off the Baby Unit •...
  • Page 13: Select Display Language For The Parent Unit

    3.4 Select display language for the parent unit Choose from 6 languages. • Press twice on the parent unit when is not in use. < • Press + or - to select ENGLISH, FRANCAIS , ESPANOL, DEUTSCH, ITALIANO or PORTUGUES. •...
  • Page 14: Disposal Of The Device (Environment)

    4. Disposal of the Device (environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user guide and/or box indicates this.
  • Page 15: Cleaning

    5. Cleaning Clean your Digital Audio Baby Monitor with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents. Cleaning and care • Do not clean any part of the Digital Audio Baby Monitor with thinners or other solvents and chemicals - this may cause permanent damage to the product which is not covered by the warranty.
  • Page 16: Troubleshooting

    6. Troubleshooting Power/Link Indicator on the parent unit does not come on • Check whether the parent unit is powered on. • Check whether the supplied battery pack is correctly installed and that they are not drained. • Recharge the parent unit by connecting it to the mains power. Power/link indicator on the parent unit flashes and ‘Not Linked’...
  • Page 17 Cannot hear sound or baby cry from the parent unit • The volume level in the parent unit may be set too low. Increase the volume level of the parent unit. Refer to section 3.3 For volume level settings. • The parent unit and the baby unit may be out of range with each other.
  • Page 18: General Information

    (*Calls cost 7p per minute plus your telephone company's access charge) Consumer Products and Accessories Limited Warranty (“Warranty”) Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International LTD ("BINATONE"). What Does this Warranty Cover? Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product ("Product") or certified accessory...
  • Page 19 WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE...
  • Page 20 MOTOROLA or BINATONE, are excluded from coverage. Use of Non-Motorola branded Products and Accessories. Defects or damage that result from the use of Non-Motorola branded or certified Products or Accessories or other peripheral equipment are excluded from coverage.
  • Page 21 (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola branded housings, or parts, are excluded from coverage. Communication Services. Defects, damages, or the failure of...
  • Page 22: Technical Specifications

    8. Technical Specifications BABY UNIT Frequency 1881.792 - 1897.344 MHz Channels Operating 10°C - 40°C temperature Power supply adapter Input 100 - 240VAC, 50/60Hz, 200mA Rating Output 6VDC, 400mA Technical Specifications...
  • Page 23 PARENT UNIT Frequency 1881.792 - 1897.344 MHz Channels Operating 10°C - 40°C temperature Battery rating 2.4V 750mAh Ni-MH battery pack Power supply adapter Input 100 - 240VAC, 50/60Hz, 200mA Rating Output 6VDC, 400mA Specifications are subject to change without prior notice. Technical Specifications...
  • Page 24 Manufactured, distributed or sold by Binatone Electronics International LTD., official licensee for this product. MOTOROLA and the Stylised M Logo, are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners. © 2019 Motorola Mobility LLC.

This manual is also suitable for:

Mbp24-2
