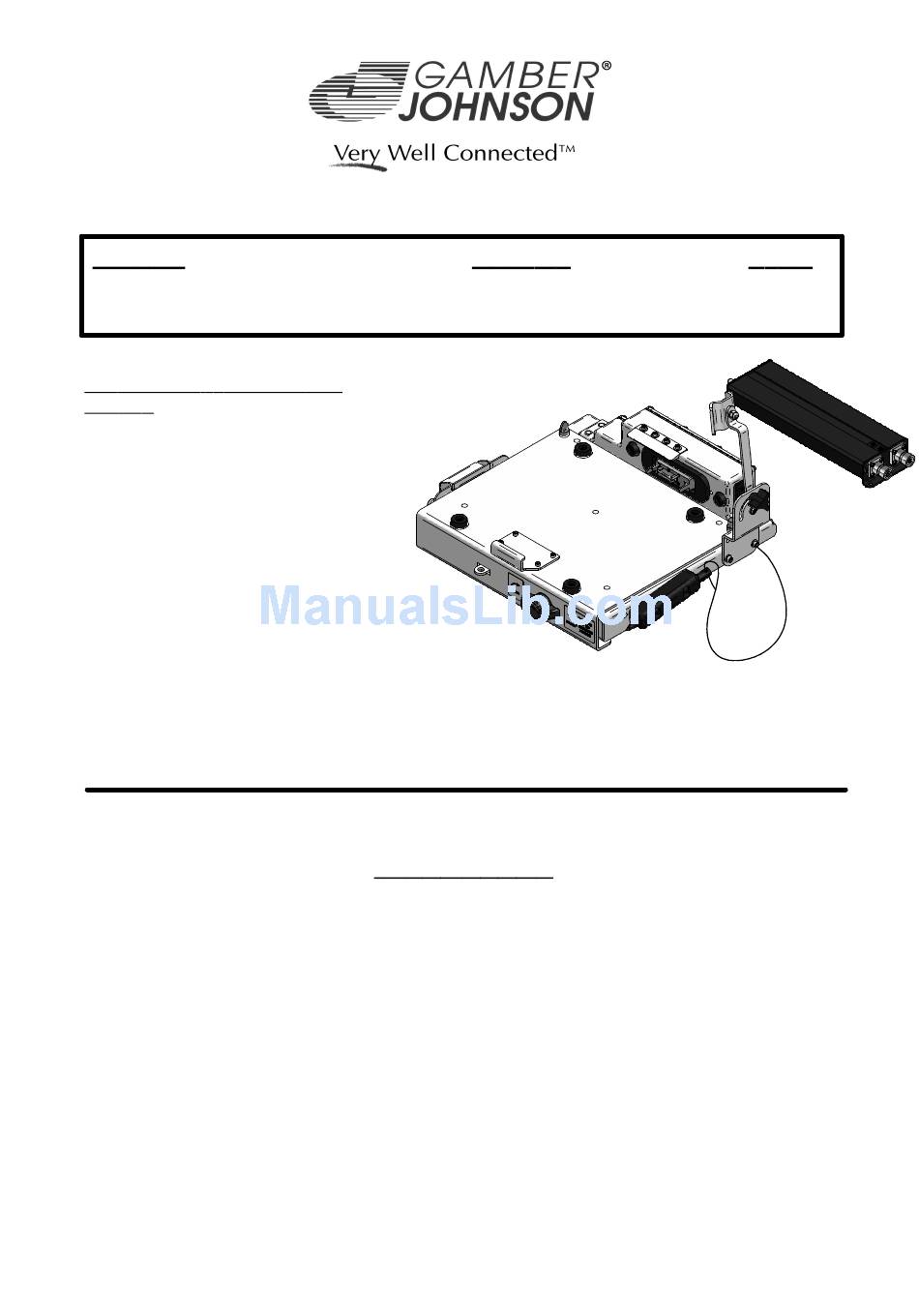

INSTALLATION INSTRUCTIONS
Product
7160-0377

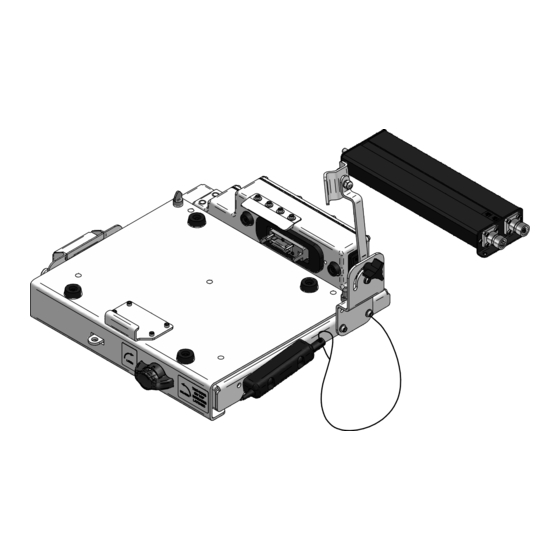

Recon CF31 Military Docking Station
This document is for the following
products:
7160-0377 = Recon CF31 Military
Docking Station.
The dock will hold a Panasonic CF30 or
CF31 computer. A CF29 computer can
be mounted with the addition of a .06"
shim under the front hook.
*This document is for the docking station only. For instructions on features, set-up and operation
of the CF31 computer, please refer to the manuals provided by Panasonic with the computer.
** This docking station is designed to be used with a variety of Gamber-Johnson mounting
systems. Installation instructions for other Gamber-Johnson products are provided with each
individual product.
IMPORTANT SAFETY INFORMATION for
Safety is dependent on the proper installation and servicing of this docking station. It is
important to read and follow all instructions before installing this product.
To properly install a Gamber-Johnson docking station you must have a good understanding
of automotive electrical procedures and systems, along with proficiency in the installation
and service of aftermarket vehicle equipment.
There are no adjustments required at any time of the electrical components within the
docking station. Opening the port replication housing will void the product warranty.
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© copyright 2010 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Revision
Rev. A
INSTALLERS
Form
INST-578
Printing Spec: PS-001
Advertisement
Related Manuals for Gamber Johnson Recon CF31 Military
Summary of Contents for Gamber Johnson Recon CF31 Military
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS Product Revision Form 7160-0377 Rev. A INST-578 Recon CF31 Military Docking Station Printing Spec: PS-001 This document is for the following products: 7160-0377 = Recon CF31 Military Docking Station. The dock will hold a Panasonic CF30 or CF31 computer. A CF29 computer can be mounted with the addition of a .06"... -
Page 2: Pre-Installation Recommendations
During Installation DO NOT connect this docking station to the vehicle battery until: 1. ALL other electrical connections are made 2. Mounting of ALL components is complete 3. VERIFICATION that no shorts exist in the entire system DO NOT install equipment or route wiring or chords in the deployment path of any air bag. - Page 3 1/4-20unc threaded inserts 65-85 in/lbs. marked "A" for mounting to Gamber Johnson standard mounting equipment Gamber Johnson DS-Clevis mounted to the rear set of mount holes (This is the recommended mounting location because the center of gravity is centered over the mount)
- Page 4 2.00 1.69 2.047 5.00 5.00 1.24 1/4-20unc threaded inserts marked "B" for mounting to Gamber Johnson 7160-0439 wire rope isolator assembly Wire Rope Isolator Assembly Weight = 3.15 lbs Gamber Johnson Wire Rope Isolator Assembly mounted to the rear set of isolator mounting holes...
- Page 5 Dock and Power Supply Dimensions 1.04 7160-0377 Recon CF31 Military Docking Stattion Weight = 11 lbs 13.66 11.74 5.46 12.49 2.33 7.18 1.43 8.20 3.92 4.20 2.44 7.86 10.47 10.00 J6 - Female connector 9.60 (Out-put power to dock) 1.25 3.00...
- Page 6 Features Screen Support (Shipped unattached - has Option of being mounted to either side of the dock by customer) Docking Connector Tethered Connector Cover (Has option of being relocated to other side of dock by customer) Power Switch Note: attach Slide Plate screen support and stylus with...
- Page 7 Connector Data cables are not supplied with the docking station NOTES: 32V - 10Amp 1. It is recommended to install a in-line fuse connected as close to the battery or power source as possible. 2. The estimated power draw on the 28Vdc vehicle supply is 3 Amps.
- Page 8 Connector Data cables are not supplied with the docking station MIL STD 461F was achieved by using completely shielded cables. Cables containing USB signals must not exceed 5 meters in length. J3 = DATA CABLE J4 = DATA CABLE AMPHENOL CONNECTOR AMPHENOL CONNECTOR #91569783-35J #91-569783-35S...
- Page 9 Pin Acronyms List for 7160-0377 1. J1 pins 1, 5 and 6 = Input Power (+28Vdc) 2. J1 pins 2, 3 and 4 = Input Power Ground 3. J2 pins 1-14 and 21 = Video Output 4. J2 pins 15-17 and 22 = USB/Ethernet Output USB_TXN = Transmit Data Negative Signal b.
- Page 10 Installing the CF31 computer into the dock Step 1: Make sure the sliding door, located on the back surface of the computer, has been opened to expose the computers' docking connector. Step 2: Make sure the power switch on the dock is in the "OFF" position.
